1986 Yamaha YTM225DRS Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

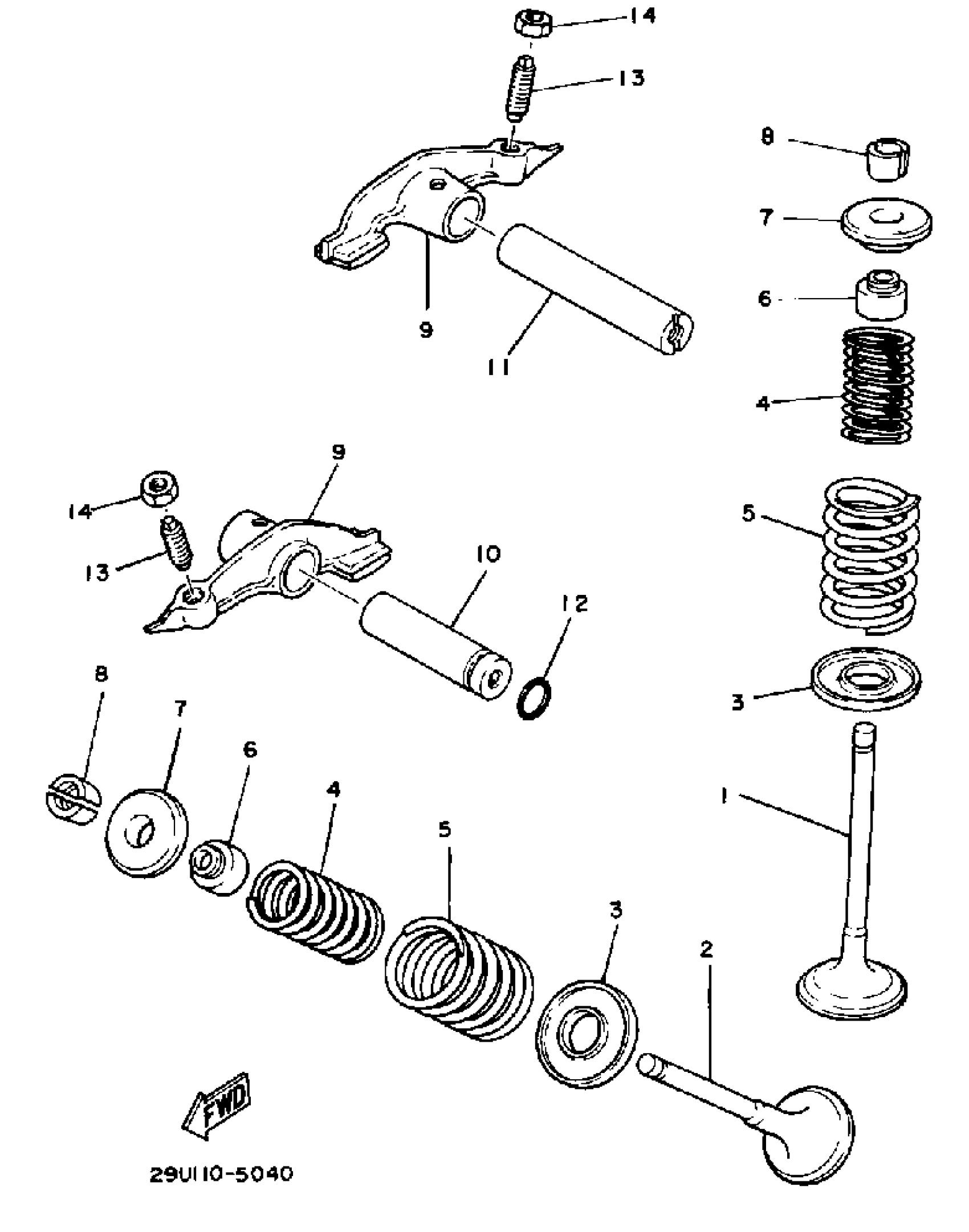

1986 Yamaha YTM225DRS Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

5H0-12111-02-00

1

$34.99

In stock

2

VALVE, EXHAUST

5H0-12121-01-00

1
Out of stock

3

SEAT, VALVE SPRING

4G0-12116-01-00

1

$13.06

In stock

4

SPRING, VALVE INNER

4G0-12113-01-00

1

$14.25

In stock

5

SPRING, VALVE OUTER

4G0-12114-01-00

1

$19.49

In stock

6

SEAL, VALVE STEM

5H0-12119-00-00

1

$14.72

In stock

7

RETAINER, VALVE SPRING

4G0-12117-00-00

1

$20.45

In stock

8

COTTER, VALVE

4G0-12118-00-00

1

$6.72

In stock

9

ARM, VALVE ROCKER

29U-12151-01-00

—
Out of stock

10

SHAFT, ROCKER

5H0-12156-00-00

1

$33.23

In stock

11

SHAFT, ROCKER

5H0-12146-00-00

1

$25.22

In stock

12

O-RING (1J7)

93210-09350-00

1

$5.82

In stock

13

SCREW, VALVE ADJUSTING

2NX-12159-00-00

1

$10.23

In stock

14

NUT HEXAGON 371121580000

90170-06128-00

1

$6.17

In stock
