1986 Yamaha YTM225DRS Crankcase Diagram

← All diagrams

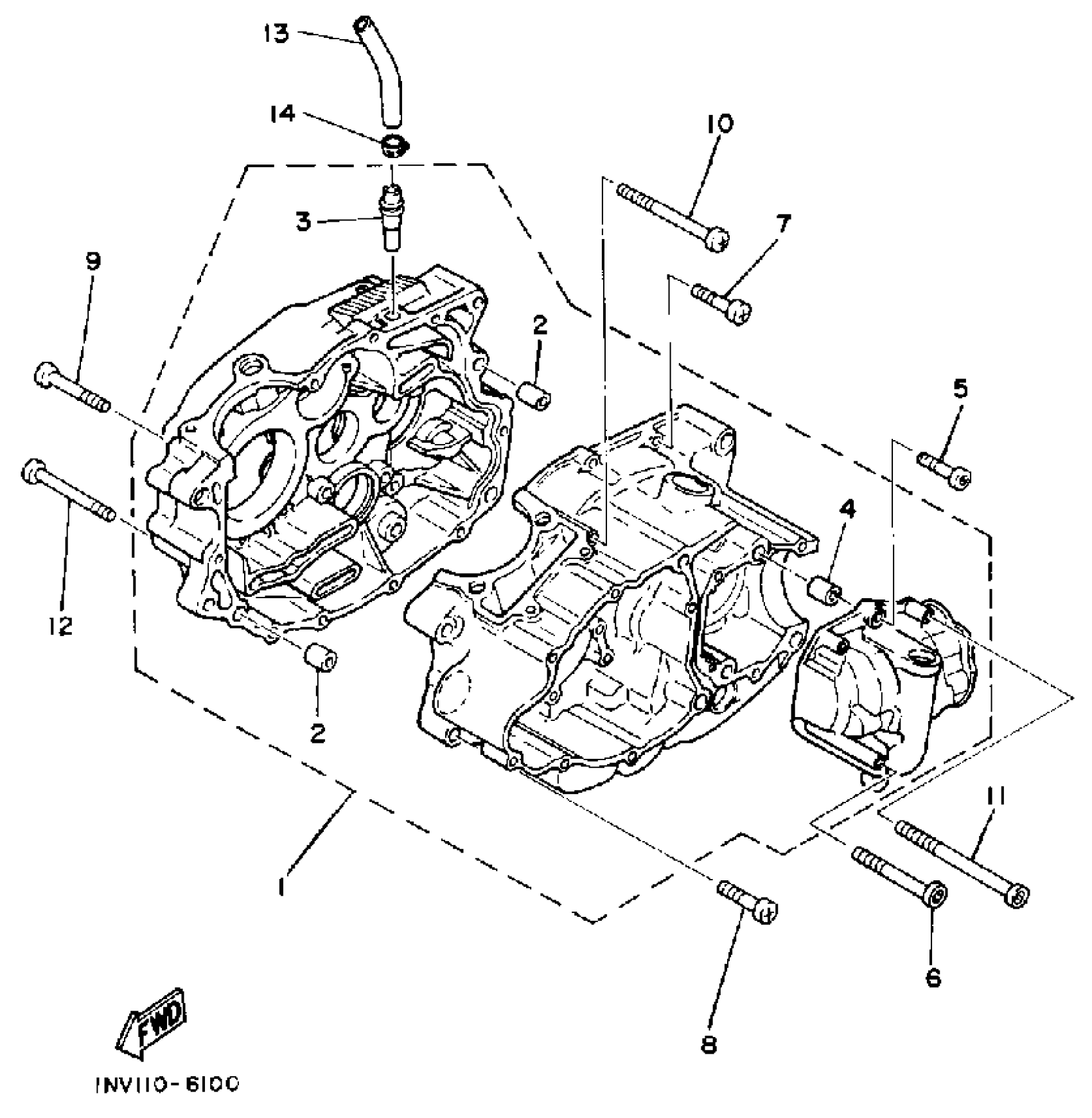

Find the part on the Crankcase diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(1NV-15100-00-00)

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

PIPE, BREATHER 2

59V-11167-00-00

—

$10.31

In stock

4

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

5

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

6

BOLT, SOCKET

91317-06085-00

—

$4.11

In stock

7

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

8

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

9

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

10

SCREW, PAN

98507-06085-00

1

$5.17

In stock

11

BOLT

91317-06160-00

1
Out of stock

12

SCREW PAN HEAD

98580-06575-00

1

$10.95

In stock

13

HOSE

90445-121E3-00

1
Out of stock

14

CLIP(3YX)

90467-13133-00

1

$5.13

In stock
← Camshaft-Chain Crankcase Cover 1 →
