1986 Yamaha YTM225DRS OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

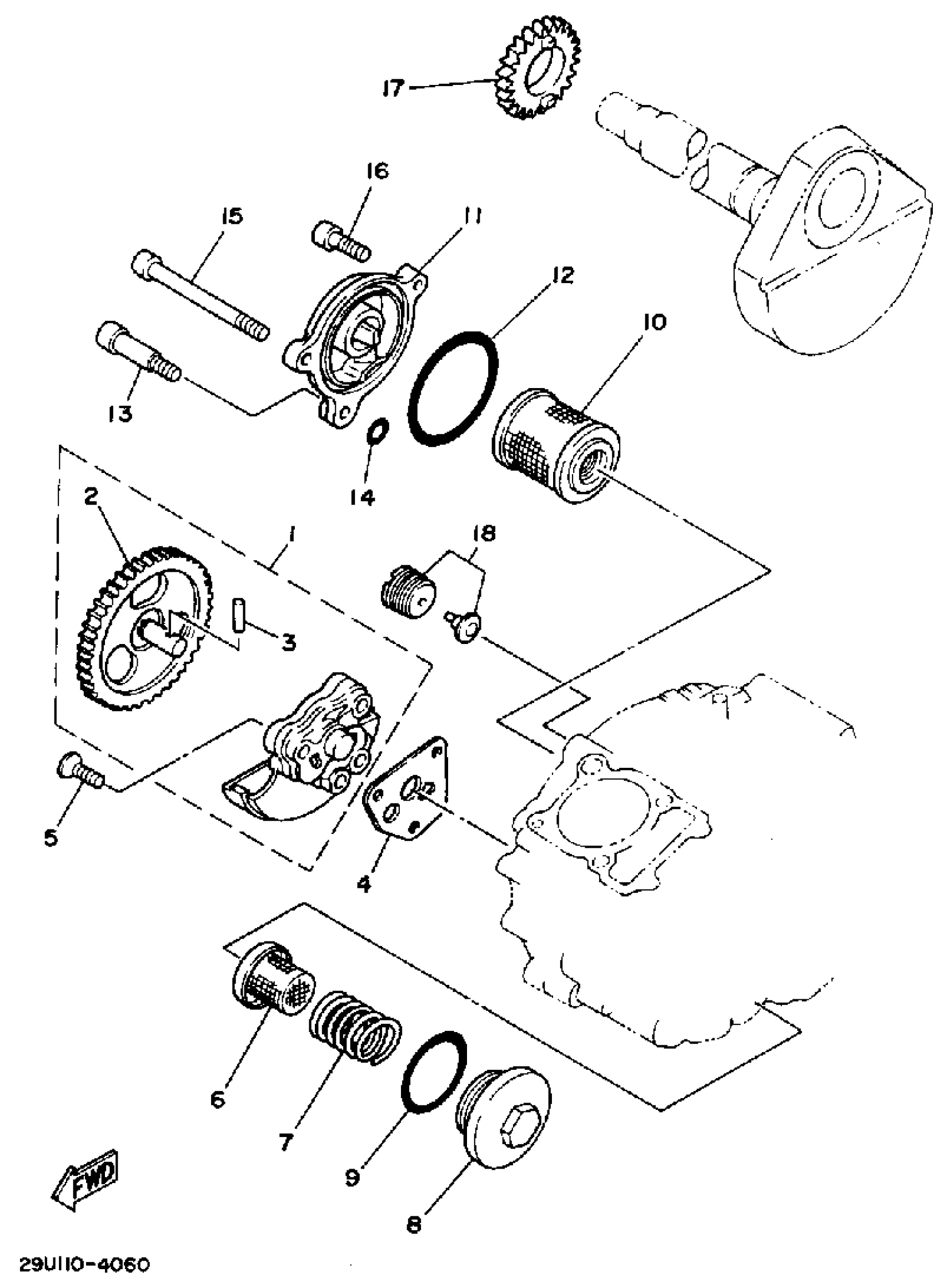

1986 Yamaha YTM225DRS OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

21V-13300-00-00

1
Out of stock

2

. GEAR, PUMP DRIVEN 2 (41T)

21V-13326-00-00

1
Out of stock

3

PIN,DOWEL (137)

93603-12030-00

1

$1.88

In stock

4

GASKET, PUMP COVER

3GD-13329-00-00

1

$6.46

In stock

5

SCREW, FLAT

98707-06030-00

1

$6.08

In stock

6

STRAINER, OIL

51Y-13411-00-00

1

$31.03

In stock

7

SPRING, COMPRESSION (3Y1)

90501-18576-00

1

$6.17

In stock

8

PLUG, DRAIN

5H0-15351-00-00

1
Out of stock

9

O-RING

93210-347A1-00

1

$5.72

In stock

10

OIL CLEANER ASSY

5H0-13440-09-00

1
Out of stock

11

COVER, OIL ELEMENT

15A-13447-01-00

—

$27.03

In stock

12

O-RING (341)

93210-54175-00

1

$11.80

In stock

13

BOLT (583 OIL DRAIN)

90109-06419-00

1

$6.17

In stock

14

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

1
Out of stock

15

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

16

BOLT,SOCKET

91317-06115-00

—

$13.62

In stock

17

GEAR, PUMP DRIVE

21V-13324-00-00

1
Out of stock

18

UNAVAILABLE IN PRICE BOOK

21V-12409-01-00

1
Out of stock
