1986 Yamaha YTM225DRS Cylinder Head Diagram

← All diagrams

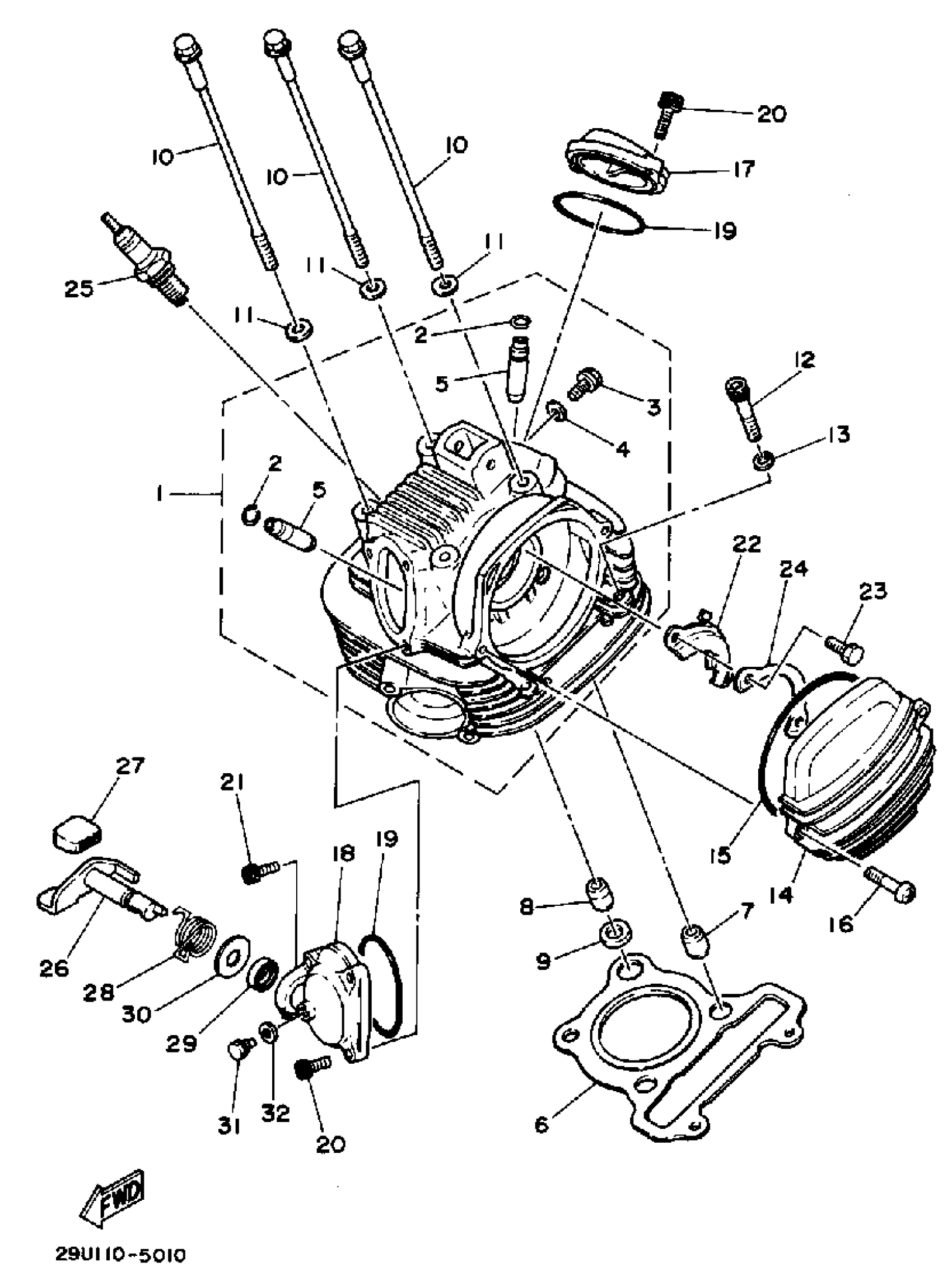

Find the part on the Cylinder Head diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSY

15A-11110-04-00

1

$677.42

In stock

2

CIRCLIP (4G0)

93440-10085-00

1

$6.17

In stock

3

SCREW

90153-06029-00

1

$8.06

In stock

4

. UNAVAILABLE IN PRICE BOOK

5H0-11122-10-00

1
Out of stock

4

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

6

GASKET, CYLINDER HEAD 1

59V-11181-00-00

1

$32.39

In stock

7

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

8

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

9

GASKET (29U)

90430-12186-00

1

$13.06

In stock

10

BOLT, FLANGE

90105-08160-00

1

$6.38

In stock

11

WASHER, PLATE

90201-080L7-00

1

$3.42

In stock

12

BOLT, SOCKET

91317-08045-00

—

$6.82

In stock

13

WASHER, PLATE(3LN)

90201-086M0-00

1

$6.86

In stock

14

COVER, CYLINDER HEAD SIDE 1

15A-11185-00-00

1

$62.37

In stock

15

O-RING (5H0)

93211-05471-00

1

$11.63

In stock

16

SCREW, PAN

98517-06020-00

—
Out of stock

17

COVER, CYLINDER HEAD SIDE 2

15A-11186-00-00

—

$33.25

In stock

18

COVER, CYLINDER HEAD SIDE 3

21V-11187-01-00

1
Out of stock

19

O-RING

93210-57634-00

—

$12.58

In stock

20

BOLT,SOCKET

91317-06018-00

—

$6.17

In stock

21

BOLT,SOCKET

91317-06018-00

—

$6.17

In stock

22

PLATE

5H0-1111F-00-00

—
Out of stock

23

BOLT (661)

97013-06012-00

—

$4.71

In stock

24

WASHER, LOCK (5H0)

90215-06184-00

—
Out of stock

25

D7EA NGK SPLUG 10PK

D7E-A0000-00-00

1

$4.20

In stock

26

CAM

24W-12288-00-00

1
Out of stock

27

COVER, LEVER

24W-12275-00-00

1
Out of stock

28

SPRING, TORSION

90508-12610-00

1
Out of stock

29

SEAL, OIL (30X)

93102-12321-00

—

$10.14

In stock

30

WASHER

90201-12588-00

—

$6.37

In stock

31

BOLT (583 TACHOMETER)

90109-06418-00

—
Out of stock

32

GASKET 256113960000

90430-06014-00

—

$7.23

In stock
