1986 Yamaha YTM225DRS Stand-Footrest Diagram

← All diagrams

Find the part on the Stand-Footrest diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

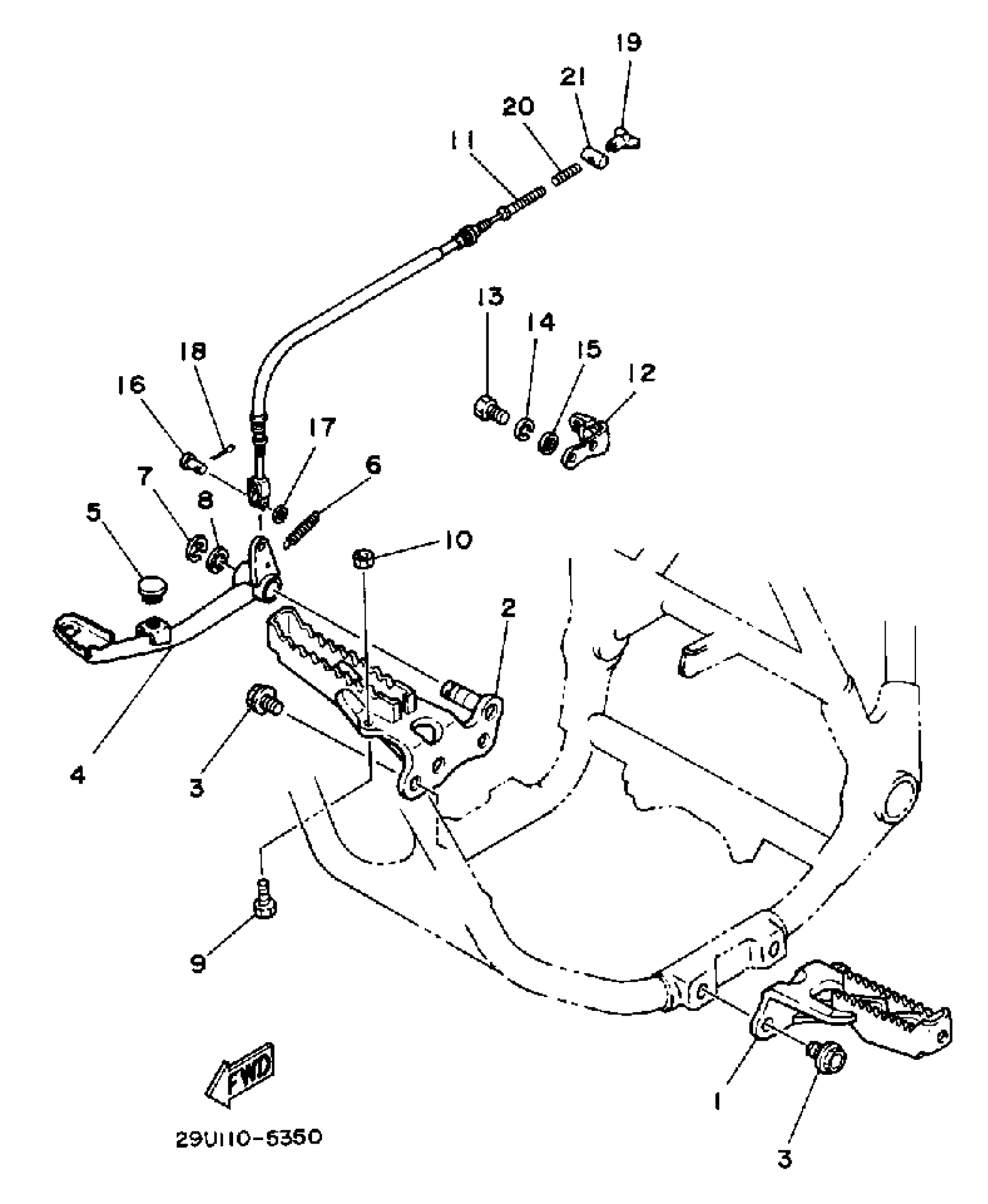

1986 Yamaha YTM225DRS Stand-Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST 1

29U-27411-11-00

1
Out of stock

2

FOOTREST 2

29U-27421-10-00

1
Out of stock

3

BOLT, FLANGE

95817-12020-00

—

$7.57

In stock

4

PEDAL, BRAKE

29U-27211-00-00

1
Out of stock

5

STOPPER, MAIN STAND

128-27114-00-00

1

$6.62

In stock

6

SPRING, TENSION (29U)

90506-16318-00

1
Out of stock

7

CIRCLIP (122)

93430-12008-00

1

$5.10

In stock

8

WASHER, PLATE (3X3)

90201-15797-00

1

$6.29

In stock

9

BOLT

90101-06595-00

1
Out of stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

11

CABLE, BRAKE

29U-26351-01-00

1
Out of stock

12

HOLDER, CABLE

29U-21161-00-00

1
Out of stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

16

PIN, CLEVIS (3X3)

90240-06076-00

—

$6.17

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

PIN, COTTER

91490-20025-00

—

$1.31

In stock

19

NUT, AJUSTING

20E-26343-00-00

—

$22.28

In stock

20

SPRING, COMPRESSION (29U)

90501-10782-00

—
Out of stock

21

PIN 1562723700

90249-12008-00

—

$4.70

In stock
