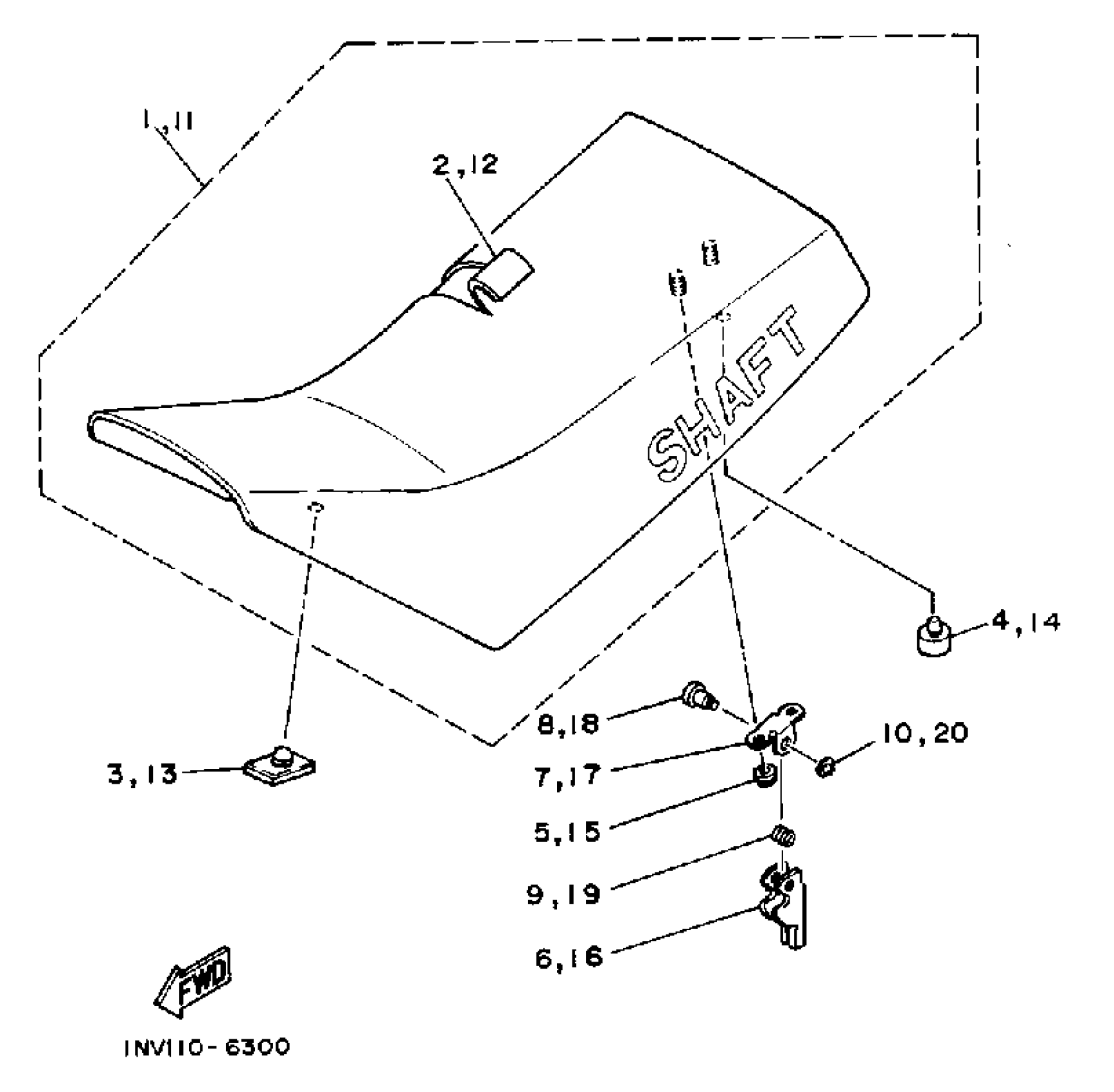

Find the part on the Seat diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSY

3GC-24710-00-00

1
Out of stock

2

COVER,SINGLE SEAT

3GC-24711-00-00

1
Out of stock

3

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock

4

STOPPER, MAIN STAND

371-27114-00-00

1

$5.80

In stock

5

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

6

LEVER, SEAT

29U-24776-00-00

—

$13.14

In stock

7

BRACKET, SEAT LEVER

4K0-24775-00-00

—

$17.99

In stock

8

PIN

4K0-24774-01-00

—

$15.12

In stock

9

SPRING, TORSION (24W)

90508-20454-00

—
Out of stock

10

UNAVAILABLE IN PRICE BOOK

93403-04002-00

1
Out of stock

11

SINGLE SEAT ASSY

3GC-24710-00-00

1
Out of stock

12

COVER,SINGLE SEAT

3GC-24711-00-00

1
Out of stock

13

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock

14

STOPPER, MAIN STAND

371-27114-00-00

1

$5.80

In stock

15

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

16

LEVER, SEAT

29U-24776-00-00

—

$13.14

In stock

17

BRACKET, SEAT LEVER

4K0-24775-00-00

—

$17.99

In stock

18

PIN

4K0-24774-01-00

—

$15.12

In stock

19

SPRING, TORSION (24W)

90508-20454-00

—
Out of stock

20

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock
