1986 Yamaha YTM225DRS Frame Diagram

← All diagrams

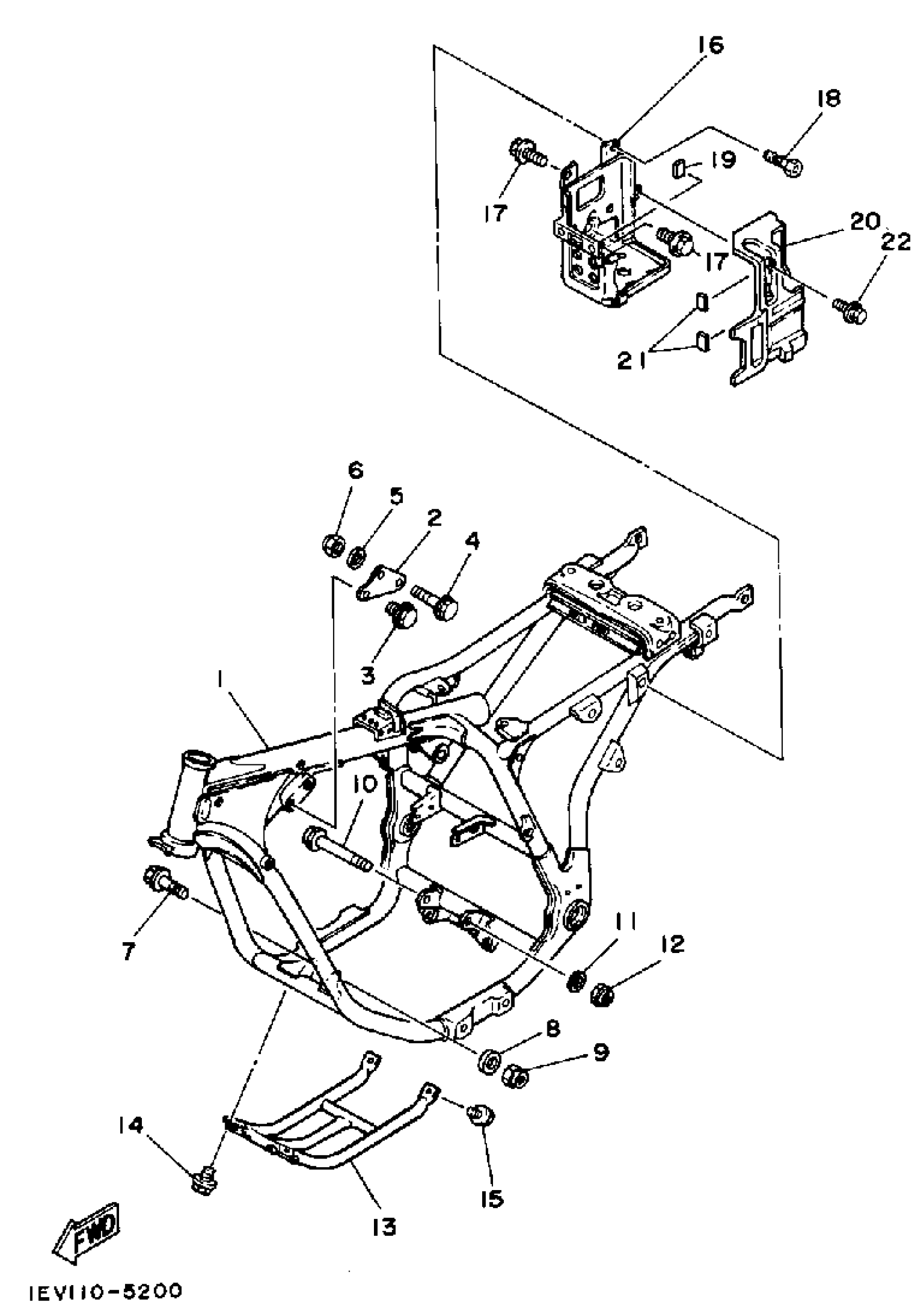

Find the part on the Frame diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP. (BLACK)

(1NV-21110-00-33)

1
Out of stock

1

FRAME COMP. (RED)

(1NV-21110-00-FH)

1
Out of stock

2

STAY, ENGINE 2

29U-21315-00-00

1
Out of stock

3

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

4

BOLT, FLANGE

95817-08050-00

1

$3.15

In stock

5

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

7

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

8

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

9

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

10

UNAVAILABLE IN PRICE BOOK

94812-08105-00

1
Out of stock

11

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

12

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

13

PROTECTOR, ENGINE

29U-21471-00-33

1
Out of stock

14

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

15

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

16

BOX

1EV-21170-00-00

1
Out of stock

17

UNAVAILABLE IN PRICE BOOK

94822-06012-00

1
Out of stock

18

SCREW (5G3)

90153-06034-00

—

$5.74

In stock

19

COVER 2

3FC-2139R-00-00

1
Out of stock

20

BOX

24W-21245-00-00

1
Out of stock

21

COVER 2

3FC-2139R-00-00

1
Out of stock

22

BOLT, WITH WASHER

90119-06152-00

—

$2.74

In stock
