1986 Yamaha YTM225DRS Side Cover Diagram

← All diagrams

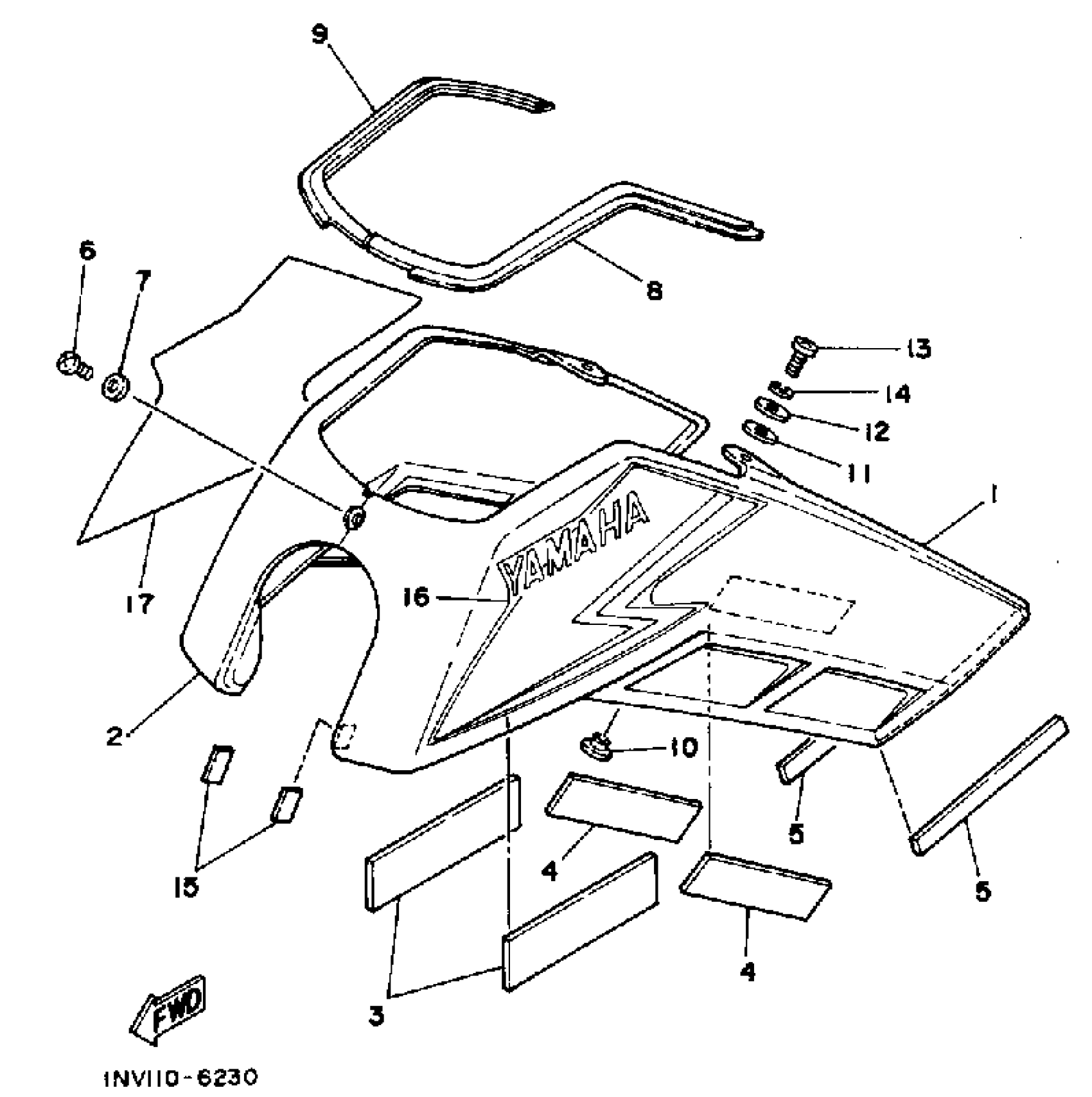

Find the part on the Side Cover diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SIDE COVER 1

29U-W2176-20-00

1
Out of stock

1

SIDE COVER 1

29U-W2176-30-00

1
Out of stock

2

SIDE COVER 2

29U-W2177-20-00

1
Out of stock

2

SIDE COVER 2

29U-W2177-30-00

1
Out of stock

3

DAMPER

(3X3-21746-00-00)

1
Out of stock

4

DAMPER

(29U-21746-00-00)

1
Out of stock

5

DAMPER 2

3FA-21639-00-00

—

$2.42

In stock

6

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

7

WASHER PLATE 256216150000

90201-06062-00

1

$7.09

In stock

8

MOLD, SIDE COVER 1

29U-2171L-00-00

1
Out of stock

9

MOLD, SIDE COVER 2

29U-2171M-00-00

1
Out of stock

10

COLLAR (3Y2)

90387-07789-00

1
Out of stock

11

UNAVAILABLE IN PRICE BOOK

90201-104G4-00

1
Out of stock

12

WASHER, PLATE

90201-06086-00

1
Out of stock

13

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

DAMPER

(29U-21717-00-00)

1
Out of stock

16

EMBLEM 1

1NV-21781-20-00

1
Out of stock

16

EMBLEM 1 (YAMAHA BLACK)

1NV-21781-30-00

1
Out of stock

17

EMBLEM 2

1NV-21782-20-00

1
Out of stock

17

EMBLEM 2 (YAMAHA BLACK)

1NV-21782-30-00

1
Out of stock
