1982 Yamaha YT175J Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

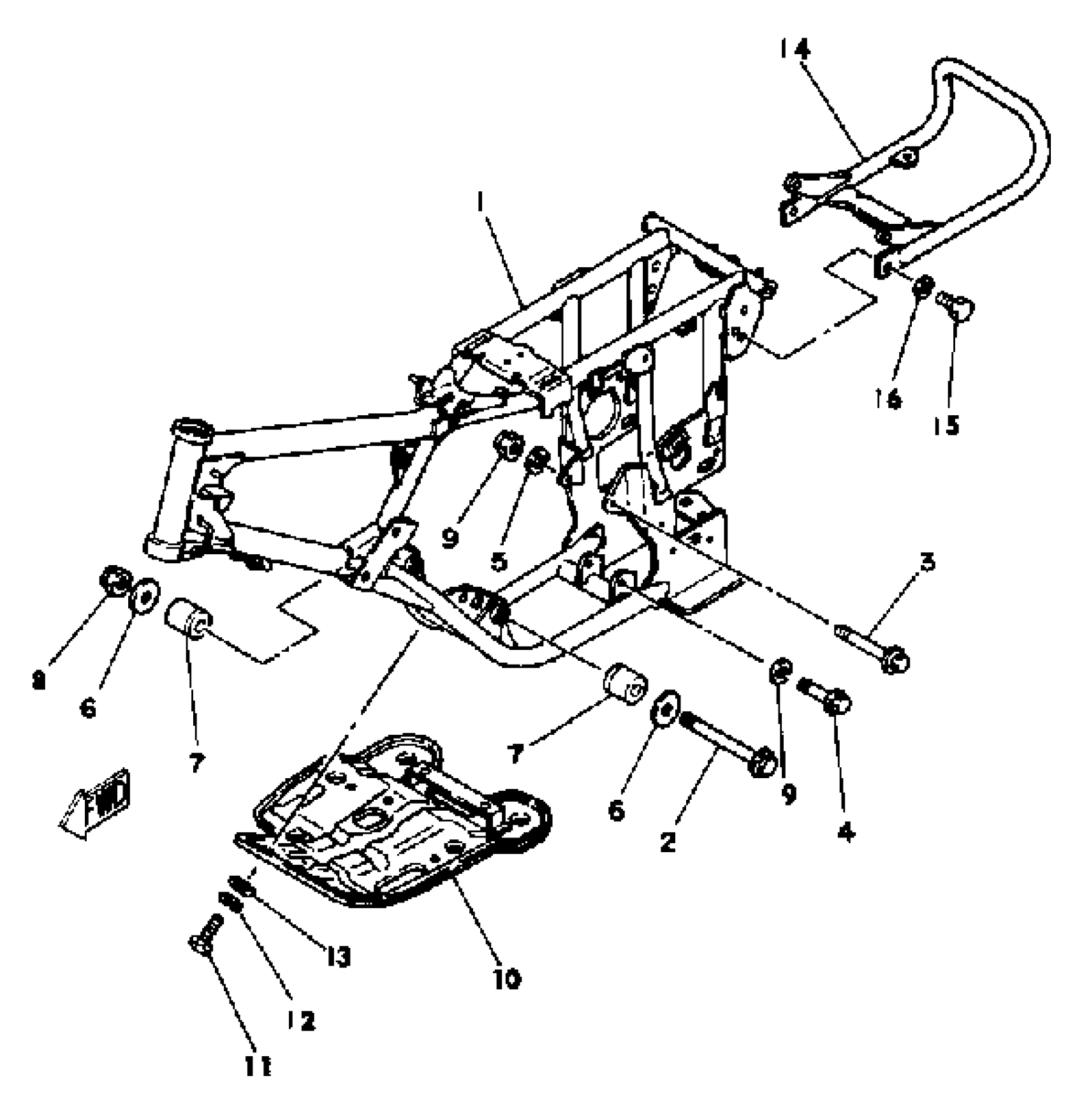

1982 Yamaha YT175J Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

5V7-21110-00-33

1
Out of stock

2

BOLT, WASHER BASED

90105-08206-00

1
Out of stock

3

BOLT, FLANGE

95817-08100-00

1

$4.32

In stock

4

BOLT

90105-10037-00

—

$7.51

In stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

WASHER, PLATE (3L7)

90201-08784-00

1

$2.54

In stock

7

DAMPER

90388-08003-00

1

$16.29

In stock

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

PROTECTOR, ENGINE

(5V6-21471-00-33)

1
Out of stock

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

14

BUMPER, REAR 1

5V6-28421-11-00

1
Out of stock

15

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
