1982 Yamaha YT175J Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

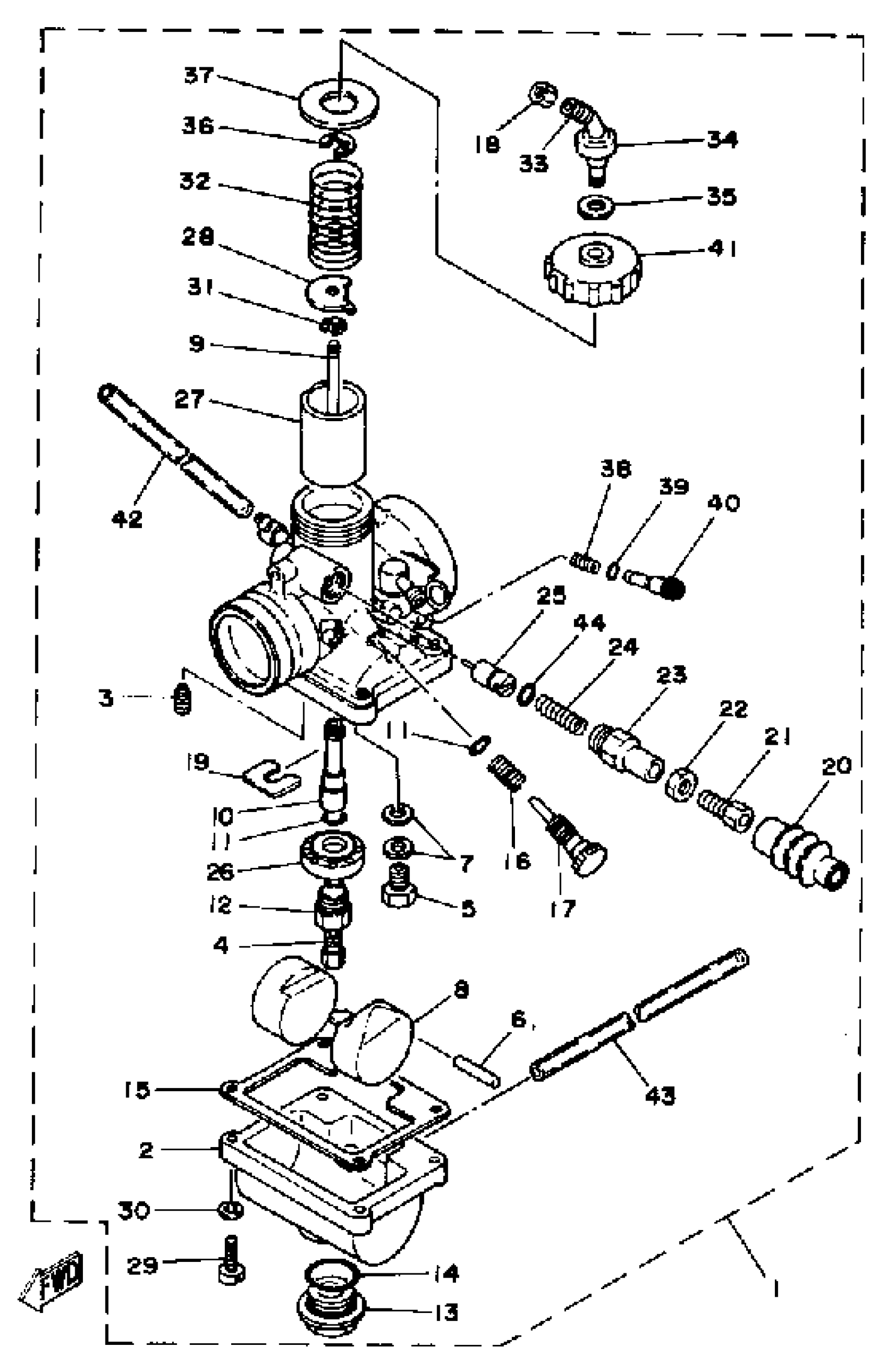

1982 Yamaha YT175J Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

O-RING (541)

558-14147-00-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

5V7-14101-00-00

1
Out of stock

2

BODY, FLOAT CHMBR 1

(2Y1-14181-04-00)

1
Out of stock

3

JET, PILOT (# 40)

260-14142-40-00

1
Out of stock

4

JET, MAIN #160

137-14143-32-00

1

$8.02

In stock

4

JET, MAIN (#165)

137-14143-33-00

1

$6.31

In stock

4

JET, MAIN #170

137-14143-34-00

1

$6.51

In stock

5

NEEDLE VALVE ASSY

168-14190-10-00

1
Out of stock

6

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

7

WASHER, VALVE SEAT

214-14195-00-00

1

$6.11

In stock

8

FLOAT

493-14185-00-00

1
Out of stock

9

. NEEDLE

2N3-14116-04-00

1
Out of stock

10

. NOZZLE, MAIN

4A7-14141-28-00

1
Out of stock

11

O-RING

214-14147-00-00

1
Out of stock

12

HOLDER

2N4-14145-00-00

—

$25.08

In stock

13

PLUG, SCREW

500-14115-00-00

—

$25.29

In stock

15

GASKET,FLOAT CHAMBER

304-14184-00-00

—
Out of stock

16

. SPRING, THROTTLE STOP

493-14133-00-00

1
Out of stock

17

. SCREW, THROTTLE

493-14122-00-00

1
Out of stock

18

CONNECTOR, BANJO

(127-14167-00-00)

1
Out of stock

19

PLATE

(5V7-14146-00-00)

1
Out of stock

20

. CAP

5V7-14169-00-00

1
Out of stock

21

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

22

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

23

. CAP, PLUNGER

5V7-14174-00-00

1
Out of stock

24

SPRING, PLUNGER

127-14135-00-00

—

$6.40

In stock

25

. PLUNGER, STARTER

5V7-14171-00-00

1
Out of stock

26

WASHER, MAIN JET

5V7-14153-00-00

—

$18.31

In stock

27

VALVE, THROTTLE

314-14112-25-00

—

$43.57

In stock

28

. STOPPER, CABLE

246-14132-00-00

1
Out of stock

29

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

30

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

31

CLIP

3FA-14137-00-00

—

$6.80

In stock

32

SPRING, THROTTLE VALVE

248-14131-00-00

—
Out of stock

33

CABLE ADJUST SCREW SET

10X-14106-00-00

—

$35.45

In stock

34

CAP

3X3-14169-00-00

—

$15.20

In stock

35

GASKET

509-14198-00-00

—

$16.34

In stock

36

CLIP

363-14137-00-00

—

$9.95

In stock

37

GASKET

2A6-14126-00-00

—
Out of stock

38

SPRING, AIR ADJUSTING

174-14134-00-00

—

$6.72

In stock

39

O-RING (493-CARB.)

354-14147-00-00

—

$13.06

In stock

40

AIR SCREW SET

10W-14104-00-00

—
Out of stock

41

. TOP, MIXING CHAMBER

2A6-14158-00-00

1
Out of stock

42

PIPE 1

3XV-14348-20-00

—

$17.31

In stock

43

PIPE 1

3XV-14348-20-00

—

$17.31

In stock

44

O-RING (371)

93210-04230-00

—
Out of stock
