1982 Yamaha YT175J Fuel Tank Diagram

← All diagrams

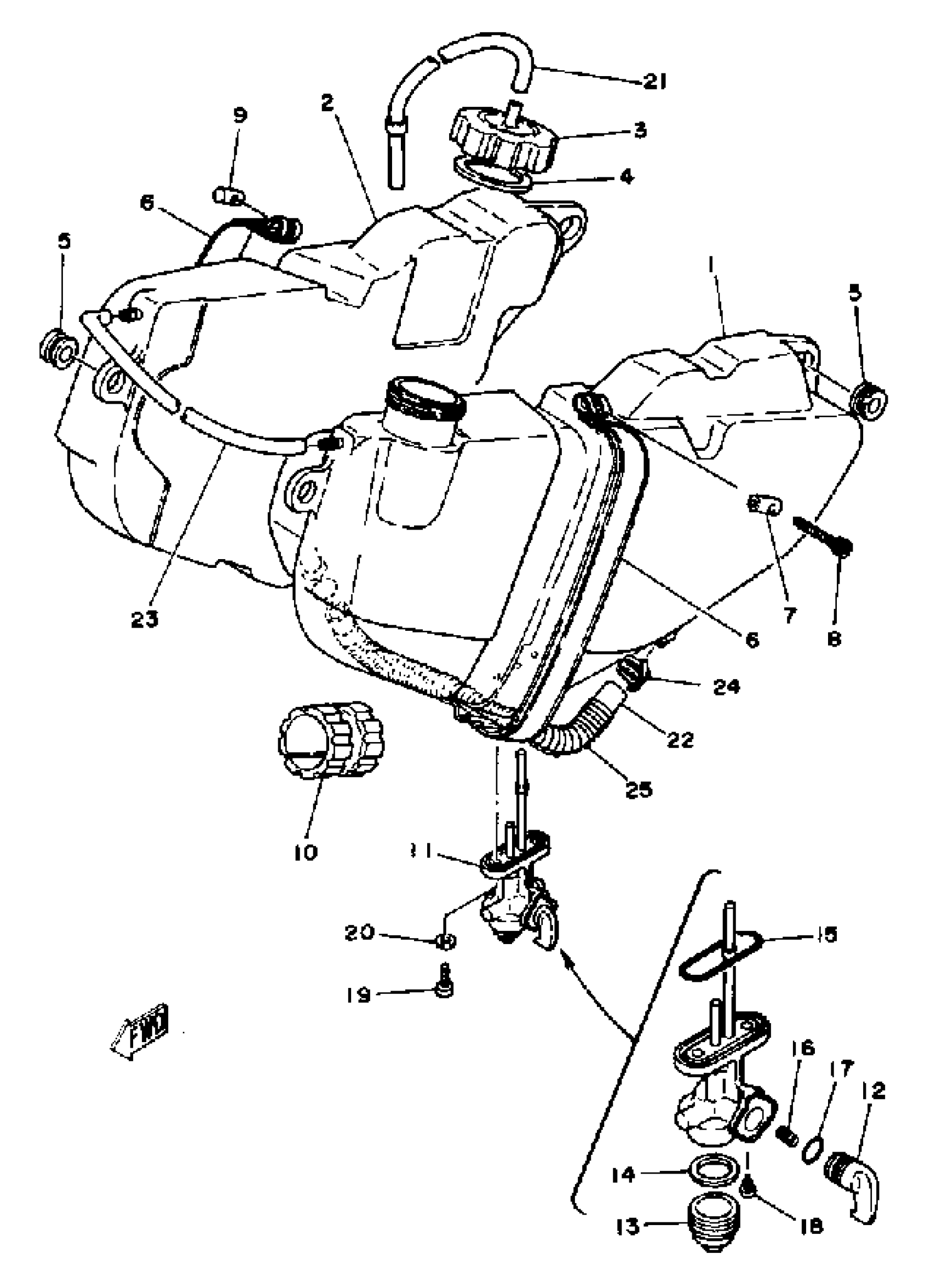

Find the part on the Fuel Tank diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha YT175J Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(5V7-24111-00-00)

1
Out of stock

2

FUEL TANK

(5V7-24211-00-00)

1
Out of stock

3

BODY, CAP

1W1-24611-00-00

1
Out of stock

4

PACKING, CAP

1W1-24612-00-00

1

$8.70

In stock

5

GROMMET(663)

90480-15064-00

1

$6.86

In stock

6

BAND, TNK FITTING 2

5V7-24199-00-00

1
Out of stock

7

CLAMP

806-24135-00-00

—

$3.20

In stock

8

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

9

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

10

DAMPER, LOCATING 1

3X3-24181-00-00

1
Out of stock

11

FUEL COCK ASSEMBLY 1

3X3-24500-00-00

1
Out of stock

12

. LEVER, COCK

1A0-24524-01-00

1
Out of stock

13

. CUP, FILTER

1A0-24521-01-00

1
Out of stock

14

GASKET, FILTER

498-24522-00-00

1

$33.15

In stock

15

GASKET, BODY

214-24512-00-00

1

$26.20

In stock

16

. SPRING

1A0-24529-01-00

1
Out of stock

17

O-RING

1A0-24512-00-00

—

$6.72

In stock

18

. SCREW, LEVER FITTING

619-24535-00-00

1
Out of stock

19

SCREW 256241430000

90149-06011-00

—

$1.58

In stock

20

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock

21

HOSE (L545)

90445-09361-00

1
Out of stock

22

HOSE

90445-16416-00

1
Out of stock

23

HOSE

90445-09222-00

1
Out of stock

24

CLIP

90468-08104-00

—

$2.72

In stock

25

SPRING, COMPRESSION

90501-08545-00

1
Out of stock
