1982 Yamaha YT175J Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

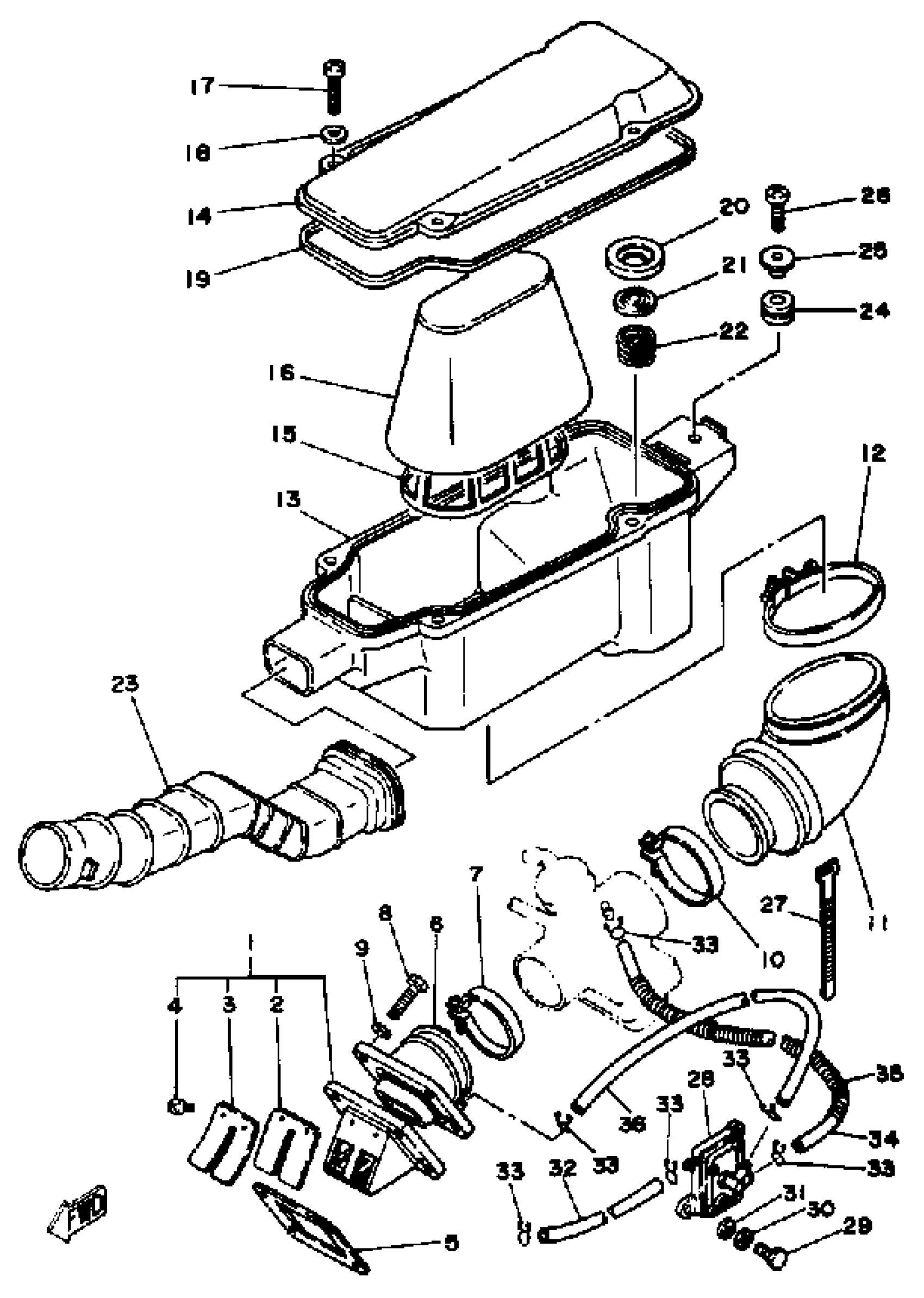

1982 Yamaha YT175J Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

10V-13610-01-00

1

$137.01

In stock

2

REED VALVE 1

10V-13613-01-00

1

$25.35

In stock

3

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET,VALVE SEAT

5V7-13621-10-00

1
Out of stock

6

JOINT, CARBURETOR 1

5V7-13586-00-00

1
Out of stock

7

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

11

JOINT, AIR CLNR 1

5V7-14453-00-00

1
Out of stock

12

CLAMP, HOSE

90460-01186-00

1
Out of stock

13

CASE, AIR CLEANER 1

5V7-14411-00-00

1
Out of stock

14

CAP, CLEANER CASE 1

5V7-14412-00-00

1
Out of stock

15

GUIDE, ELEMENT

5V7-14458-00-00

1
Out of stock

16

ELEMENT, AIR CLNR

5V7-14451-00-00

1
Out of stock

17

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

18

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

19

SEAL

1VJ-14462-00-00

—

$16.08

In stock

20

OIL SEAL, SO-TYPE

93104-18006-00

1
Out of stock

21

PLATE

3X3-14477-00-00

1
Out of stock

22

SPRING, COMPRESSION

90501-05588-00

1
Out of stock

23

DUCT

5V7-14437-00-00

1
Out of stock

24

GROMET (3X3)

90480-14229-00

—

$6.17

In stock

25

COLLAR(735)

90387-06033-00

—

$6.68

In stock

26

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

27

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

28

FUEL PUMP ASSY

5V7-24410-01-00

1
Out of stock

29

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

32

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

33

CLIP 101235600

90467-08003-00

—

$6.13

In stock

34

HOSE

(90445-09353-00)

1
Out of stock

35

SPRING, COMPRESSION (10L)

90501-08668-00

—
Out of stock

36

HOSE (L1500)

90445-090F6-00

—

$26.35

In stock
