1967 Yamaha YR1_2_2C (YR1) Headlight - Tailight Diagram

← All diagrams

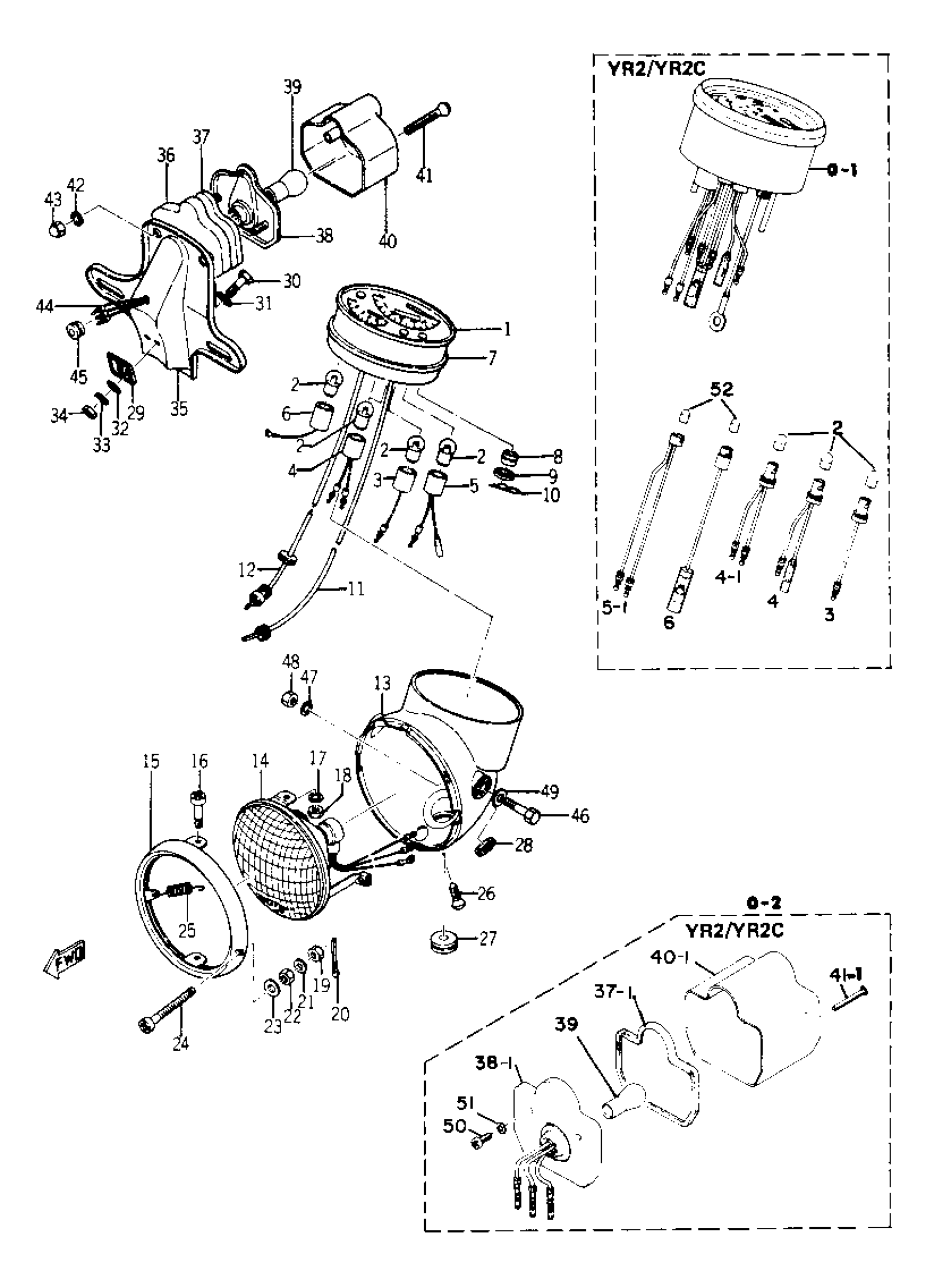

Find the part on the Headlight - Tailight diagram for your 1967 Yamaha YR1_2_2C (YR1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha YR1_2_2C (YR1) Headlight - Tailight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS, SPEEDOMETER

(156-83511-10-00)

1
Out of stock

1

SPEEDOMETER ASSEMBLY

(168-83510-71-00)

1
Out of stock

1

SOCKET, FLASHER

(168-83538-70-00)

1
Out of stock

1

BASE, TAILLIGHT

(168-84711-60-00)

1
Out of stock

1

SEAT, BASE

(168-84712-60-00)

1
Out of stock

1

. SCREW, RIM ADJUSTING

3AA-84331-00-00

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

2

TAILLIGHT UNIT ASSEMBLY

(168-84710-61-00)

1
Out of stock

3

SOCKET, METER

(168-83536-20-00)

1
Out of stock

4

SOCKET, NEUTRAL

(168-83537-20-00)

1
Out of stock

5

SOCKET, CHARGE

(168-83539-70-00)

1
Out of stock

6

SOCKET, HIGH-BEAM

(168-83529-20-00)

1
Out of stock

7

DAMPER

(152-83513-00-00)

1
Out of stock

8

GROMMET

(90480-12098-00)

1
Out of stock

9

WASHER, SPEC''L SHAP

(90209-05025-00)

1
Out of stock

10

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

11

SPEEDOMETER CABLE

(156-83550-01-00)

1
Out of stock

12

TACHOMETER CABLE

(168-83560-00-00)

1
Out of stock

13

BODY, HEADLIGHT

(168-84311-01-22)

1
Out of stock

13

BODY ASSEMBLY

(168-84330-01-29)

1
Out of stock

13

BODY ASSEMBLY

(168-84330-01-81)

1
Out of stock

14

LENS ASSEMBLY

(168-84320-60-00)

1
Out of stock

15

RIM, HEADLIGHT

(168-84315-00-00)

1
Out of stock

16

COLLAR, BODY FTNG

(168-84338-60-00)

1
Out of stock

16

COLLAR, BODY FTNG

(193-84338-60-00)

1
Out of stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

NUT(6TA)

95307-04600-00

—

$6.69

In stock

19

NUT, ADJUSTING

(132-84334-61-00)

1
Out of stock

19

NUT, ADJUSTING

(194-84334-60-00)

1
Out of stock

20

. PIN, COTTER

91401-10015-00

1
Out of stock

21

SPACER

168-84328-60-00

1
Out of stock

22

NUT

(132-84326-60-00)

1
Out of stock

22

NUT(6L4)

95380-04700-00

—

$5.62

In stock

23

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

24

SCREW, RIM ADJUSTING

(132-84331-60-00)

1
Out of stock

24

SCREW, RIM ADJUSTING

(198-84331-60-00)

1
Out of stock

25

SPRING

(168-84335-60-00)

1
Out of stock

26

SCREW, RIM FITTING

(150-84125-00-00)

1
Out of stock

26

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

27

GROMMET (L)

150-84153-00-00

—

$17.41

In stock

28

GROMMET

(168-84354-00-00)

1
Out of stock

29

DAMPER

(168-84753-00-00)

1
Out of stock

30

BOLT 168217380000

90109-06017-00

—
Out of stock

31

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

35

BRACKET, LICENSE

(168-84751-00-35)

1
Out of stock

36

COVER, TAILLIGHT

(168-84716-00-00)

1
Out of stock

37

. SEAT, BASE

(168-84712-00-00)

1
Out of stock

38

BASE, TAILLIGHT

(168-84711-00-00)

1
Out of stock

38

BASE, TAILLIGHT

(168-84711-01-00)

1
Out of stock

39

BULB(12V32/3CP)1157

137-84714-61-XX

1
Out of stock

40

. LENS, TAILLIGHT

(168-84721-60-00)

1
Out of stock

41

. SCREW, LENS FITTING

168-84724-00-00

1
Out of stock

42

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

43

NUT (J17)

95380-06800-00

—

$6.74

In stock

44

CORD, TAILLIGHT

(168-84717-00-00)

1
Out of stock

45

GROMMET 152845180000

90480-12013-00

—
Out of stock

46

BOLT (682)

97013-08025-00

—

$6.80

In stock

47

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

48

NUT(6L2)

95333-08600-00

—

$3.20

In stock

49

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

50

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

51

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

52

BULB

256-84347-00-00

1
Out of stock
