1967 Yamaha YR1_2_2C (YR1) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1967 Yamaha YR1_2_2C (YR1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

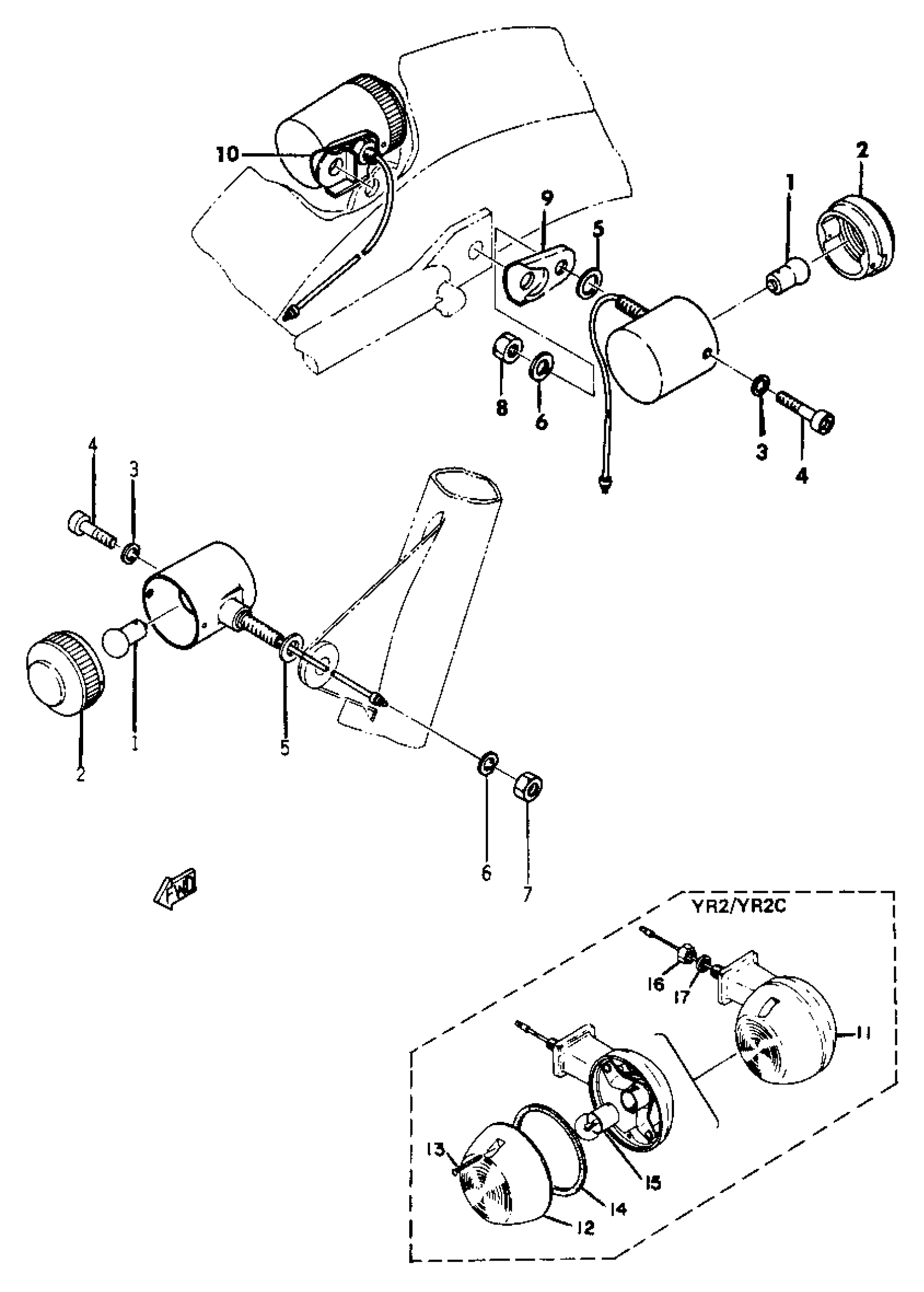

1967 Yamaha YR1_2_2C (YR1) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BULB (12V 38W)

4H7-84744-00-00

1
Out of stock

1

FRT FLSHR LITE ASSEMBLY

(168-83310-21-93)

1
Out of stock

1

R FLSHR LITE ASSEMBLY

237-83330-45-00

1
Out of stock

2

R FLSHR LITE ASSEMBLY

(168-83330-21-00)

1
Out of stock

2

LENS, FLASHER

(248-83312-10-00)

1
Out of stock

3

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

4

. SCREW

92503-03006-00

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

WASHER

(136-83348-20-00)

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

NUT(6L2)

95333-08600-00

1

$3.20

In stock

8

. NUT

95380-08700-00

1

$3.07

In stock

9

STAY, FLASHER 1

(168-83318-00-00)

1
Out of stock

10

STAY, FLASHER 2

(168-83328-00-00)

1
Out of stock

11

FRT FLSHR LITE ASSEMBLY

(246-83310-45-93)

1
Out of stock

12

. LENS, REAR RED FLASHER

211-83332-75-00

1
Out of stock

13

. SCREW, LENS FITTING

183-83333-20-00

1
Out of stock

13

SCREW, LENS FITTING (3X32)

183-83333-71-00

—

$7.51

In stock

14

GASKET,FLASHER LANS

183-83313-70-00

—

$7.51

In stock

15

BULB (12V 38W)

4H7-84744-00-00

1
Out of stock

16

NUT, SPECIAL SHAPE

90179-08288-00

1
Out of stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock
