1967 Yamaha YR1_2_2C (YR1) Generator Diagram

← All diagrams

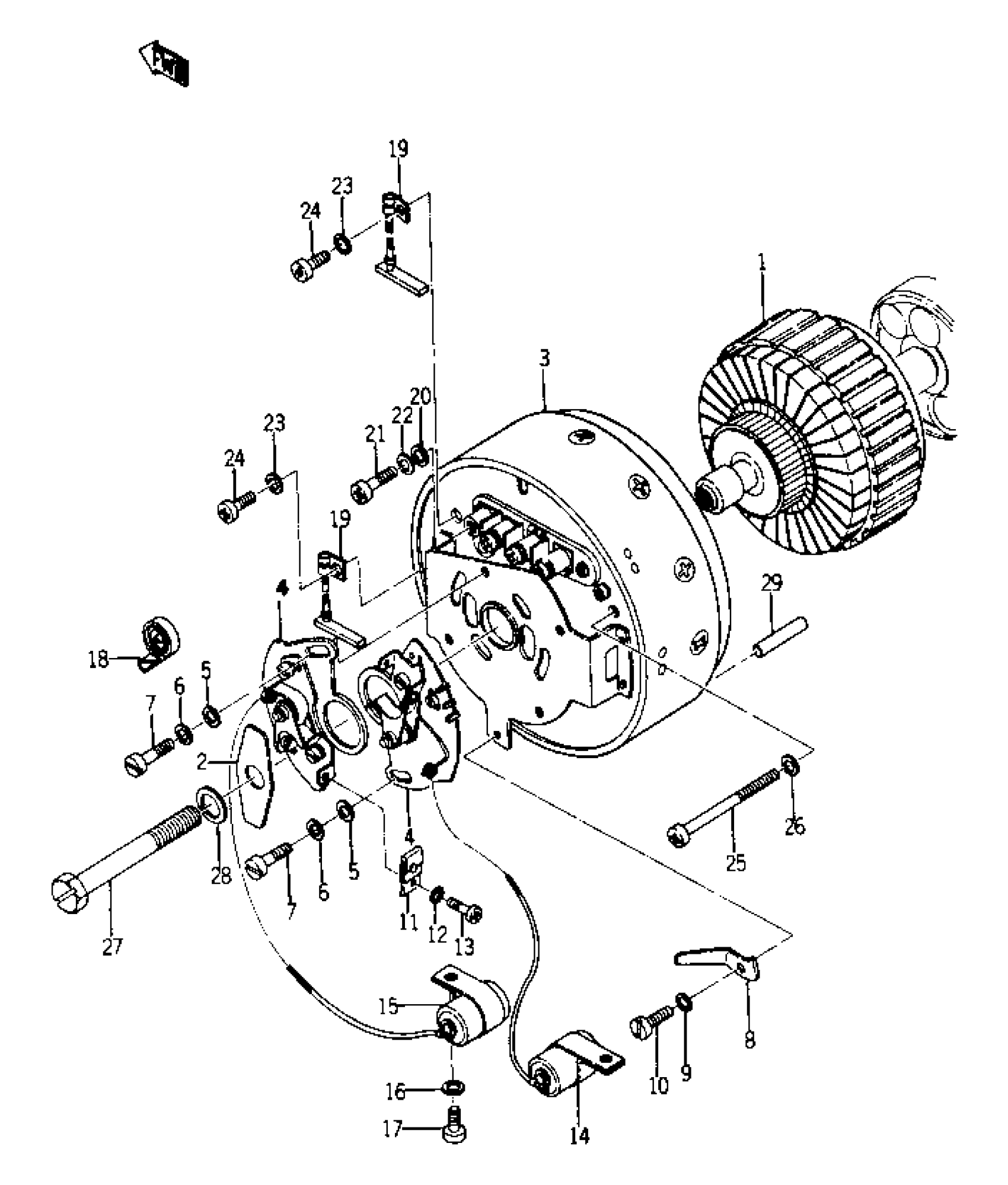

Find the part on the Generator diagram for your 1967 Yamaha YR1_2_2C (YR1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha YR1_2_2C (YR1) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DC GENERATOR ASSEMBLY

(168-81200-22-00)

1
Out of stock

1

.. CONTACT BRKR ASSEMBLY

168-81221-21-00

1
Out of stock

1

SCREW, STATOR

(168-81235-20-00)

1
Out of stock

1

ARMATURE

(168-81255-22-00)

1
Out of stock

2

CAM

(168-81251-20-00)

1
Out of stock

2

PLATE, CAM

(168-81254-20-00)

1
Out of stock

3

STATOR ASSEMBLY

(168-81210-21-00)

1
Out of stock

4

.. CONTACT BRKR ASSEMBLY

168-81222-21-00

1
Out of stock

5

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

SCREW, PAN HEAD

(164-81246-20-00)

1
Out of stock

7

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

8

PLATE, TIMING

(168-81232-20-00)

1
Out of stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

SCREW, PAN HEAD

(164-81246-20-00)

1
Out of stock

10

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

11

LUBRICATOR

(168-81231-20-00)

1
Out of stock

12

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

13

. SCREW

92503-03006-00

1
Out of stock

13

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

14

.. CONDENSER 1

168-81225-20-00

1
Out of stock

15

.. CONDENSER 2

168-81226-20-00

1
Out of stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

17

SCREW, PAN HEAD

(164-81245-20-00)

1
Out of stock

17

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

18

SPRING, BRUSH

(131-81213-20-00)

1
Out of stock

19

.. BRUSH

131-81211-20-00

1
Out of stock

20

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

21

SCREW, PAN HEAD

(92503-04008-00)

1
Out of stock

21

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

22

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

23

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

24

SCREW, PAN HEAD

(164-81245-20-00)

1
Out of stock

24

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

25

SCREW,PANHEAD (EG9)

98580-05570-00

—

$5.62

In stock

26

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

27

BOLT

(168-81252-21-00)

1
Out of stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

PIN, DOWEL

93603-14026-00

—
Out of stock
