1967 Yamaha YM2C (YM2C) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

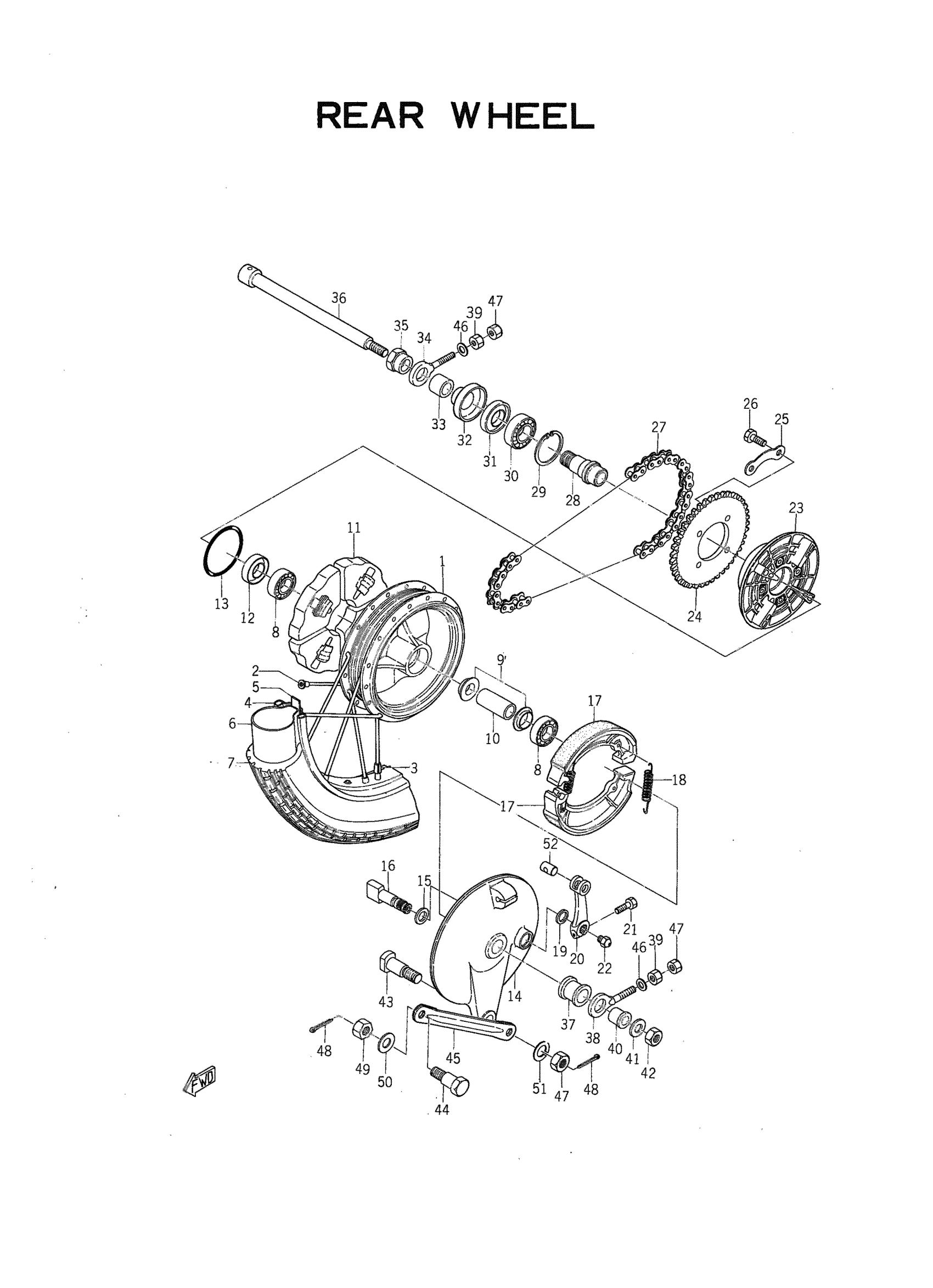

1967 Yamaha YM2C (YM2C) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,REAR

278-25311-00-00

1
Out of stock

2

SPOKE SET, REAR

152-25304-00-00

1
Out of stock

3

BALANCER, WHEEL

3HT-25398-00-00

1

$6.89

In stock

4

RIM 1.85X18

94418-18026-00

1
Out of stock

5

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

6

TUBE (2RH)

94232-18113-00

1
Out of stock

7

350-18 DUN

94135-18306-00

1
Out of stock

8

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

9

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

10

SPACER

90560-17140-00

1
Out of stock

11

DAMPER

168-25364-00-00

1
Out of stock

12

OIL SEAL

93104-25008-00

1
Out of stock

13

O-RING (70E)

93210-54534-00

1

$5.46

In stock

14

PLATE, BRAKE SHOE

152-25321-00-00

1
Out of stock

15

SHIM, CAM SHAFT

148-25353-00-00

1

$6.40

In stock

16

CAMSHAFT

152-25351-00-00

1
Out of stock

17

BRAKE SHOE KIT

5R3-W253E-00-00

—

$75.34

In stock

18

—

$8.09

In stock

19

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

20

LEVER, CAMSHAFT

152-25355-00-00

1
Out of stock

21

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

22

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

23

CLUTCH,HUB

168-25366-00-00

1
Out of stock

24

SPROCKET, DRIVN 38T

152-25438-10-33

1
Out of stock

24

SPROCKET, DRIVN 39T

152-25439-10-33

1
Out of stock

24

SPROCKET, DRIVN 40T

152-25440-10-33

1
Out of stock

24

SPROCKET, DRIVN 41T

152-25441-10-33

1
Out of stock

24

SPROCKET, DRIVN 42T

152-25442-10-33

1
Out of stock

24

SPROCKET, DRIVN 43T

152-25443-10-00

1
Out of stock

25

WASHER

148-25412-00-00

1
Out of stock

26

BOLT (583)

90101-10303-00

—

$6.25

In stock

27

525T 92L

94515-25092-00

1
Out of stock

27

. MASTER LINKS

94615-25001-00

1
Out of stock

28

AXLE, SPROCKET

152-25387-00-00

1
Out of stock

29

CIRCLIP(26H)

99009-52500-00

—

$10.74

In stock

30

BEARING

93306-20503-00

1
Out of stock

31

OIL SEAL

93102-32037-00

1
Out of stock

32

COVER, HUB DUST

168-25367-00-00

1
Out of stock

33

COLLAR

90387-23441-00

1
Out of stock

34

PULLER, CHAIN 2

156-25389-00-00

1
Out of stock

35

NUT,SPEC'L SHAPE

90179-22124-00

1
Out of stock

36

AXLE,WHEEL

150-25381-01-00

1
Out of stock

37

COLLAR, WHEEL

148-25383-00-00

1
Out of stock

38

PULLER, CHAIN 1

156-25388-00-00

1
Out of stock

39

NUT(6L2)

95333-08600-00

—

$3.20

In stock

40

COLLAR

90387-17429-00

1
Out of stock

41

WASHER, WHEEL

156-25384-00-00

1
Out of stock

42

NUT,HEXAGON

90170-16083-00

1
Out of stock

43

BOLT

90109-08184-00

1
Out of stock

44

BOLT

90109-08375-00

1
Out of stock

45

BAR, TENSION

171-25371-00-00

1
Out of stock

46

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

47

. NUT

95380-08700-00

1

$3.07

In stock

48

PIN, COTTER

91490-20025-00

—

$1.31

In stock

49

NUT(6L2)

95333-08600-00

—

$3.20

In stock

50

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

51

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

52

PIN 1562723700

90249-12008-00

—

$4.70

In stock
