1967 Yamaha YM2C (YM2C) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

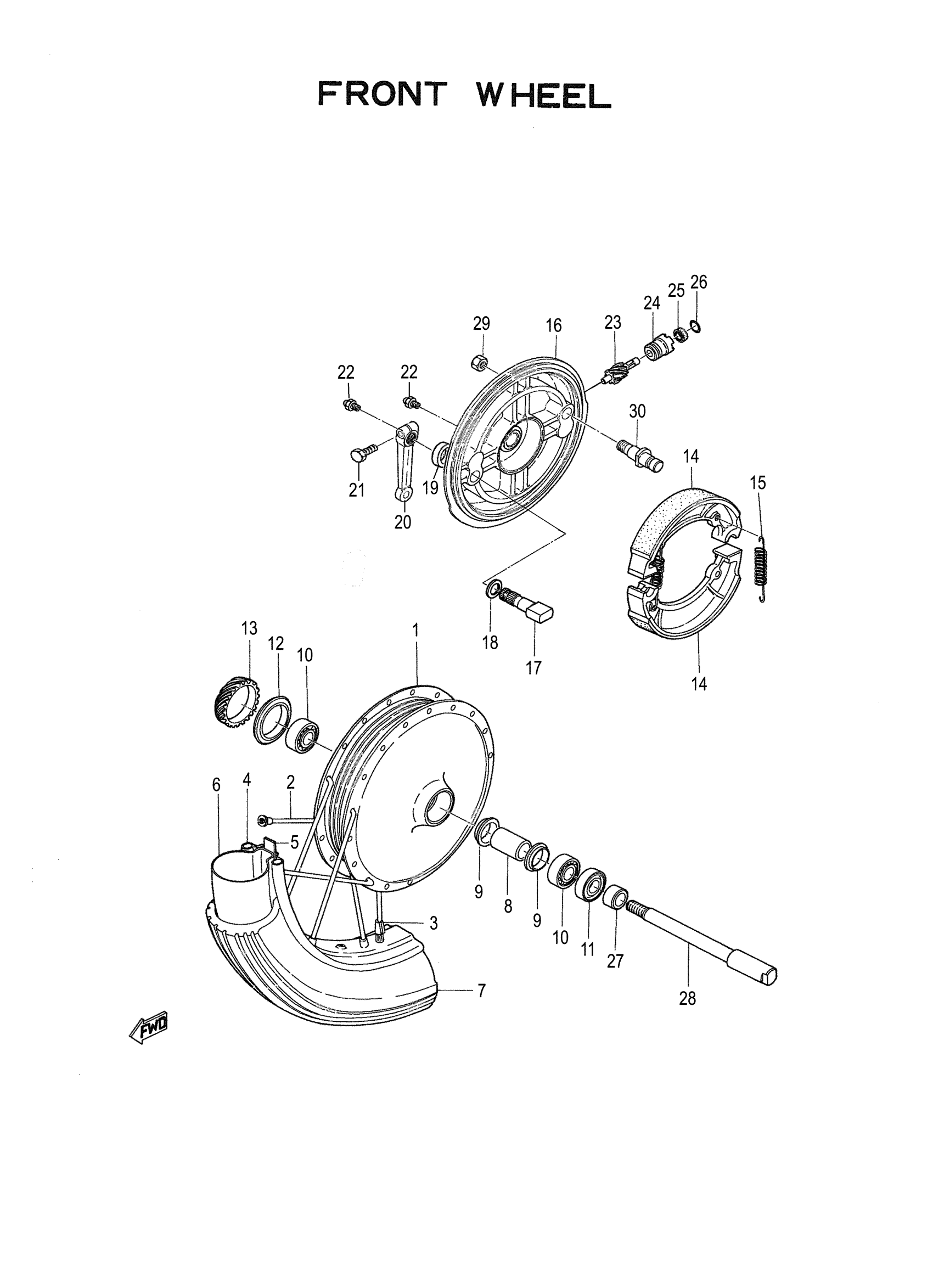

1967 Yamaha YM2C (YM2C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

152-25111-00-00

1
Out of stock

2

SPOKE SET, FRONT

152-25104-00-00

1
Out of stock

3

BALANCER, WHEEL

3HT-25398-00-00

1

$6.89

In stock

4

RIM 1.60X18

94416-18013-00

1
Out of stock

5

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

6

TUBE (5H5)

94227-18195-00

1
Out of stock

7

300X18 DUNLOP K-70

94130-18038-00

1
Out of stock

8

SPACER, BEARING

152-25117-00-00

1
Out of stock

9

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

10

1

$31.64

In stock

11

OIL SEAL, SDD-TYPE

93105-24006-00

1
Out of stock

12

OIL SEAL, OS-TYPE

93107-50003-00

1
Out of stock

13

GEAR, DRIVE

152-25135-00-00

1
Out of stock

14

BRAKE SHOE KIT

5R3-W253E-00-00

—

$75.34

In stock

15

1

$8.09

In stock

16

PLATE, BRAKE SHOE

157-25121-00-00

1
Out of stock

17

CAMSHAFT

168-25151-00-00

1
Out of stock

18

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

19

SEAL, CAM SHAFT

148-25359-00-00

—
Out of stock

20

LEVER,CAMSHAFT 1

168-25155-00-00

1
Out of stock

21

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

22

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

23

GEAR, METER

152-25138-00-00

1
Out of stock

24

BUSHING

109-25136-00-00

—

$8.78

In stock

25

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

26

O-RING (26H)

93210-14579-00

—

$5.69

In stock

27

COLLAR

90387-17136-00

1
Out of stock

28

AXLE, WHEEL

152-25181-00-00

1
Out of stock

29

PIN PIVOT

172-25126-00-00

1
Out of stock

30

NUT, HEXAGON SMALL

95317-12700-00

—

$6.17

In stock
