1967 Yamaha YM2C (YM2C) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

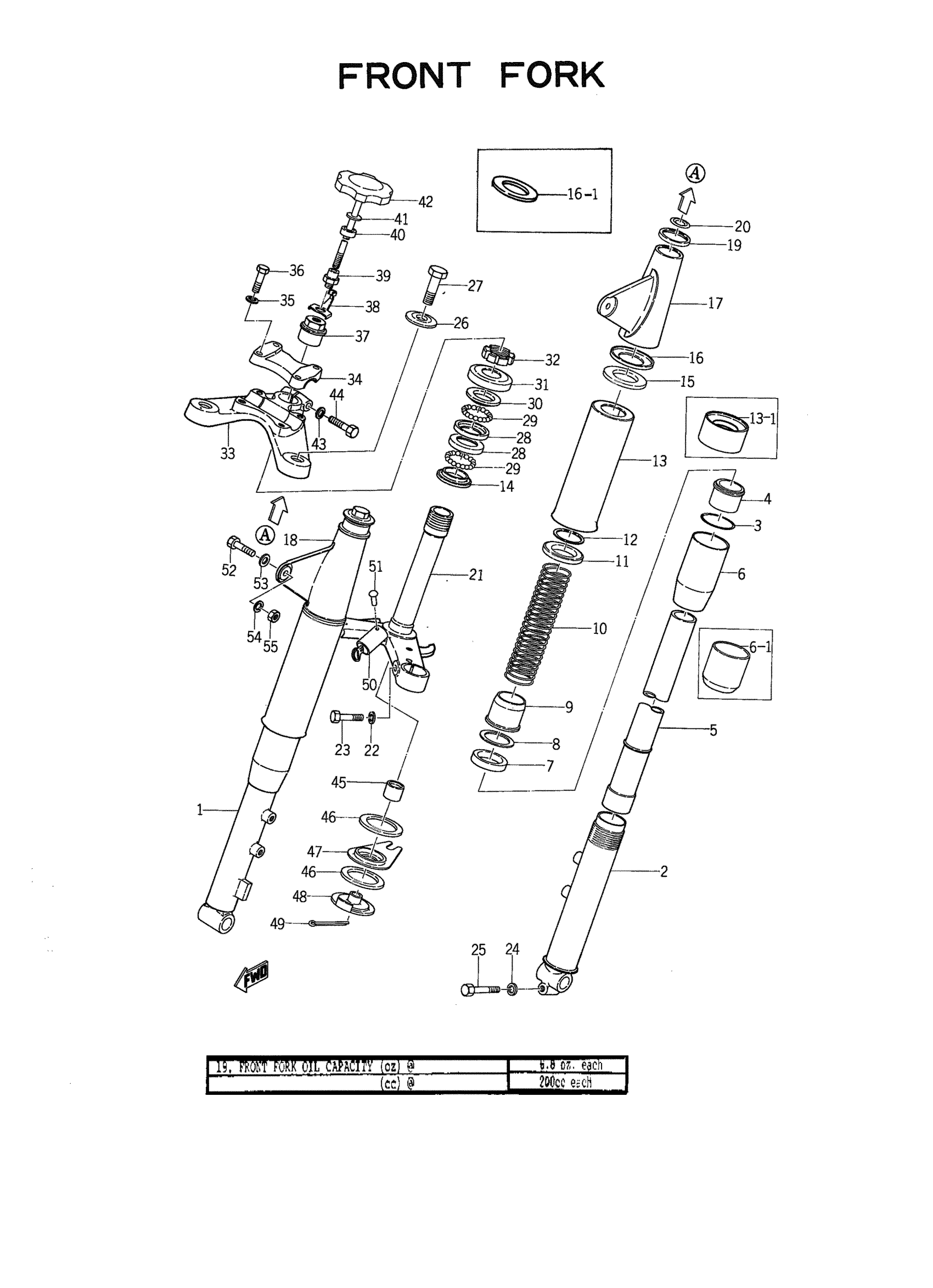

1967 Yamaha YM2C (YM2C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 2

171-23136-01-00

1
Out of stock

2

TUBE, OUTER 1

171-23126-01-00

1
Out of stock

3

. O-RING

156-23147-00-00

1
Out of stock

4

METAL, SLIDE 1

171-23125-01-00

1
Out of stock

5

TUBE, INNER 1

171-23124-01-00

1
Out of stock

6

NUT, OUTER TUBE

172-23127-00-00

1
Out of stock

7

OIL SEAL

2K5-23145-00-00

—

$27.50

In stock

8

WASHER, OIL SEAL

171-23146-00-00

1
Out of stock

9

SEAT, SPRING LOWER

156-23143-00-00

1
Out of stock

10

SPRING, FRONT FORK

172-23141-00-00

1
Out of stock

11

SEAT, SPRING UPPER

171-23142-01-00

1
Out of stock

12

WASHER, SPRING UPR

171-23149-00-00

1
Out of stock

13

COVER, LOWER 1

171-23123-01-63

1
Out of stock

13

COVER, OUTER 1

172-23122-00-00

1
Out of stock

14

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

15

GASKET

172-23163-00-00

1
Out of stock

16

WASHER, LIGHT STAY

157-23161-00-00

1
Out of stock

17

COVER, UPPER 1

171-23121-01-29

1
Out of stock

17

COVER, UPPER 1

171-23121-01-63

1
Out of stock

17

COVER, UPPER LH

171-23121-01-81

1
Out of stock

19

GUIDE, COVER UPPER

171-23115-01-00

1
Out of stock

20

GASKET

156-23114-00-00

1
Out of stock

21

UNDER BRACKET

171-23340-00-33

1
Out of stock

22

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

23

BOLT 1

122-23346-02-00

—

$6.25

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

25

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

26

WASHER, CAP

156-23112-00-00

1
Out of stock

27

BOLT, CAP

156-23111-01-00

1
Out of stock

28

RACE, BALL 2

B6E-23412-00-00

—

$9.71

In stock

29

BALL

93501-04011-00

—
Out of stock

30

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

31

COVER, BALL RACE 1

156-23415-00-00

1
Out of stock

32

NUT, FITTING 2

156-23454-00-00

1
Out of stock

33

CROWN, HANDLE

156-23435-01-00

1
Out of stock

34

HOLDER, HANDLE UPR

156-23441-00-00

1
Out of stock

35

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

36

BOLT

97013-08035-00

—

$4.80

In stock

37

NUT,SPEC'L SHAPE

90179-30108-00

1
Out of stock

38

SPRING

156-23428-00-00

1
Out of stock

39

GUIDE, DAMPER

156-23424-00-00

1
Out of stock

40

WASHER, PLATE 1412342700

90202-06008-00

—

$3.91

In stock

41

WASHER, PLATE

90201-06061-00

1
Out of stock

42

SHAFT, DAMPER

156-23419-00-00

1
Out of stock

43

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

44

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

45

HOLDER, DAMPER

148-23434-00-00

1
Out of stock

46

DAMPER, FRICTION

156-23425-00-00

1
Out of stock

47

PLATE,DAMPER 2

169-23422-01-00

1
Out of stock

48

PLATE,DAMPER 1

169-23421-00-33

1
Out of stock

49

PIN, COTTER

156-23433-00-00

1
Out of stock

50

STEERING LOCK ASSEMBLY

156-23480-00-00

1
Out of stock

51

RIVET

122-23483-00-00

1
Out of stock

52

BOLT (682)

97013-08025-00

—

$6.80

In stock

53

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

54

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

55

NUT(6L2)

95333-08600-00

—

$3.20

In stock

56

FRONT FORK ASSEMBLY

172-23100-20-81

1
Out of stock
