1967 Yamaha YM2C (YM2C) OIL Pump Diagram

← All diagrams

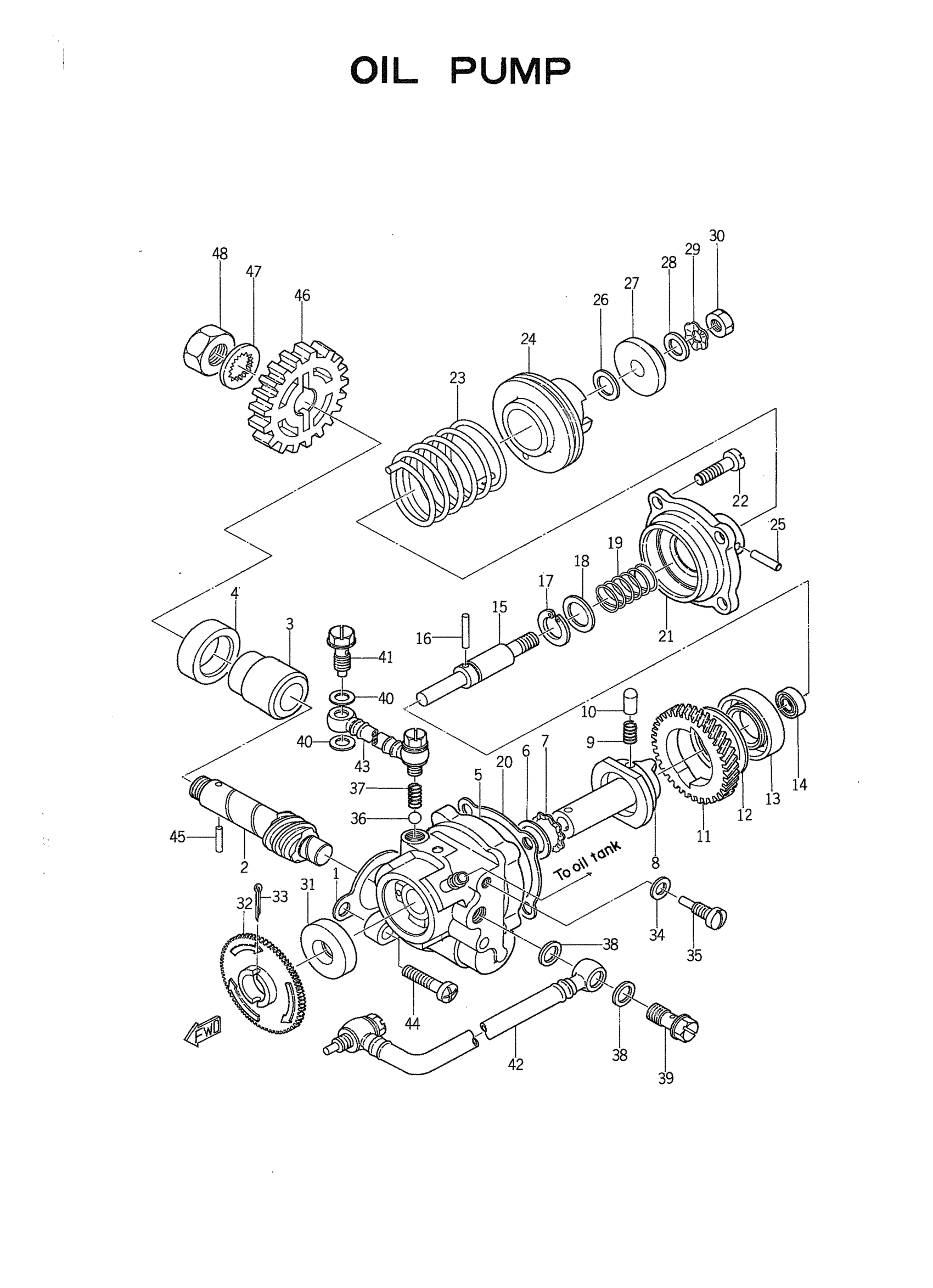

Find the part on the OIL Pump diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha YM2C (YM2C) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SHAFT, WORM

171-13175-00-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

4

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

5

PUMP CASE ASSY

156-13110-00-00

1
Out of stock

6

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

. DISTRIBUTOR ASSY

156-13120-00-00

1
Out of stock

9

SPRING,COMPRESSION

90501-02016-00

1
Out of stock

10

. PIN, DOWEL

93602-04029-00

1
Out of stock

11

GEAR, WORM WHEEL

168-13124-00-00

1
Out of stock

12

. PLATE, WORM WHEEL

137-13127-00-00

1
Out of stock

13

OIL SEAL (14X25X5-2H7)

93104-14059-00

1
Out of stock

14

OIL SEAL

93104-04114-00

1

$3.35

In stock

15

. PLUNGER

137-13131-00-00

1
Out of stock

16

PIN,DOWEL (137)

93603-12030-00

—

$1.88

In stock

17

CIRCLIP

93440-05001-00

1
Out of stock

18

. SEAT, SPRING

137-13134-00-00

1
Out of stock

19

. SPRING, PLNGR RTRN

137-13135-00-00

1
Out of stock

20

. GASKET, PUMP CASE COVER

137-13142-00-00

1
Out of stock

21

. COVER, PUMP CASE

137-13141-00-00

1
Out of stock

22

SCREW, PAN HEAD

92501-04010-00

1
Out of stock

23

. SPRING, TORSION (156-13145-00)

90508-10013-00

1
Out of stock

24

PULLEY,ADJUSTING

364-13144-01-00

1
Out of stock

25

. PIN

91608-20010-00

1
Out of stock

26

SHIM,PLUNGER

137-13137-00-10

—

$6.43

In stock

27

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

28

. SHIM (T=01MM)

137-13147-00-10

1
Out of stock

29

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

30

. NUT

137-13139-00-00

1
Out of stock

30

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

31

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

32

. PLATE, STARTER

137-13128-00-00

1
Out of stock

33

. PIN, COTTER

91401-12018-00

1
Out of stock

34

GASKET 137131870000

90430-04004-00

—
Out of stock

35

SCREW,PAN HEAD

164-81245-20-00

1
Out of stock

35

SCREW,PAN HEAD

164-81245-20-00

1
Out of stock

35

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

36

BALL

93505-32002-00

—

$2.22

In stock

37

. SPRING, COMPRESSION

90501-02017-00

1
Out of stock

38

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

39

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

40

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

41

BOLT, UNION

90401-06011-00

1
Out of stock

42

PIPE, DELIVERY 2

170-13171-00-00

1
Out of stock

43

PIPE, DELIVERY 1

170-13161-00-00

1
Out of stock

44

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

44

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

45

PIN,DOWEL (137)

93603-22028-00

—
Out of stock

46

GEAR, PUMP DRIVE

170-13178-00-00

1
Out of stock

47

WASHER (688)

92990-08400-00

1

$3.46

In stock

48

. NUT

95380-08700-00

1

$3.07

In stock

49

OIL PUMP ASSEMBLY

168-13101-03-00

1
Out of stock
