1967 Yamaha YM2C (YM2C) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

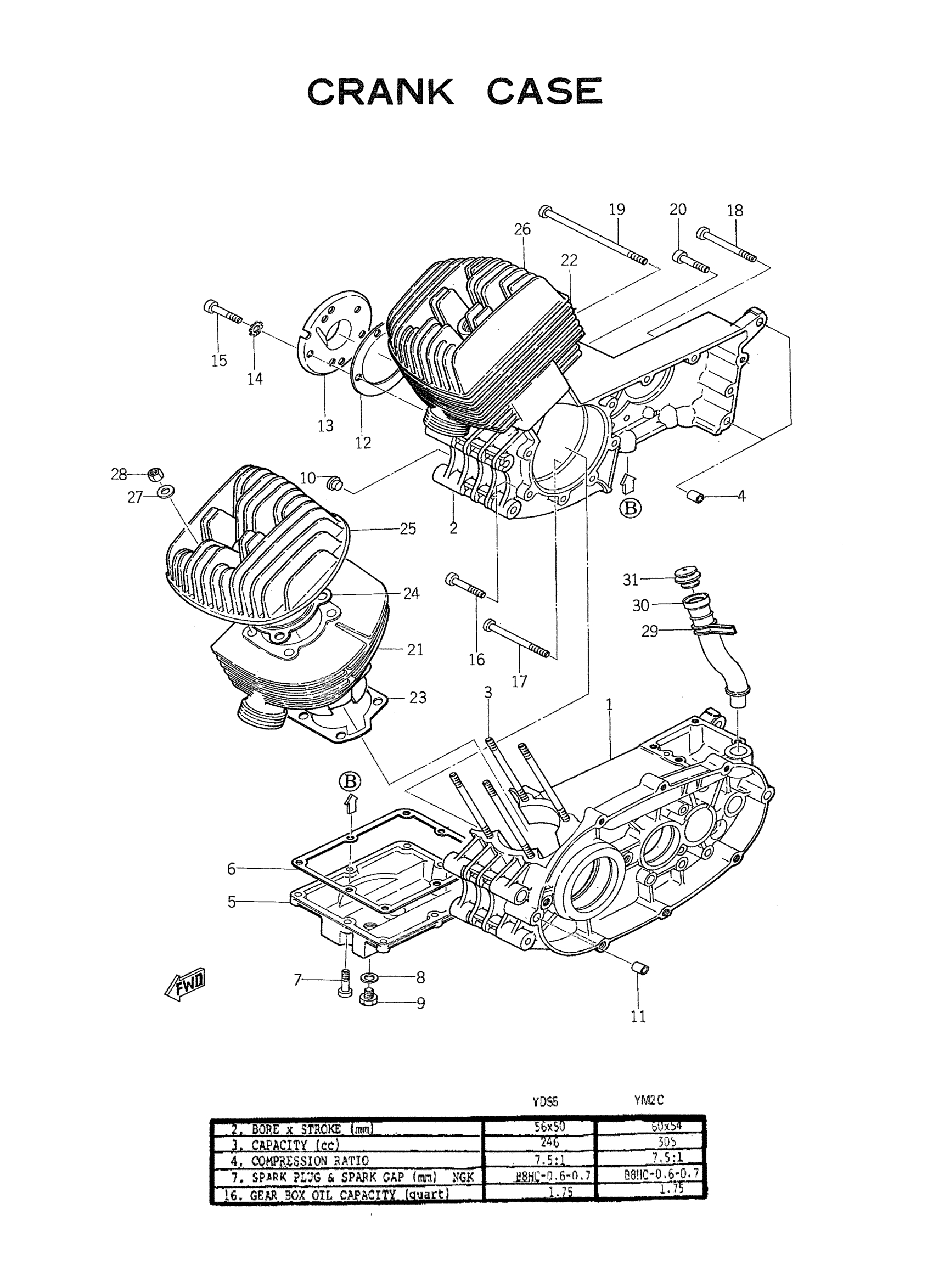

1967 Yamaha YM2C (YM2C) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

171-15111-02-00

1
Out of stock

2

CRANKCASE 2

171-15121-02-00

1
Out of stock

3

BOLT,STUD

90116-08078-00

1
Out of stock

4

PIN, DOWEL

91810-05025-00

1
Out of stock

5

COVER,SHIFTER 1

204-15419-00-00

1
Out of stock

6

GASKET, SHFTR COVER

150-15459-00-00

1
Out of stock

12

GASKET, OIL SEAL HOUSING

156-15369-00-00

1
Out of stock

13

HOUSING,OIL SEAL

156-15359-01-00

1
Out of stock

14

WASHER, EX.TOOTH

92990-05400-00

1
Out of stock

15

SCREW,PAN HEAD

92503-05012-00

1
Out of stock

15

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

16

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

17

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

18

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

19

SCREW, PAN HEAD

92501-06105-00

1
Out of stock

20

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

21

CYLINDER 1

171-11311-00-00

1
Out of stock

22

CYLINDER 2

171-11321-00-00

1
Out of stock

23

GASKET,CYLINDER

171-11351-00-00

1
Out of stock

24

GASKET,CYL HEAD 1

159-11181-01-00

1
Out of stock

25

HEAD,CYLINDER 1

171-11111-02-00

1
Out of stock

26

HEAD,CYLINDER 2

171-11121-02-00

1
Out of stock

27

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

28

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

29

HOLDER, GUIDE

170-15376-00-00

1
Out of stock

30

GUIDE, INLET

170-15377-00-00

1
Out of stock

31

BREATHER

204-15371-00-00

1
Out of stock
