1967 Yamaha YM2C (YM2C) Kick Diagram

← All diagrams

Find the part on the Kick diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

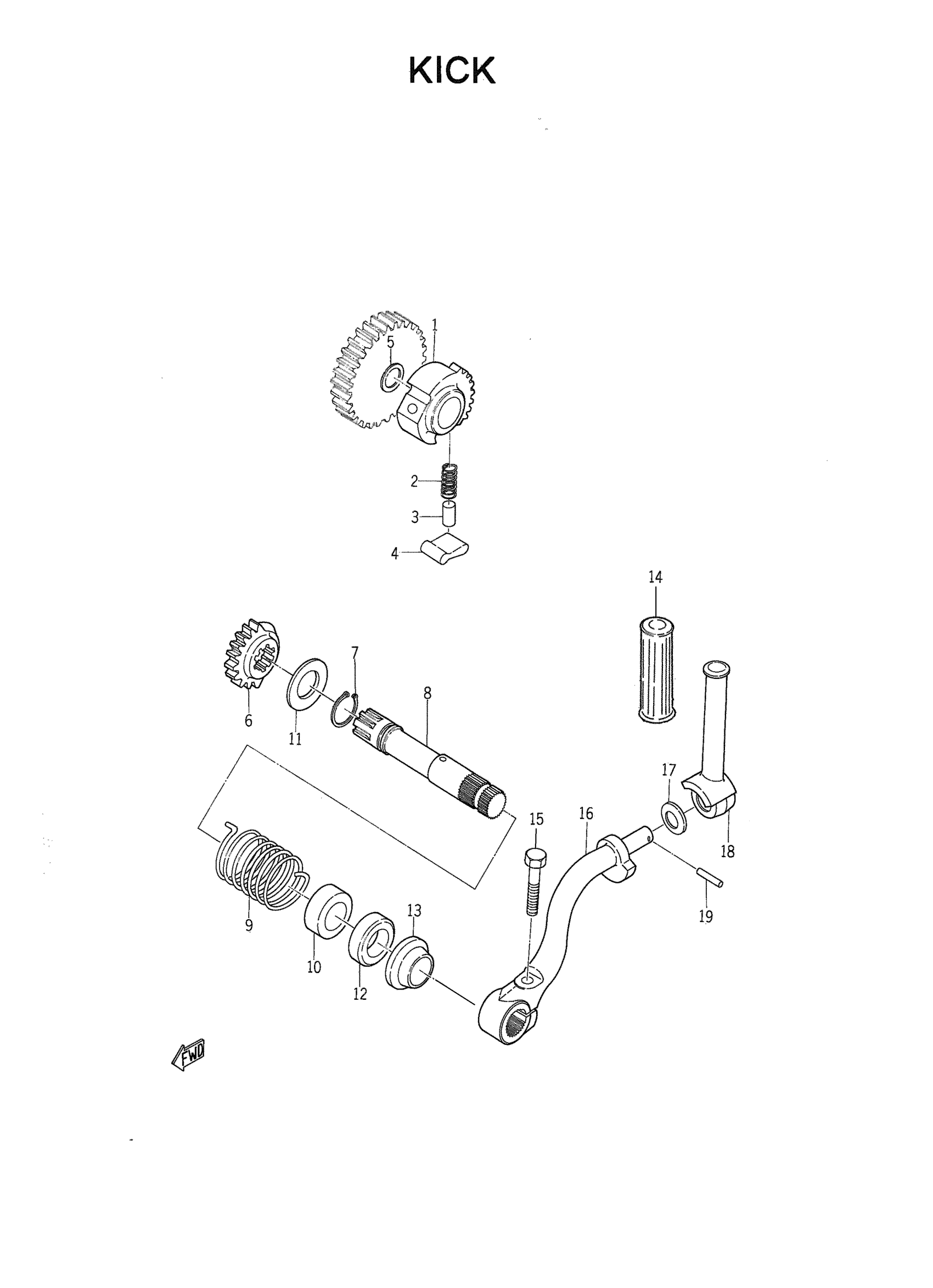

1967 Yamaha YM2C (YM2C) Kick Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, KICK PINION

156-15631-00-00

1
Out of stock

2

SPRING,COMPRESSION

90501-05020-00

1
Out of stock

3

PIN,STRAIGHT

90250-05007-00

1
Out of stock

4

PAWL, KICK

152-15635-00-00

1
Out of stock

5

WASHER,PLATE

90201-20268-00

1
Out of stock

6

GEAR, KICK

156-15641-00-00

1
Out of stock

7

CIRCLIP, OUTER

93440-20002-00

1
Out of stock

8

AXLE, KICK

152-15661-00-00

1
Out of stock

9

SPRING,TORSION

90508-35069-00

1
Out of stock

10

GUIDE, SPRING

146-15664-00-00

1
Out of stock

11

WASHER, PLATE 1832514700

90201-20269-00

1
Out of stock

12

OIL SEAL (20X30X4.5-146)

93104-20007-00

1

$6.23

In stock

13

SEAL

168-15663-00-00

1
Out of stock

14

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

15

BOLT (682)

97095-06040-00

1

$2.36

In stock

16

KICK CRANK ASSEMBLY

(172-15610-00-00

1
Out of stock

17

WASHER,WAVE

90206-10014-00

1
Out of stock

18

LEVER,KICK

214-15612-09-00

1
Out of stock

19

. PIN, DOWEL

93604-18017-00

1
Out of stock
