1967 Yamaha YM2C (YM2C) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

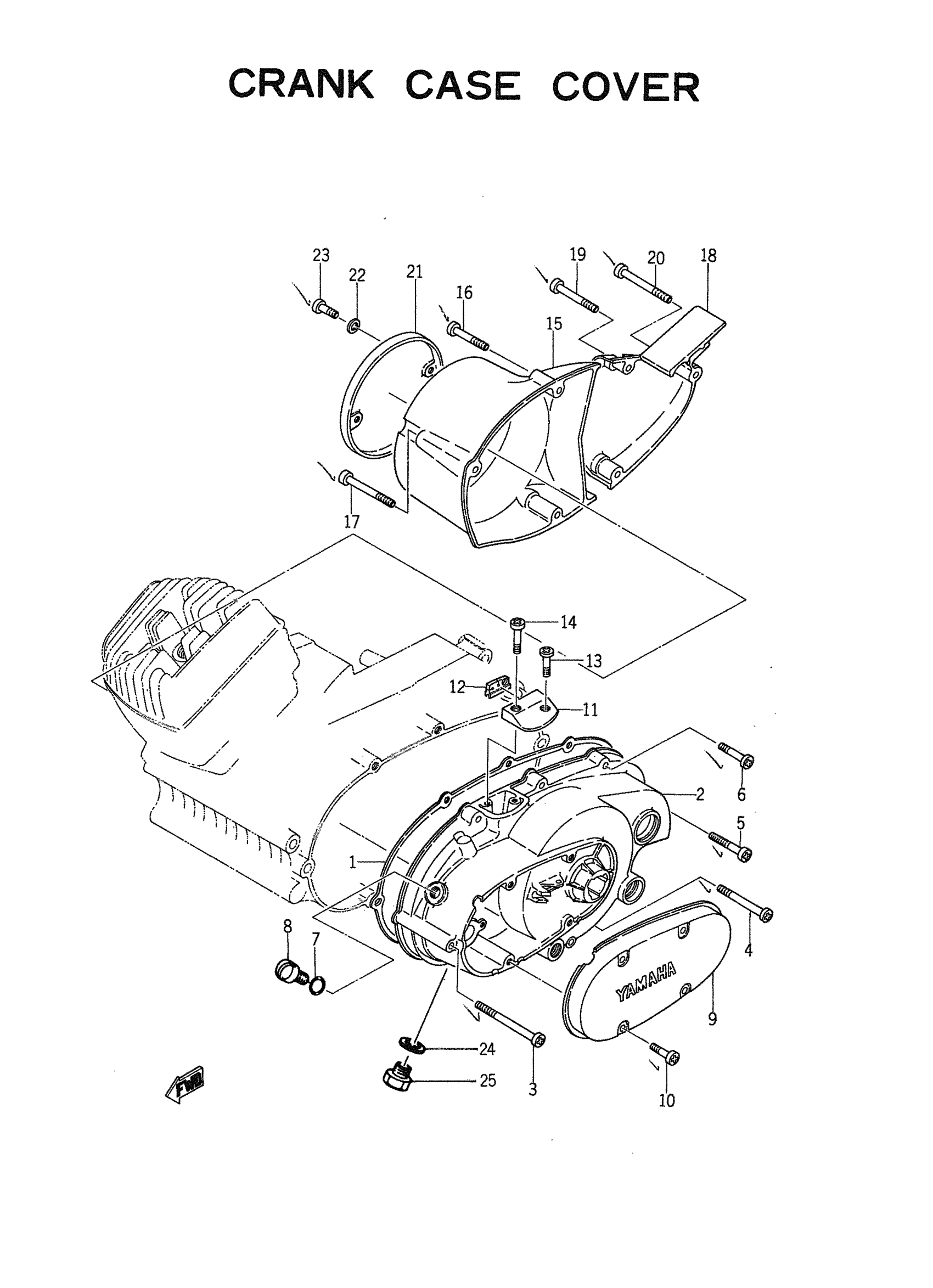

1967 Yamaha YM2C (YM2C) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, CRANKCASR COVER

156-15451-00-00

1
Out of stock

2

COVER, CRANKCASE L

204-15411-01-00

1
Out of stock

3

SCREW, PAN HEAD

98507-06095-00

1
Out of stock

4

SCREW, PAN HEAD

98580-06580-00

1
Out of stock

5

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

6

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

7

O-RING (137)

93210-13016-00

1

$5.78

In stock

8

PLUG,OIL

137-15363-00-00

1
Out of stock

9

COVER, OIL PUMP

170-15416-00-00

1
Out of stock

10

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

11

PROTECTOR

170-15491-00-00

1
Out of stock

12

SEAL, PROTECTOR

168-15494-00-00

1
Out of stock

13

SCREW,PAN HEAD

92503-05012-00

1
Out of stock

13

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

14

SCREW, PAN HEAD

92501-05006-00

1
Out of stock

14

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

15

COVER, CRANKCASE R

169-15421-01-00

1
Out of stock

16

SCREW PAN HEAD

98580-06545-00

—

$5.78

In stock

17

SCREW PAN HEAD

98580-06570-00

—

$17.32

In stock

17

SCREW, PAN

98507-06100-00

—

$6.80

In stock

18

COVER, CRANKCASE 3

170-15431-00-00

1
Out of stock

19

SCREW PAN HEAD

98580-06545-00

—

$5.78

In stock

20

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

21

COVER,GENERATOR

372-15415-00-00

1
Out of stock

22

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

23

SCREW,PAN HEAD

92503-04015-00

1
Out of stock

23

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

24

GASKET

90430-08076-00

1
Out of stock

25

PLUG,OIL LEVEL

146-15362-00-00

1
Out of stock
