1986 Yamaha Badger (YFM80S) Starter Diagram

← All diagrams

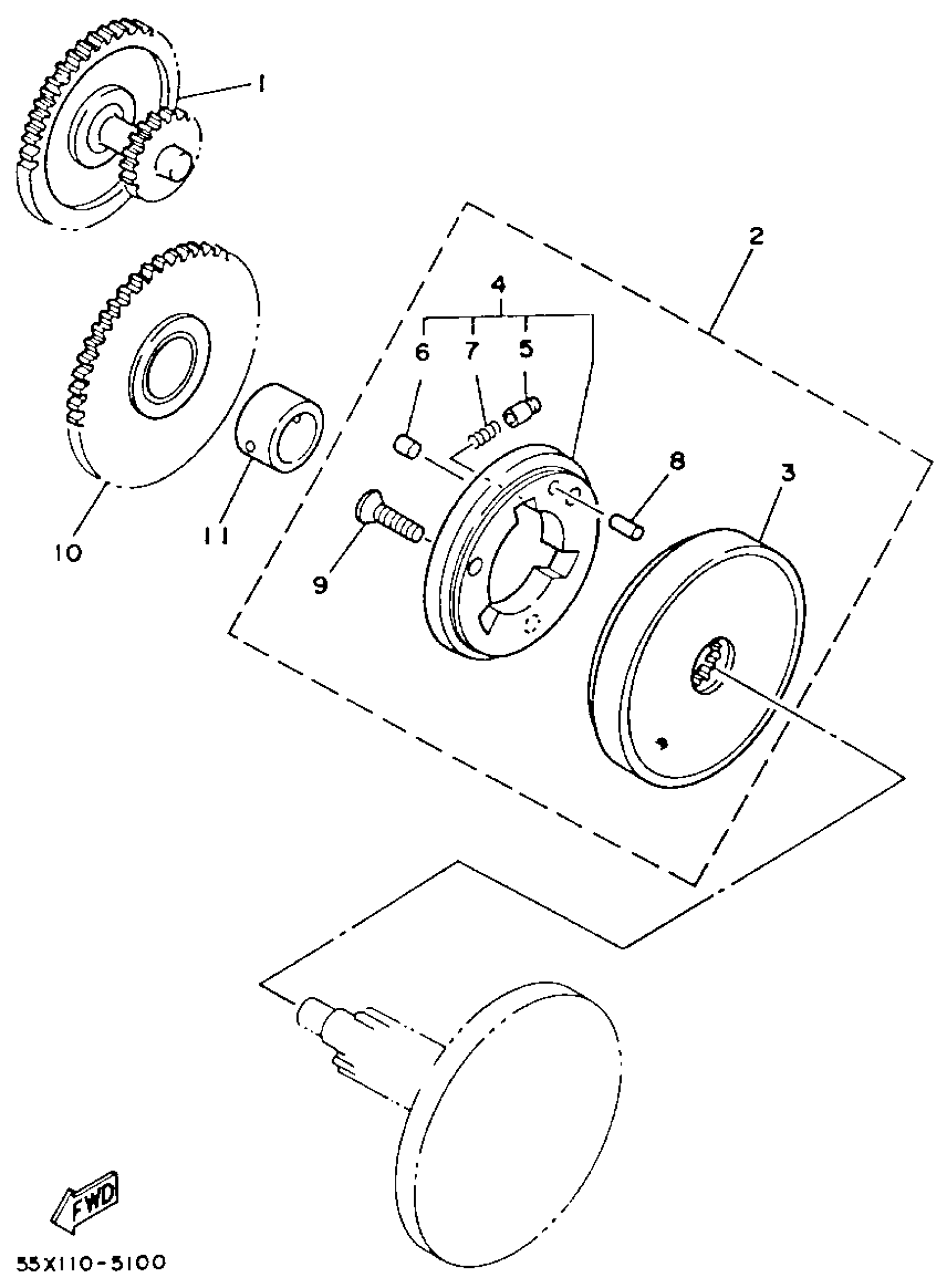

Find the part on the Starter diagram for your 1986 Yamaha Badger (YFM80S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Badger (YFM80S) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER.WHEEL ASSEMBLY

22J-15520-00-00

1
Out of stock

2

STARTER CLUTCH ASSEMBLY

99999-02218-00

1
Out of stock

3

. ROTARY FILTER ASSEMBLY

22M-13450-01-00

1
Out of stock

4

. STARTER CLUTCH OUTER ASSEMBLY

22J-15580-01-00

1
Out of stock

5

.. CAP, STARTER CLUTCH SPRING

4G2-15583-00-00

1
Out of stock

6

.. PIN, DOWEL

93608-10155-00

1
Out of stock

7

.. SPRING, COMPRESSION

90501-03592-00

1
Out of stock

8

PIN, DOWEL

93605-14143-00

1

$5.38

In stock

9

SCREW, OVAL HEAD

98603-06018-00

1
Out of stock

10

GEAR IDLER 2

22J-15517-00-00

1
Out of stock

10

GEAR, IDLER 2

2HX-15517-10-00

—
Out of stock

11

SPACER (4G2)

90560-20196-00

—

$13.74

In stock
