1986 Yamaha Badger (YFM80S) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1986 Yamaha Badger (YFM80S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

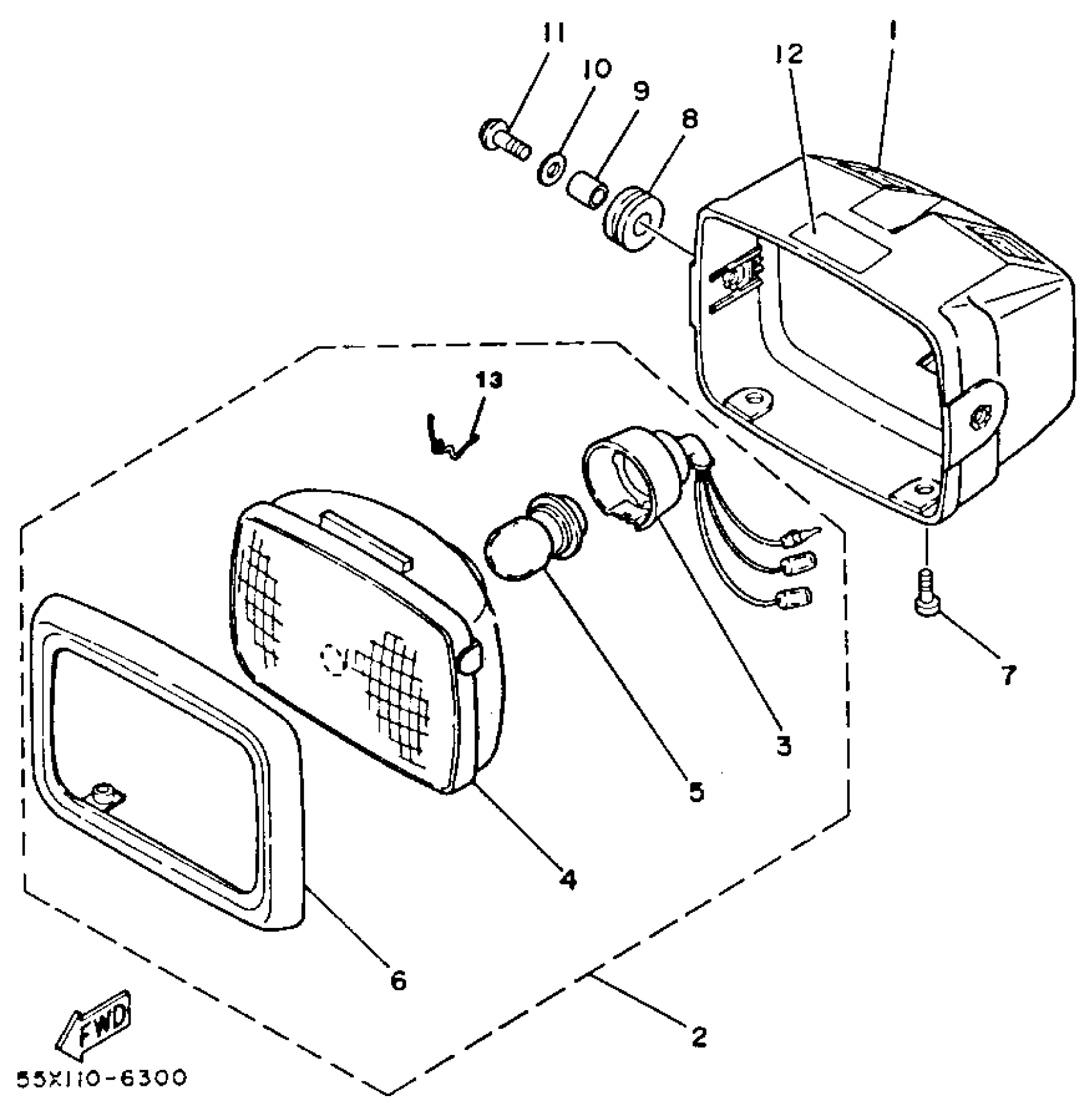

1986 Yamaha Badger (YFM80S) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

55X-84330-00-00

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

55-X8431-00-00

1
Out of stock

3

. SOCKET

55X-84312-00-00

1
Out of stock

4

LENS ASSY

59V-84320-01-00

1

$92.82

In stock

5

BULB, HEADLIGHT (12V-25/25W)

1YT-84314-00-00

1
Out of stock

6

. RIM, HEADLIGHT

55X-84315-00-00

1
Out of stock

7

SCREW, PAN

98517-05012-00

1

$3.91

In stock

8

GROMMET (4L0)

90480-18276-00

1

$6.48

In stock

9

COLLAR (90387-066J9)

90387-064W1-00

1
Out of stock

10

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

11

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

12

EMBLEM

55X-21578-00-00

1
Out of stock

13

SET SPRING

55X-84124-00-00

1

$10.82

In stock
