1986 Yamaha 4-Zinger (YF60S) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1986 Yamaha 4-Zinger (YF60S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

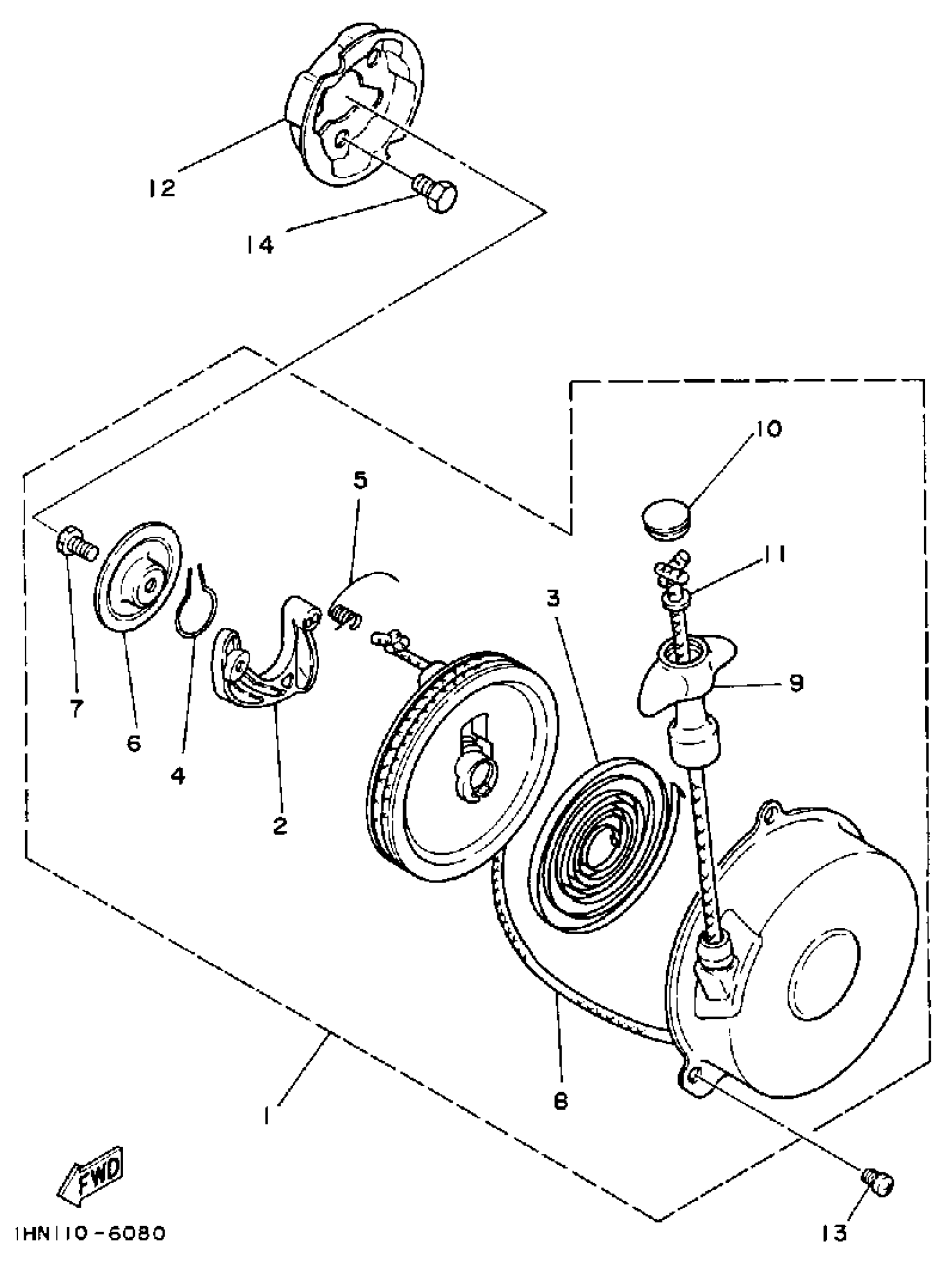

1986 Yamaha 4-Zinger (YF60S) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY

36R-15710-00-00

1
Out of stock

2

. PAWL, DRIVE

36R-15741-01-00

1
Out of stock

3

SPRING, STARTER

36R-15713-00-00

—
Out of stock

4

. SPRING, FRICTION

36R-15715-00-00

1
Out of stock

5

. SPRING

36R-15767-00-00

1
Out of stock

6

. PLATE, DRIVE

36R-15716-00-00

1
Out of stock

7

BOLT (661)

97013-06012-00

1

$4.71

In stock

8

ROPE,STARTER

36R-15751-00-00

1
Out of stock

9

. HANDLE, STARTER

3FA-15755-00-00

1
Out of stock

10

. COVER

36R-15779-00-00

1
Out of stock

11

. WASHER, FLAT

36R-15726-01-00

1
Out of stock

12

PULLEY, STARTER

36R-15723-00-00

1
Out of stock

13

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

14

BOLT(3JP)

97017-06010-00

1

$2.62

In stock
