1986 Yamaha 4-Zinger (YF60S) Generator Diagram

← All diagrams

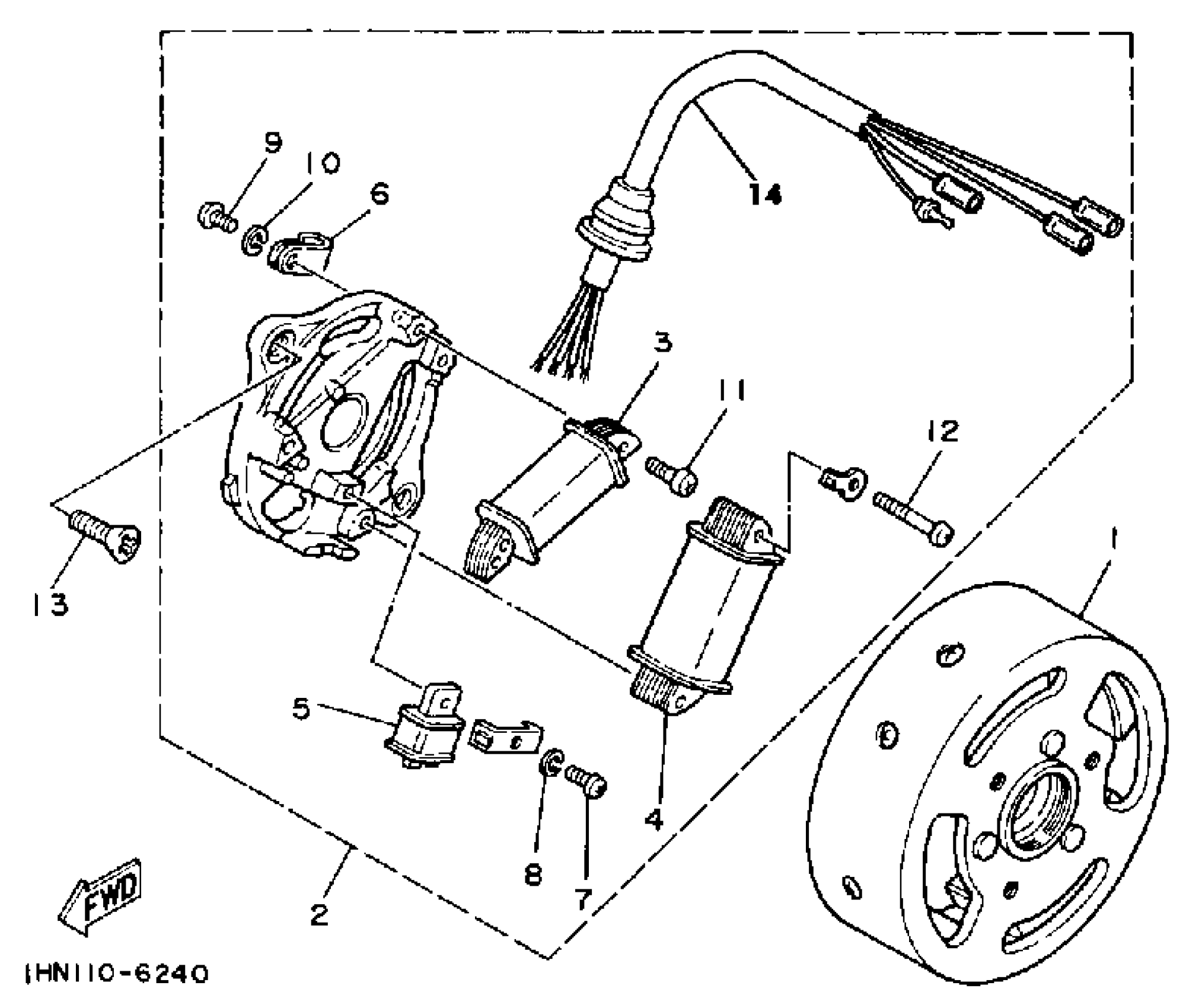

Find the part on the Generator diagram for your 1986 Yamaha 4-Zinger (YF60S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha 4-Zinger (YF60S) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

36R-85550-M0-00

1
Out of stock

2

BASE ASSEMBLY (36R-85560-M0)

1HN-85560-M0-00

1
Out of stock

3

. COIL, CHARGE

36R-85520-M0-00

1
Out of stock

4

COIL, LIGHTING 1

4X4-81313-M0-00

—

$77.86

In stock

5

PULSER ASSY

3L5-85580-M0-00

1

$66.05

In stock

6

CLAMP (2T4)

90461-05036-00

—

$4.05

In stock

7

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

8

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

9

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

10

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

11

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

12

SCREW, PAN HEAD

98507-04018-00

1
Out of stock

13

SCREW, FLAT

98707-06014-00

1
Out of stock

14

LEAD WIRE ASSEMBLY

(1HN-8131X-M0-00)

1
Out of stock
