1986 Yamaha 4-Zinger (YF60S) Electrical Diagram

← All diagrams

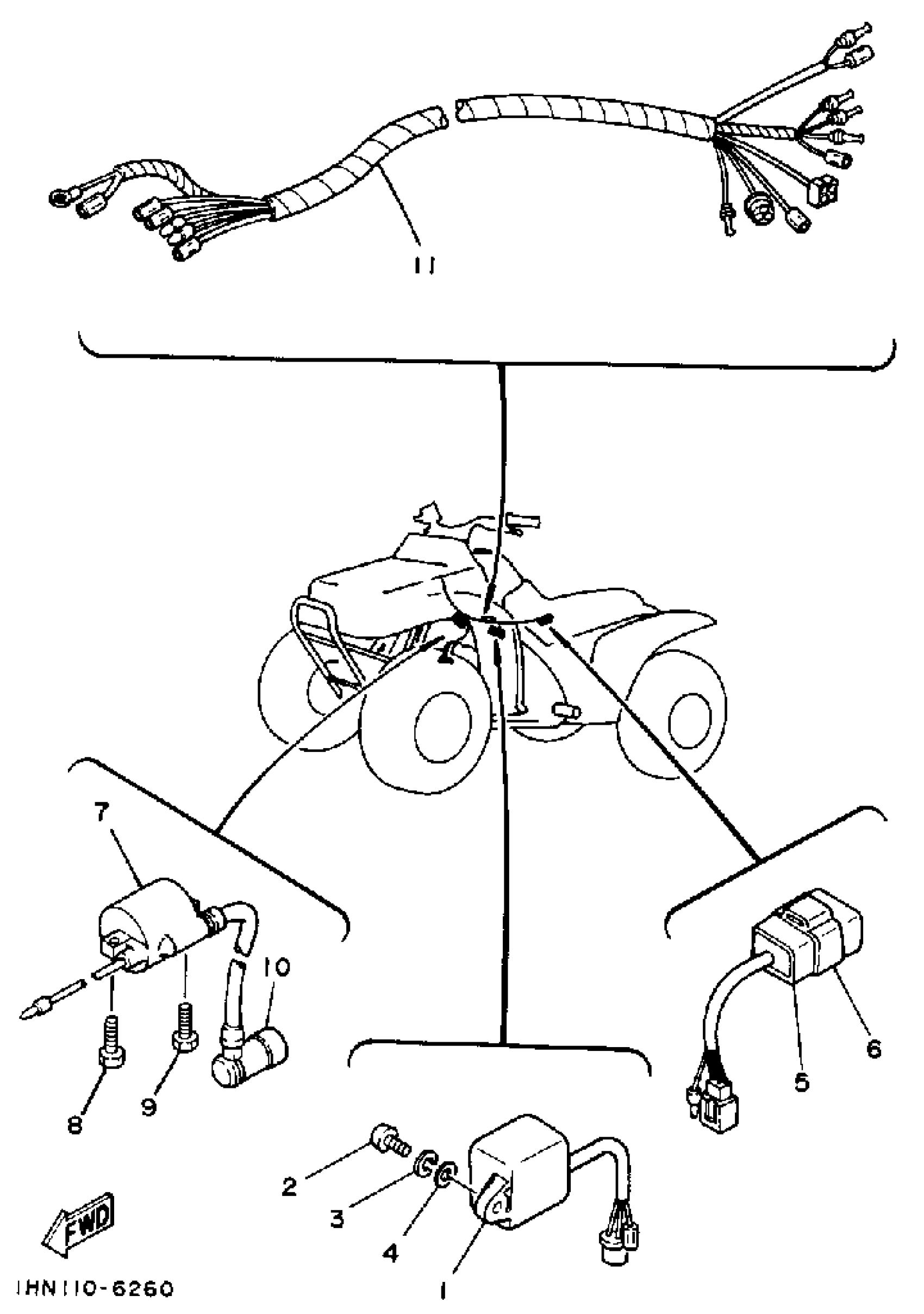

Find the part on the Electrical diagram for your 1986 Yamaha 4-Zinger (YF60S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha 4-Zinger (YF60S) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

1HN-85540-M0-00

1
Out of stock

2

SCREW, PAN

98507-06014-00

1

$6.18

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

5

CONTROL UNIT ASSEMBLY

1HN-85590-M0-00

1
Out of stock

6

BAND

4J2-85546-00-00

1

$9.94

In stock

7

IGNITION COIL ASSY

4RP-82310-26-00

1
Out of stock

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

9

SCREW (5G3)

90153-06034-00

1

$5.74

In stock

10

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

11

WIRE HARNESS ASSEMBLY

1HN-82590-00-00

1
Out of stock
