1986 Yamaha 4-Zinger (YF60S) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1986 Yamaha 4-Zinger (YF60S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

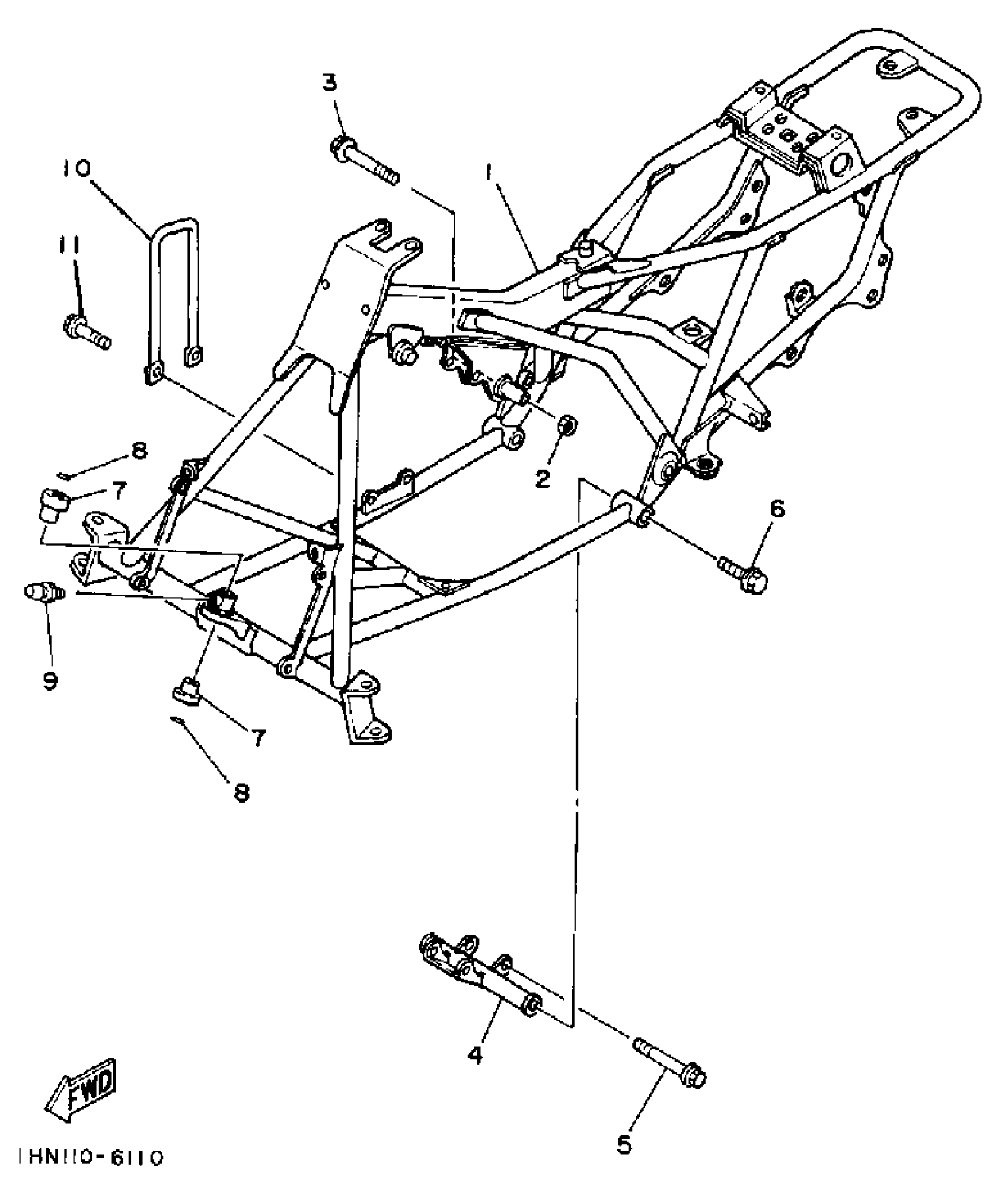

1986 Yamaha 4-Zinger (YF60S) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

1HN-21110-10-33

1
Out of stock

2

NUT, SELF-LOCKING

90185-10170-00

1

$7.98

In stock

3

BOLT, WASHER BASED

90105-10130-00

1
Out of stock

4

PROTECTOR, ENGINE

(1HN-21471-00-00)

1
Out of stock

5

BOLT, WASHER BASED

90105-06809-00

1

$1.38

In stock

6

BOLT (2J2)

90105-08118-00

1

$5.65

In stock

7

BUSH, SOLID (J22)

90381-15040-00

1

$23.54

In stock

8

O-RING (22U)

93210-15566-00

1

$5.78

In stock

9

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

10

GUARD, ENGINE 1

(1HN-2147A-00-00)

1
Out of stock

11

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock
