2001 Yamaha V-Star Custom CA (XVS650NC) Taillight Diagram

← All diagrams

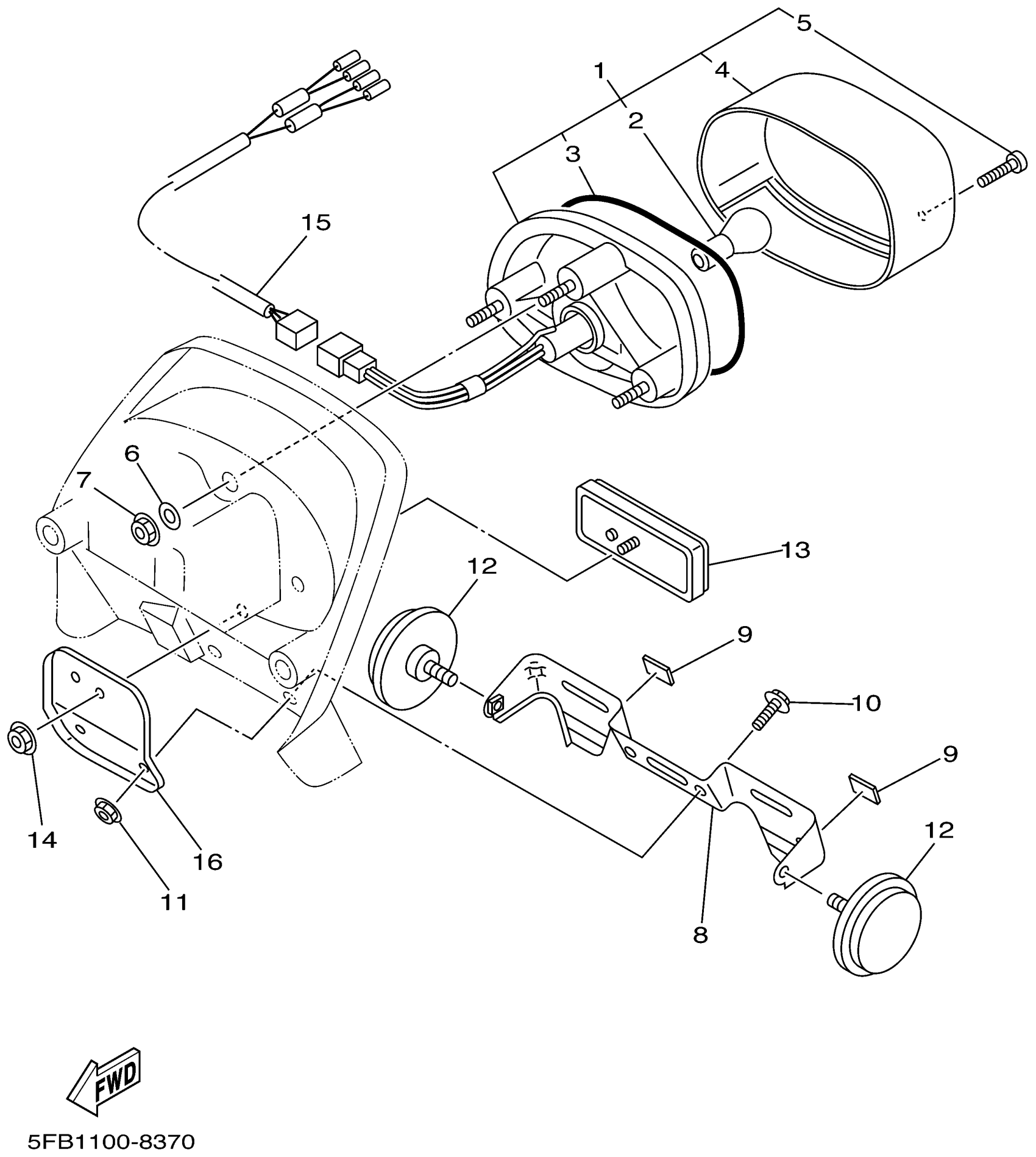

Find the part on the Taillight diagram for your 2001 Yamaha V-Star Custom CA (XVS650NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha V-Star Custom CA (XVS650NC) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT ASSY

4TV-84700-00-00

—

$145.26

In stock

2

1

$10.02

In stock

3

GASKET, TAIL LENS

4TX-84723-00-00

1

$4.48

In stock

4

LENS, TAILLIGHT

4TR-84733-00-00

1

$19.79

In stock

5

SCREW, PAN TAP.2

97707-40520-00

1

$7.14

In stock

6

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

7

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

8

BRACKET, LICENSE

5FB-84751-00-00

—

$32.44

In stock

9

DAMPER 2

51Y-21639-00-00

1

$5.27

In stock

10

BOLT, FLANGE(4DU)

95027-06014-00

1

$0.74

In stock

11

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

12

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

13

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

14

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock

15

CORD, TAILLIGHT

4TR-84717-00-00

1
Out of stock

16

BRACKET, FENDER

5FB-21617-00-00

—

$27.22

In stock
