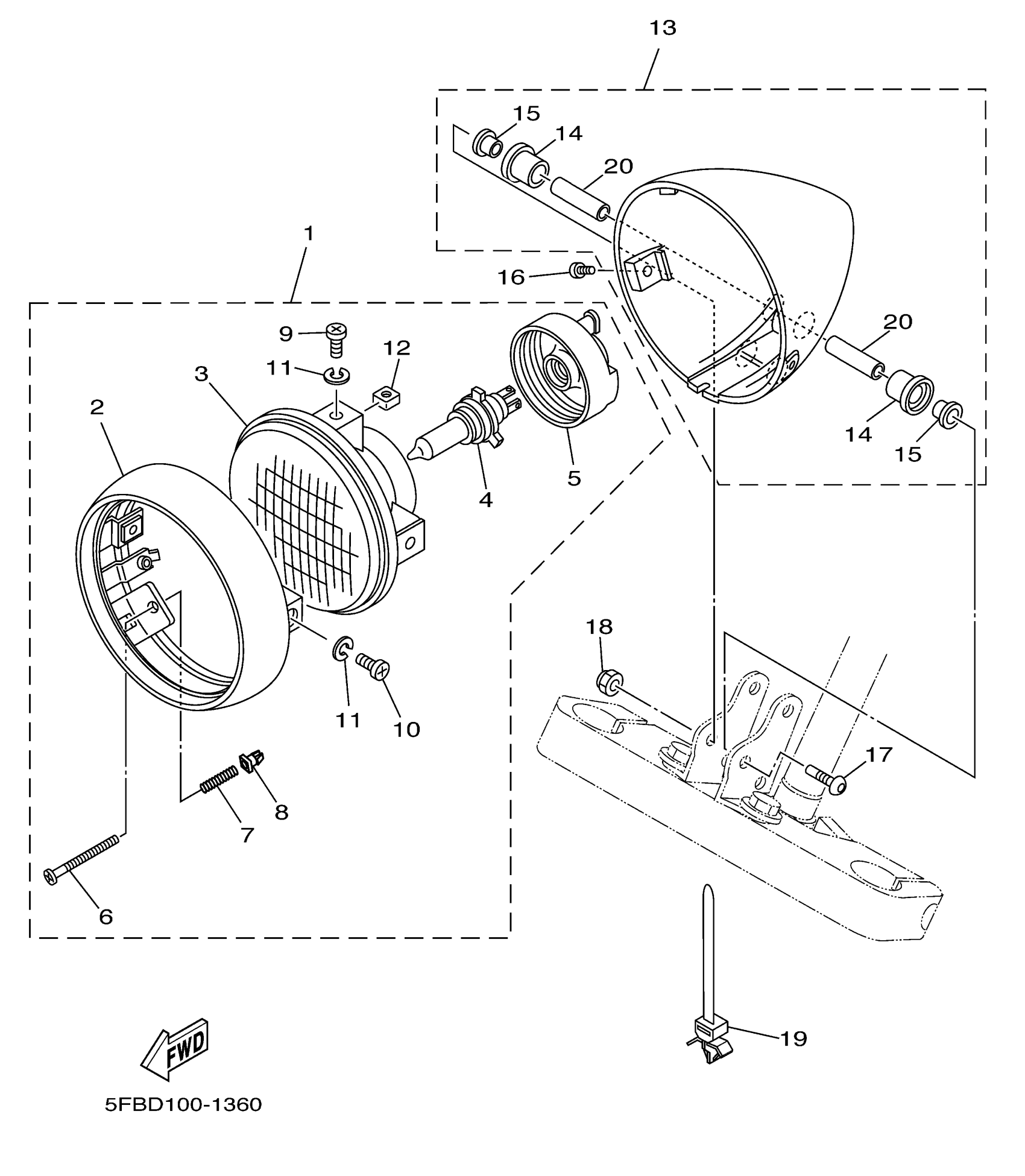

Find the part on the Headlight diagram for your 2001 Yamaha V-Star Custom CA (XVS650NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha V-Star Custom CA (XVS650NC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

5KP-84310-01-00

—

$323.88

In stock

2

RIM, HEADLIGHT

5JX-84315-01-00

—

$152.45

In stock

3

LENS ASSY

5KP-84321-00-00

—

$118.72

In stock

4

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

5

COVER, SOCKET

4JG-84397-00-00

—

$12.89

In stock

6

. SCREW, RIM ADJUSTING

20X84-33100-00

1
Out of stock

7

. SPRING, SCREW

34184-33260-00

1
Out of stock

8

. NUT, ADJUSTING

47J-84334-00-00

1

$6.69

In stock

9

SCREW

4KG-84365-00-00

1

$1.54

In stock

10

COLLAR, SCREW

50W-84333-00-00

1
Out of stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

NUT, ADJUSTING

4KG-84334-00-00

1

$6.37

In stock

13

BODY ASSY

5JX-84330-00-00

—
Out of stock

14

DAMPER, HEADLIGHT

42X-84345-00-00

1

$4.98

In stock

15

COLLAR, BODY FITTING

1FK-84338-00-00

1

$2.92

In stock

16

SCREW, PAN HEAD

90157-05011-00

—

$1.88

In stock

17

BOLT, BUTTON HEAD(4TR)

92014-06045-00

—

$2.51

In stock

18

NUT, CROWN (21G)

90176-06041-00

—

$2.74

In stock

19

CLAMP(2TV)

90464-10112-00

—

$6.18

In stock

20

COLLAR 1

5JX-84388-00-00

—

$4.86

In stock
