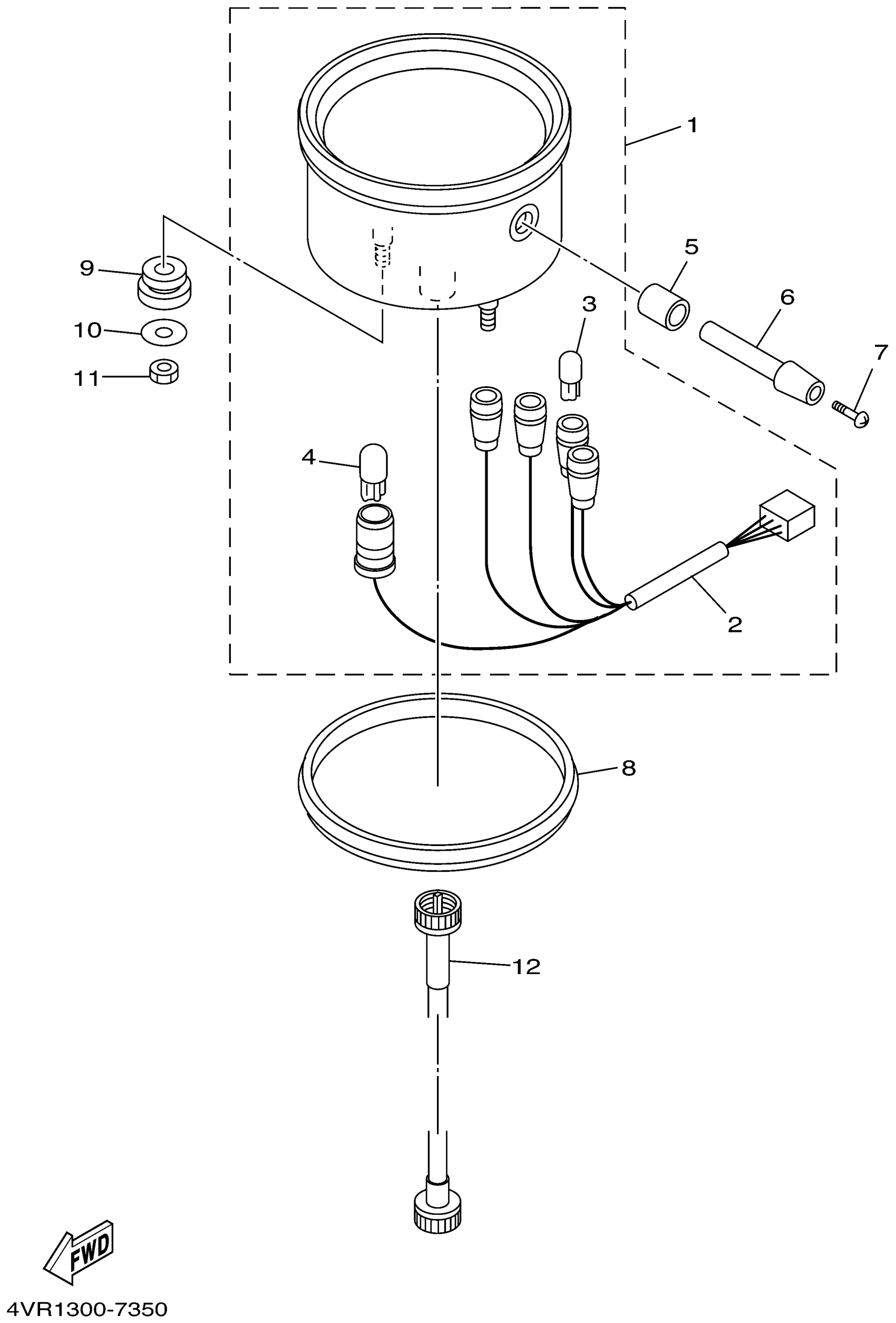

Yamaha XVS650NC (V-STAR CUSTOM CA) 5FBE 2001 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

4TR-83580-50-00

Unavailable

2

. SOCKET CORD ASSY

4TR-83520-10-00

Unavailable

3

BULB (12V-1.7W)

3FV-83517-00-00

$6.04

4

. BULB (12V-17W, T10)

36M-83517-00-00

Unavailable

5

TUBE

4TR-83535-00-00

$6.03

6

KNOB, TRIP METER

1JK-83578-00-00

$17.20

7

SCREW, PAN HEAD (11H)

90157-02031-00

$6.57

8

DAMPER

4TR-83513-00-00

$10.91

9

DAMPER 2

4TR-83526-00-00

$6.27

10

WASHER PLATE 829771780000

90201-05033-00

$6.62

11

NUT, HEXAGON SMALL

95317-05700-00

$5.76

12

SPEEDOMETER CABLE ASSY

4VR-83550-01-00

Unavailable
