2001 Yamaha V-Star Custom CA (XVS650NC) Electrical 2 Diagram

← All diagrams

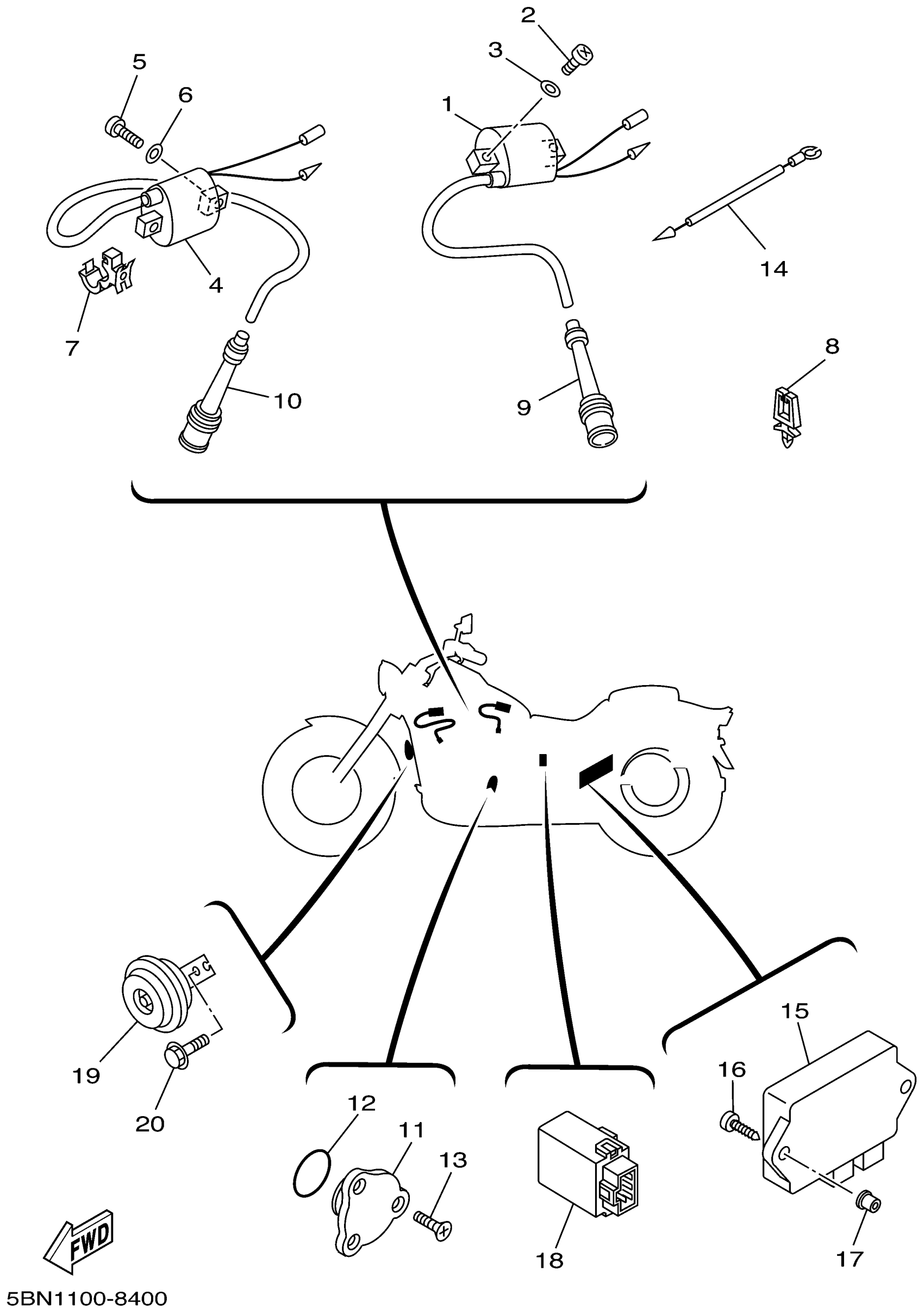

Find the part on the Electrical 2 diagram for your 2001 Yamaha V-Star Custom CA (XVS650NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha V-Star Custom CA (XVS650NC) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

4VR-82320-00-00

1

$141.76

In stock

2

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

3

WASHER(1RW)

92907-05600-00

1
Out of stock

4

IGNITION COIL ASSY

4VR-82320-00-00

1

$141.76

In stock

5

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

6

WASHER(1RW)

92907-05600-00

1
Out of stock

7

CLAMP(4GY)

90464-10190-00

1

$7.26

In stock

8

CLAMP(7LY)

90464-05141-00

1

$2.23

In stock

9

PLUG CAP ASSY

4XY-82370-00-00

1

$70.56

In stock

10

PLUG CAP ASSY

4VW-82370-00-00

1
Out of stock

11

NEUTRAL SWITCH ASSY

1L9-82540-00-00

1
Out of stock

12

O-RING (371)

93210-29196-00

1

$6.45

In stock

13

SCREW(3HX)

90149-05245-00

1

$6.18

In stock

14

WIRE, SUB LEAD

4TR-82509-00-00

1

$7.57

In stock

15

IGNITOR UNIT ASSY

5BN-82305-01-00

1
Out of stock

15

IGNITOR UNIT ASSY

5BN-82305-30-00

1
Out of stock

16

SCREW, TAPPING

97707-60020-00

1

$0.35

In stock

17

PLUG(4BP)

90338-08226-00

—

$1.63

In stock

18

FLASHER RELAY ASSY

2UJ-83350-01-00

—
Out of stock

19

HORN

55V-83371-00-00

1
Out of stock

20

BOLT, WASHER BASED

90105-082A5-00

—

$2.72

In stock
