2012 Yamaha Stryker (XVS13CBR) Water Pump Diagram

← All diagrams

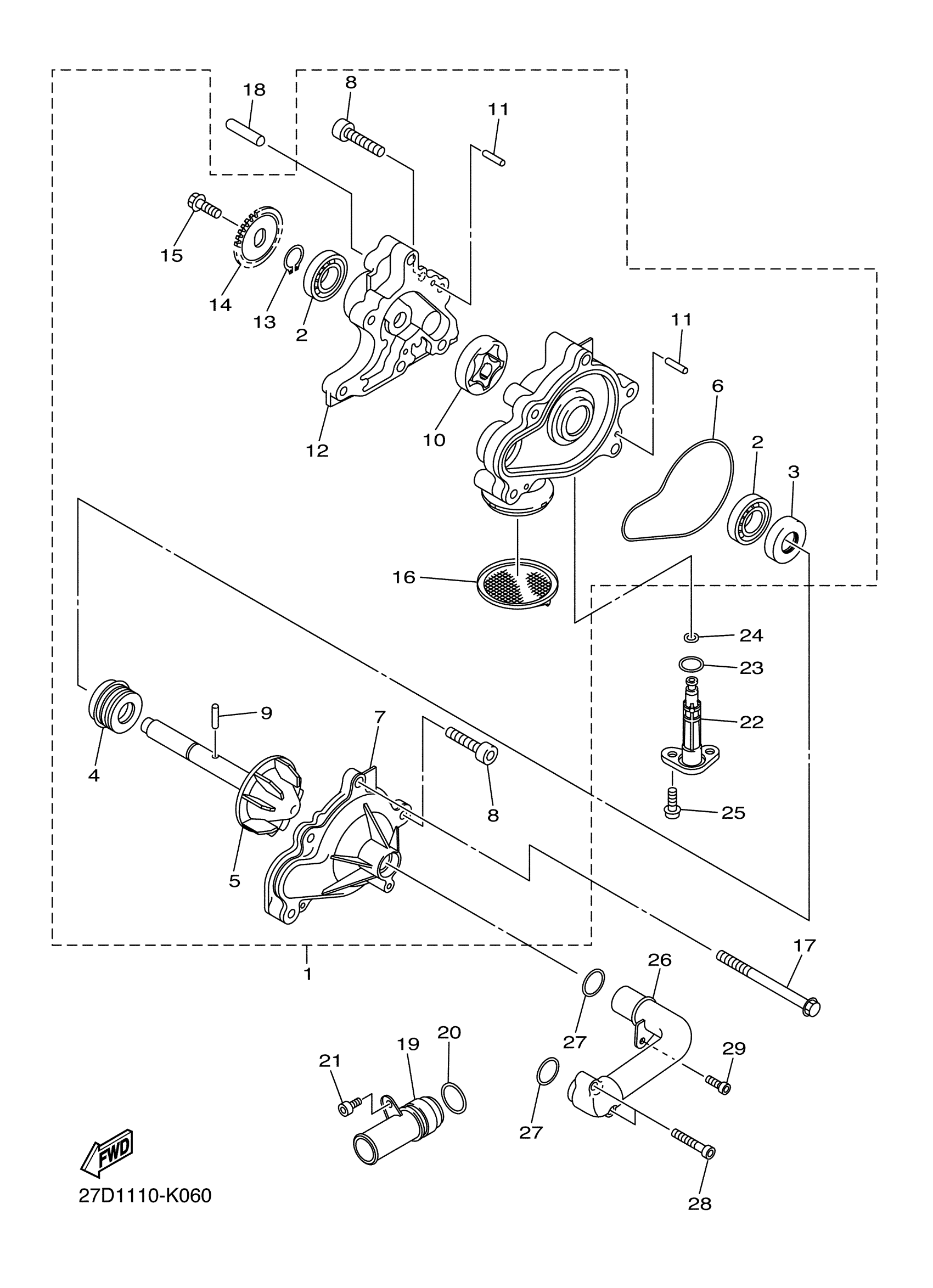

Find the part on the Water Pump diagram for your 2012 Yamaha Stryker (XVS13CBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Stryker (XVS13CBR) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WATER PUMP ASSY

3D8-12420-03-00

—
Out of stock

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

1

$25.40

In stock

3

OIL SEAL

93102-12372-00

1

$9.82

In stock

4

SEAL, MECHANICAL

11H-12438-10-00

1

$50.88

In stock

5

IMPELLER SHAFT ASSY

3D8-12450-01-00

—
Out of stock

6

O-RING

3D8-12439-00-00

—
Out of stock

7

COVER, HOUSING

3D8-12422-00-00

—
Out of stock

8

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

9

PIN,DOWEL

93603-17070-00

1

$3.03

In stock

10

ROTOR ASSY 1

3D8-13310-00-00

1
Out of stock

11

PIN,DOWEL (603)

93603-12007-00

1

$1.60

In stock

12

HOUSING, ROTOR

3D8-13336-00-00

—
Out of stock

13

CIRCLIP(10Y)

99009-12400-00

1

$3.08

In stock

14

SPROCKET, DRIVEN

3D8-13355-00-00

—

$18.72

In stock

15

BOLT, FLANGE

90105-06066-00

1

$6.31

In stock

16

STRAINER, OIL

3D8-13411-00-00

—
Out of stock

17

BOLT, HEXAGON SOCKET HEAD

90110-08049-00

—
Out of stock

18

PIN, DOWEL

99530-08012-00

1

$6.62

In stock

19

PIPE 9

3D8-1248E-01-00

—
Out of stock

20

O-RING(1KT)

93210-27778-00

—

$6.89

In stock

21

BOLT,SOCKET

91317-06012-00

—

$6.17

In stock

22

BODY, DRAIN COCK

27D-12562-00-00

—
Out of stock

23

O-RING (32N)

93210-15639-00

—

$4.84

In stock

24

O-RING (11M)

93210-07540-00

—

$5.77

In stock

25

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

—

$5.26

In stock

26

PIPE, WATER

3D8-12564-00-00

—
Out of stock

27

O-RING

93210-235A1-00

—

$5.75

In stock

28

BOLT(J17)

91312-06035-00

—
Out of stock

29

BOLT,SOCKET

91317-06016-00

—

$1.16

In stock
