2012 Yamaha Stryker (XVS13CBR) Exhaust Diagram

← All diagrams

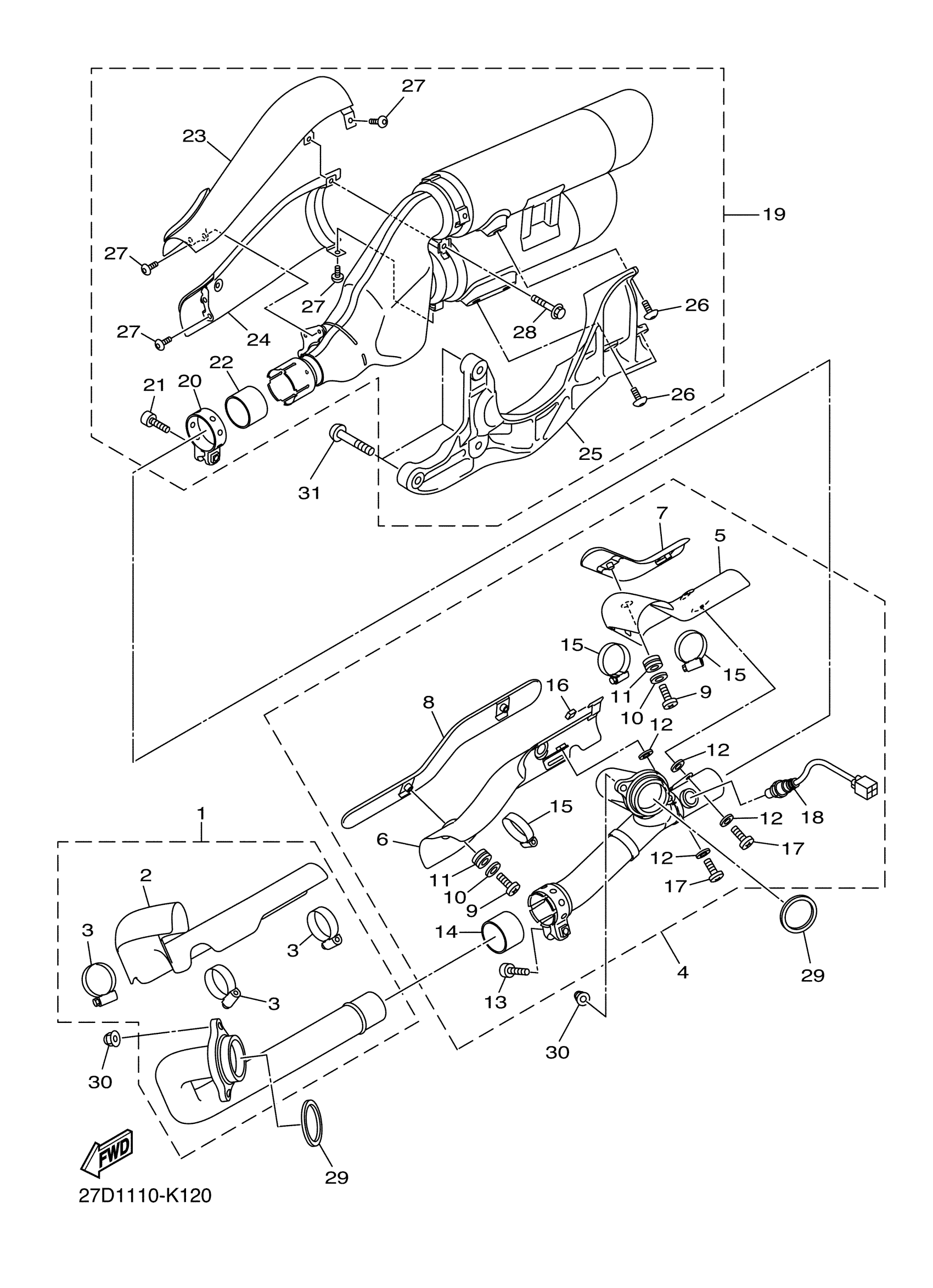

Find the part on the Exhaust diagram for your 2012 Yamaha Stryker (XVS13CBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Stryker (XVS13CBR) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSY 1

27D-14610-00-00

—
Out of stock

2

PROTECTOR, MUFFLER 1

27D-14718-00-00

—
Out of stock

3

HOSE CLAMP ASSY

90450-44001-00

1
Out of stock

4

EXHAUST PIPE ASSY 2

27D-14620-00-00

—
Out of stock

5

PROTECTOR, MUFFLER 2

27D-14728-00-00

1
Out of stock

6

PROTECTOR, MUFFLER 3

27D-14738-00-00

—
Out of stock

7

PROTECTOR, MUFFLER 4

3D8-14748-10-00

1
Out of stock

8

PROTECTOR, EXHAUST PIPE

3D8-14628-10-00

—
Out of stock

9

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

10

WASHER, PLATE(1JK)

90201-064K6-00

1

$6.29

In stock

11

GROMMET

90480-17005-00

1
Out of stock

12

WASHER, PLATE

90201-05015-00

1

$6.29

In stock

13

BOLT, SOCKET

91314-08035-00

1
Out of stock

14

GASKET, SILENCER

5PX-14755-00-00

1

$24.83

In stock

15

HOSE CLAMP ASSY

90450-44001-00

1
Out of stock

16

DAMPER, LOCATING 1

3MA-24181-00-00

—
Out of stock

17

SCREW, BIND (705)

98980-06016-00

—
Out of stock

18

SENSOR

5D1-8592A-00-00

—

$269.26

In stock

19

MUFFLER ASSY 1

27D-14710-01-00

—
Out of stock

20

BAND, MUFFLER

3D8-14715-00-00

—
Out of stock

21

BOLT, SOCKET

91314-08035-00

1
Out of stock

22

GASKET, MUFFLER

5VY-14714-00-00

—
Out of stock

23

PROTECTOR, SILENCER 2

27D-147A8-10-00

—
Out of stock

24

PROTECTOR, SILENCER

27D-14758-10-00

—
Out of stock

25

STAY, MUFFLER 2

27D-14772-00-00

—
Out of stock

26

BOLT,HEX. SOCKET BUTTON

90111-08043-00

—
Out of stock

27

BOLT, BUTTON HEAD

92014-06010-00

1

$5.28

In stock

28

BOLT, FLANGE

95817-06035-00

—

$5.37

In stock

29

GASKET, EXHAUST PIPE

3EG-14613-00-00

—

$20.15

In stock

30

NUT, CROWN

90176-08006-00

—

$2.89

In stock

31

BOLT,HEX. SOCKET BUTTON

90111-10032-00

—
Out of stock
