2012 Yamaha Stryker (XVS13CBR) Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 2012 Yamaha Stryker (XVS13CBR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

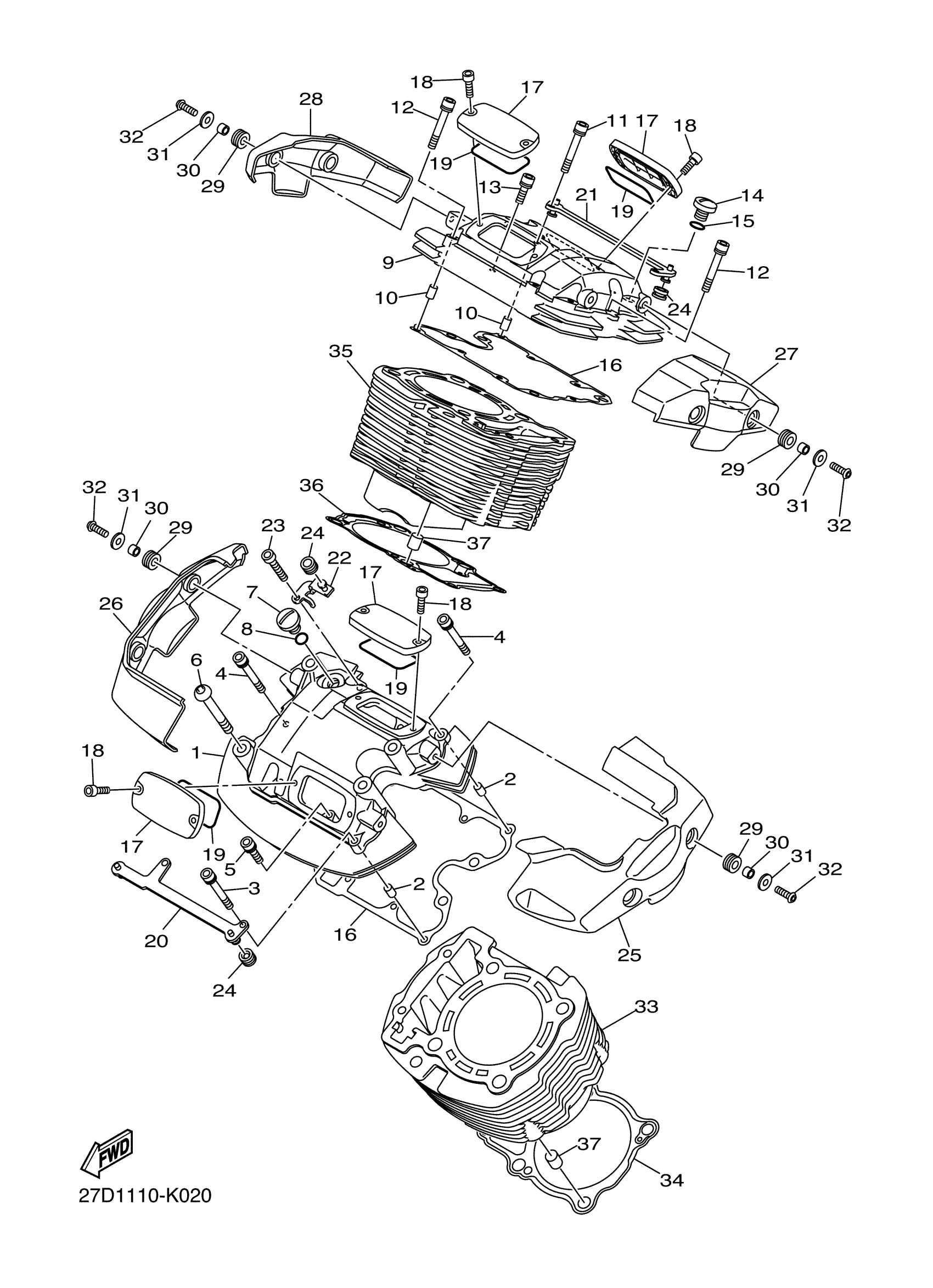

2012 Yamaha Stryker (XVS13CBR) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CYLINDER HEAD 1

3D8-11191-00-00

1
Out of stock

2

PIN, DOWEL(3XW)

91808-16023-00

1

$5.48

In stock

3

BOLT, HEXAGON SOCKET HEAD

90110-06269-00

—
Out of stock

4

BOLT, HEXAGON SOCKET HEAD

90110-06268-00

1
Out of stock

5

BOLT, HEXAGON SOCKET HEAD

90110-06267-00

1
Out of stock

6

BOLT,HEX. SOCKET BUTTON

90111-10053-00

—
Out of stock

7

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

1

$11.62

In stock

8

O-RING (2H9)

93210-14369-00

1

$5.80

In stock

9

COVER, CYLINDER HEAD 2

3D8-11192-00-00

—
Out of stock

10

PIN, DOWEL(3XW)

91808-16023-00

1

$5.48

In stock

11

BOLT, HEXAGON SOCKET HEAD

90110-06269-00

—
Out of stock

12

BOLT, HEXAGON SOCKET HEAD

90110-06268-00

1
Out of stock

13

BOLT, HEXAGON SOCKET HEAD

90110-06267-00

1
Out of stock

14

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

1

$11.62

In stock

15

O-RING (2H9)

93210-14369-00

1

$5.80

In stock

16

GASKET, HEAD COVER 1

3D8-11193-00-00

—
Out of stock

17

COVER, CYLINDER HEAD SIDE 2

27D-11186-00-00

—
Out of stock

18

BOLT,SOCKET HEAD

91314-06020-00

—

$2.05

In stock

19

GASKET, CYLINDER HEAD SIDE

3D8-11196-00-00

—
Out of stock

20

PLATE 2

3D8-1112F-01-00

—
Out of stock

21

PLATE 3

3D8-1113F-01-00

—
Out of stock

22

PLATE

27D-1111F-00-00

—
Out of stock

23

BOLT

91312-06050-00

—

$3.91

In stock

24

GROMMET (17J)

90480-10334-00

—

$6.89

In stock

25

COVER 1

27D-1111M-00-00

—
Out of stock

26

COVER 2

3D8-1111N-00-00

—
Out of stock

27

COVER 3

3D8-1111P-00-00

—
Out of stock

28

COVER 4

3D8-1111R-00-00

—
Out of stock

29

GROMMET

90480-13022-00

—

$6.26

In stock

30

COLLAR

90387-06207-00

—

$6.31

In stock

31

WASHER, PLATE

90201-06088-00

—

$6.26

In stock

32

BOLT

90111-06038-00

—

$3.45

In stock

33

CYLINDER 1

3D8-11311-00-00

—
Out of stock

34

GASKET, CYLINDER

3D8-11351-00-00

—
Out of stock

35

CYLINDER 2

3D8-11321-01-00

—
Out of stock

36

GASKET, CYLINDER 2

3D8-11352-00-00

—
Out of stock

37

PIN, DOWEL(3XW)

91808-16023-00

1

$5.48

In stock
