2007 Yamaha Roadliner CA (XV19WC) Starter Diagram

← All diagrams

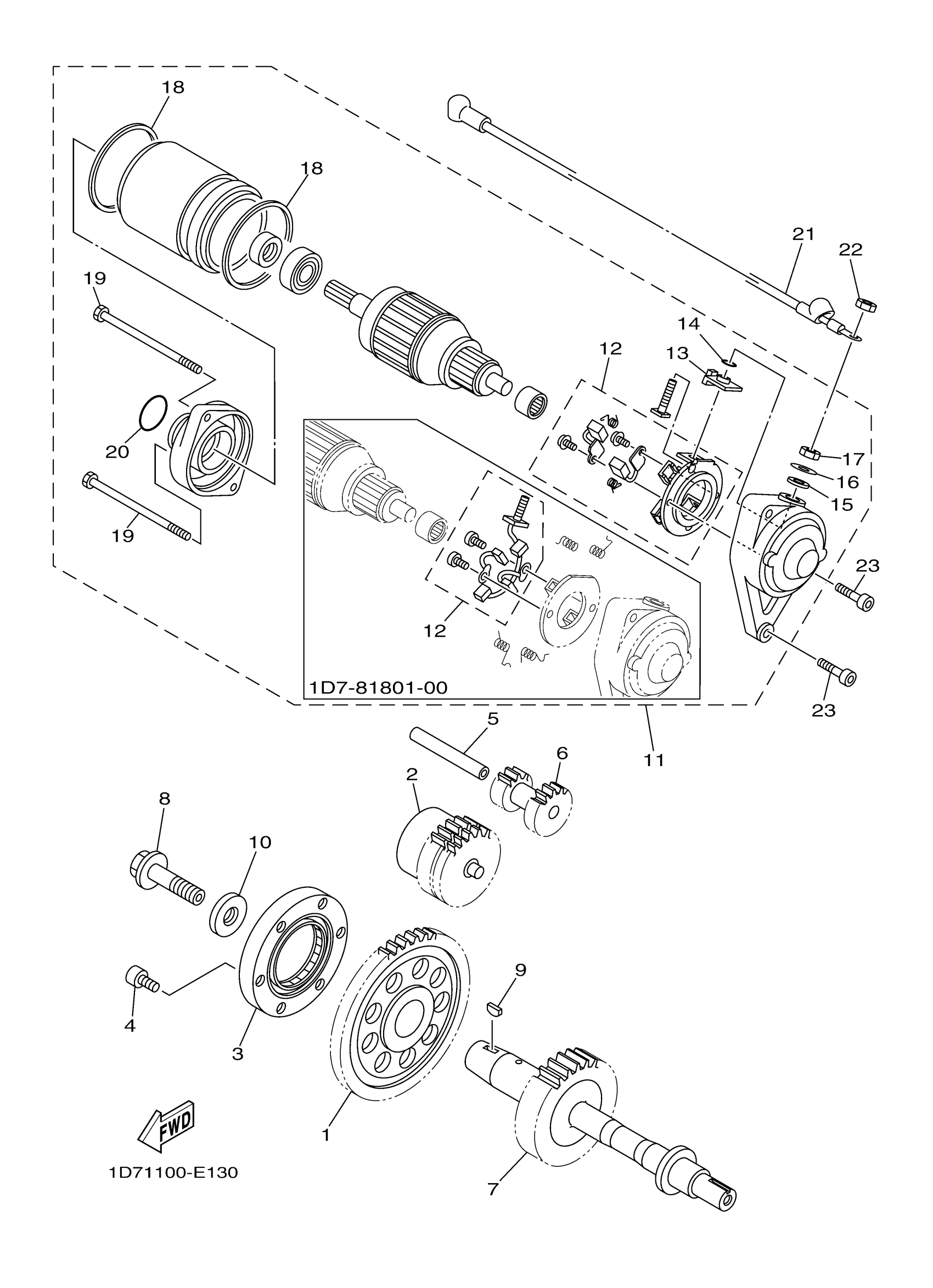

Find the part on the Starter diagram for your 2007 Yamaha Roadliner CA (XV19WC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Roadliner CA (XV19WC) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR 3

1D7-15515-00-00

1
Out of stock

2

DAMPER ASSY

1D7-15560-10-00

1
Out of stock

3

STARTER ONE-WAY ASSY

4WM-15590-00-00

1
Out of stock

4

BOLT, SOCKET

91317-08016-00

1
Out of stock

5

SHAFT 1

1D7-15521-00-00

—
Out of stock

6

GEAR, IDLER 1

1D7-15512-00-00

—
Out of stock

7

SHAFT

1D7-15659-00-00

—
Out of stock

8

BOLT, WASHER BASED

90105-12005-00

1
Out of stock

9

KEY, WOODRUFF

90280-05001-00

1
Out of stock

10

WASHER, PLATE

90201-12008-00

1
Out of stock

11

MOTOR ASSY

1D7-81890-01-00

1
Out of stock

11

MOTOR ASSY

1D7-81890-01-00

1
Out of stock

12

BRUSH SET

1D7-81801-00-00

1
Out of stock

12

BRUSH SET

2S3-81801-00-00

1
Out of stock

13

BUSH, TERMINAL

5PX-8182G-00-00

1
Out of stock

14

O-RING (26H)

93210-06632-00

—
Out of stock

15

WASHER, PLAIN

5PX-8181L-00-00

—
Out of stock

16

WASHER, PLATE (8H9)

90201-06726-00

—
Out of stock

17

NUT(650)

95380-06700-00

—
Out of stock

18

GASKET

1D7-81861-00-00

—
Out of stock

19

SCREW

5PX-81846-00-00

—
Out of stock

20

O-RING(1RL)

93210-25711-00

—
Out of stock

21

CORD COMP.

1D7-8183G-00-00

—
Out of stock

22

NUT(650)

95380-06700-00

—
Out of stock

23

BOLT,SOCKET HEAD

91314-06025-00

—
Out of stock
