2007 Yamaha Roadliner CA (XV19WC) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2007 Yamaha Roadliner CA (XV19WC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

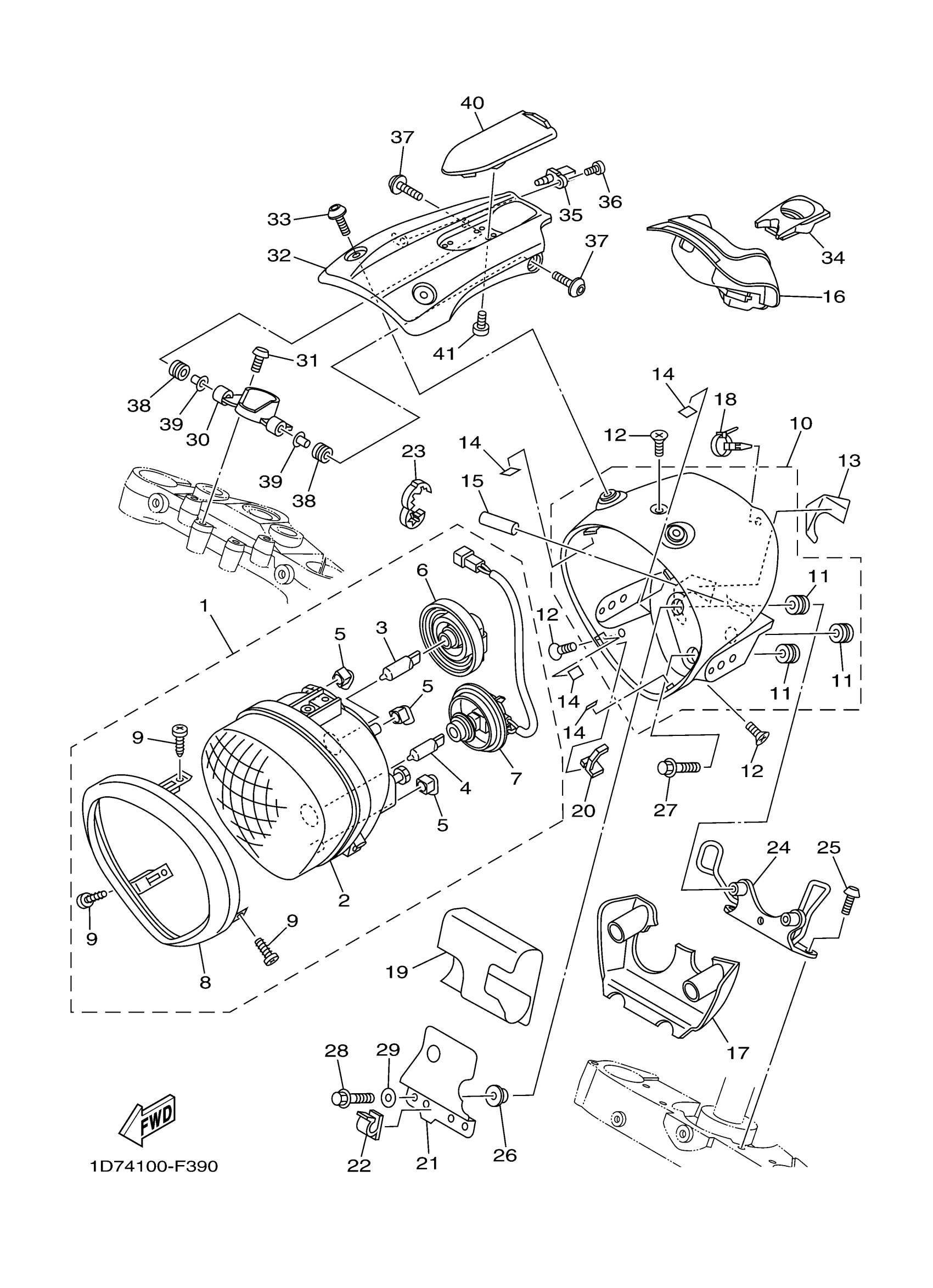

2007 Yamaha Roadliner CA (XV19WC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

1D7-84310-00-00

—
Out of stock

2

LENS ASSY

1D7-84320-00-00

—
Out of stock

3

BULB, HEADLIGHT

5YU-84314-00-00

—
Out of stock

4

BULB (12V-55W)

4SV-84314-00-00

1

$50.22

In stock

5

CAP,1

1D7-84385-00-00

—
Out of stock

6

COVER, SOCKET

5YU-84397-00-00

—
Out of stock

7

SOCKET CORD ASSY 1

1D7-84340-00-00

—
Out of stock

8

RIM, HEADLIGHT

1D7-84315-00-00

1
Out of stock

9

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

10

BODY ASSY

1D7-84330-01-00

—
Out of stock

11

DAMPER, HEADLIGHT 1

42X-84366-00-00

1

$18.66

In stock

12

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

13

PLATE, GUIDE

1D7-8413G-00-00

—
Out of stock

14

SEAL

5JW-23844-00-00

1

$7.51

In stock

15

HOSE

90446-09002-00

—
Out of stock

16

DAMPER, HEADLIGHT 1

1D7-84366-00-00

—
Out of stock

17

DAMPER, HEADLIGHT 2

1D7-84367-00-00

—
Out of stock

18

CLAMP

90464-07012-00

—
Out of stock

19

STAY SETTING

1D7-8412H-00-00

—
Out of stock

20

CLAMP

90465-04020-00

—
Out of stock

21

PLATE, STOPPER

1D7-8411H-00-00

—
Out of stock

22

CLAMP

90464-09009-00

—

$6.09

In stock

23

CLAMP

90464-13227-00

—

$6.92

In stock

24

STAY, HEADLIGHT 2

1D7-84119-00-00

—
Out of stock

25

BOLT

90111-06046-00

—

$5.26

In stock

26

COLLAR

90387-06175-00

—

$6.65

In stock

27

BOLT, SMALL FLANGE

95027-06025-00

—

$3.18

In stock

28

BOLT, FLANGE

95022-06016-00

—

$3.32

In stock

29

WASHER, PLATE

90201-06086-00

—
Out of stock

30

STAY, HEADLIGHT 1

1D7-84118-00-00

—
Out of stock

31

BOLT, BUTTON

92014-08016-00

—

$6.68

In stock

32

COVER, HEADLIGHT

1D7-84144-00-00

—
Out of stock

33

BOLT

90111-06030-00

—

$3.23

In stock

34

MOLE 2

1D7-28346-00-00

—
Out of stock

35

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

—

$29.26

In stock

36

SCREW, PAN HEAD

98507-05014-00

—

$6.18

In stock

37

SCREW(4DN)

90149-06302-00

—

$4.29

In stock

38

GROMMET

90480-12007-00

—

$6.25

In stock

39

SPACER (4F2)

90560-06201-00

—
Out of stock

40

COVER, MAIN SWITCH

1D7-82568-00-00

—
Out of stock

41

BOLT, SOCKET

91317-04010-00

—

$6.68

In stock
