2007 Yamaha Roadliner CA (XV19WC) Meter Diagram

← All diagrams

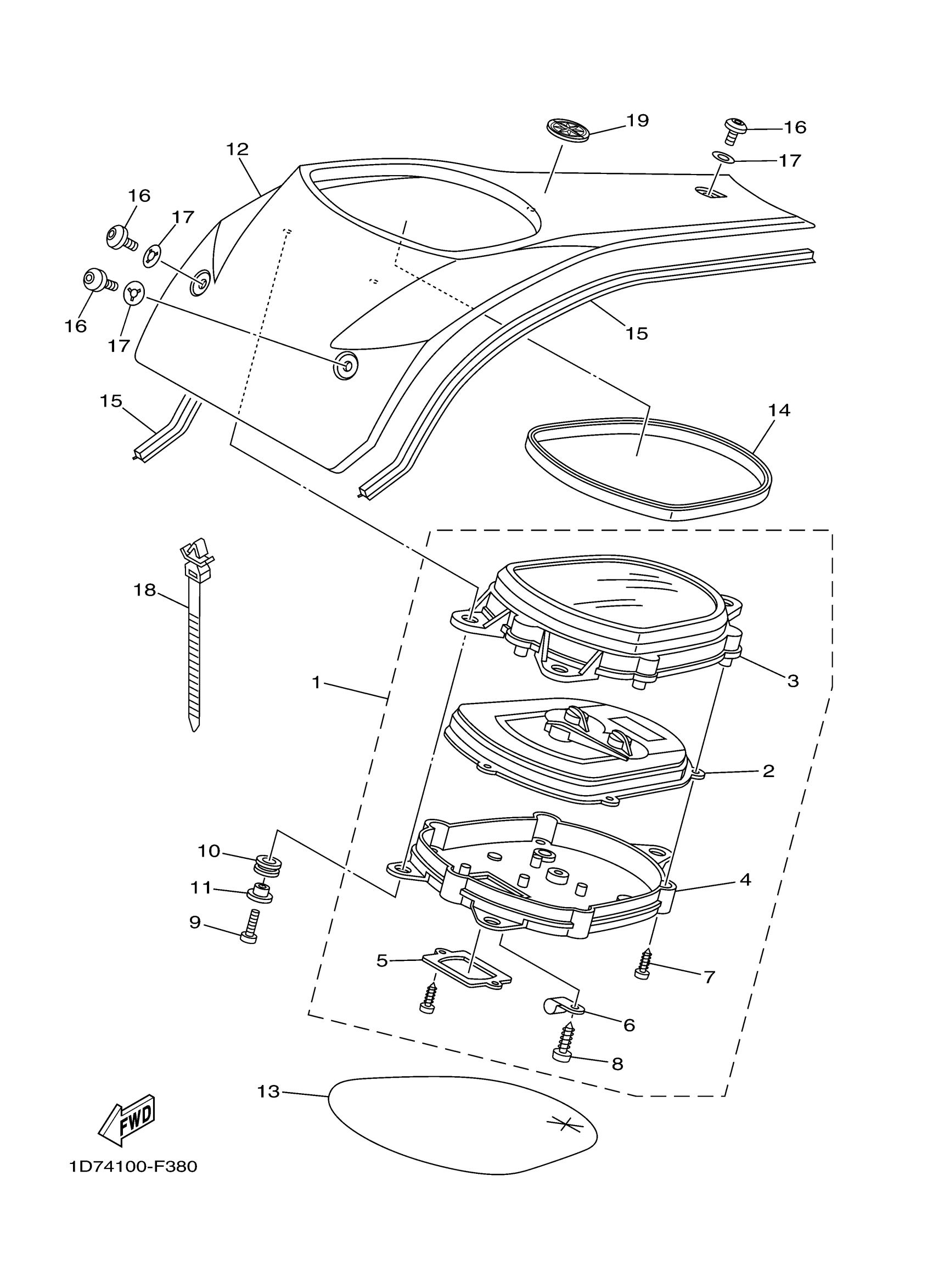

Find the part on the Meter diagram for your 2007 Yamaha Roadliner CA (XV19WC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Roadliner CA (XV19WC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY

1D7-83500-22-00

1
Out of stock

2

SPEEDOMETER ASSY

1D7-83510-22-00

1
Out of stock

3

CASE, METER UPPER

1D7-8353E-00-00

1
Out of stock

4

CASE, SPEEDOMETER LOWER

1D7-83572-00-00

—
Out of stock

5

BRACKET, METER

4WM-83519-00-00

1
Out of stock

6

CLAMP

5EL-8357E-00-00

1
Out of stock

7

SCREW, TAPPING

4AS-83616-10-00

—

$2.15

In stock

8

. SCREW, TAPPING

90164-06023-00

1
Out of stock

9

SCREW, PAN HEAD(JJ6)

98507-05016-00

1

$1.40

In stock

10

DAMPER

4WM-83513-00-00

1

$6.52

In stock

11

COLLAR(82M)

90387-050T5-00

1
Out of stock

12

COVER, METER

1D7-83559-10-00

—
Out of stock

13

DAMPER

1D7-83513-00-00

—
Out of stock

14

MOLE 3

1D7-28347-00-00

—
Out of stock

15

MOLE 1

1D7-28345-00-00

1
Out of stock

16

SCREW(1XL)

90149-06264-00

—
Out of stock

17

PLATE

4U5-2176E-00-00

—
Out of stock

18

CLAMP(2TV)

90464-10112-00

—

$6.18

In stock

19

EMBLEM 3D

1D7-8359B-00-00

—
Out of stock
