1984 Yamaha Virago 1000 CA (XV1000LC) Taillight Diagram

← All diagrams

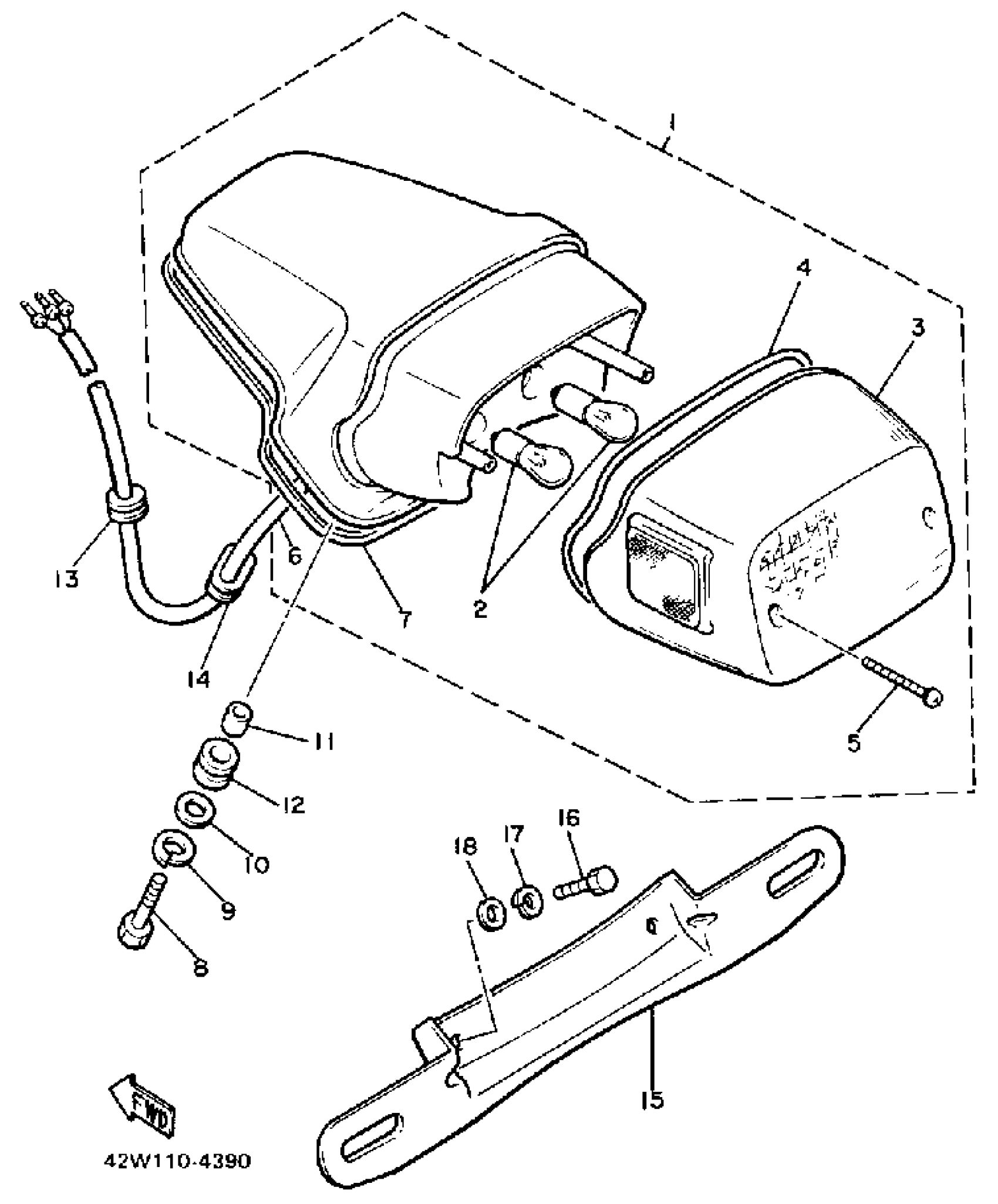

Find the part on the Taillight diagram for your 1984 Yamaha Virago 1000 CA (XV1000LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha Virago 1000 CA (XV1000LC) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT ASSEMBLY

42X-84700-60-00

1
Out of stock

2

1

$10.02

In stock

3

LENS, TAILLIGHT

42X-84721-61-00

1
Out of stock

4

SEAL

1VJ-14462-00-00

1

$16.08

In stock

5

SCREW, TAPPING(7G6)

97780-40525-00

1

$5.84

In stock

6

CORD,TAILLIGHT

461-84517-00-00

1
Out of stock

7

. GASKET, TAILLIGHT

42X-84704-00-00

1
Out of stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

11

COLLAR

90387-06144-00

1

$5.28

In stock

12

GROMET (3X3)

90480-14229-00

1

$6.17

In stock

13

GROMMET(2UJ)

90480-16501-00

1

$5.37

In stock

14

GROMMET (438)

90480-15061-00

1

$6.68

In stock

15

BRACKET, LICENSE

42X-84751-00-00

1
Out of stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock
