1984 Yamaha Virago 1000 CA (XV1000LC) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1984 Yamaha Virago 1000 CA (XV1000LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

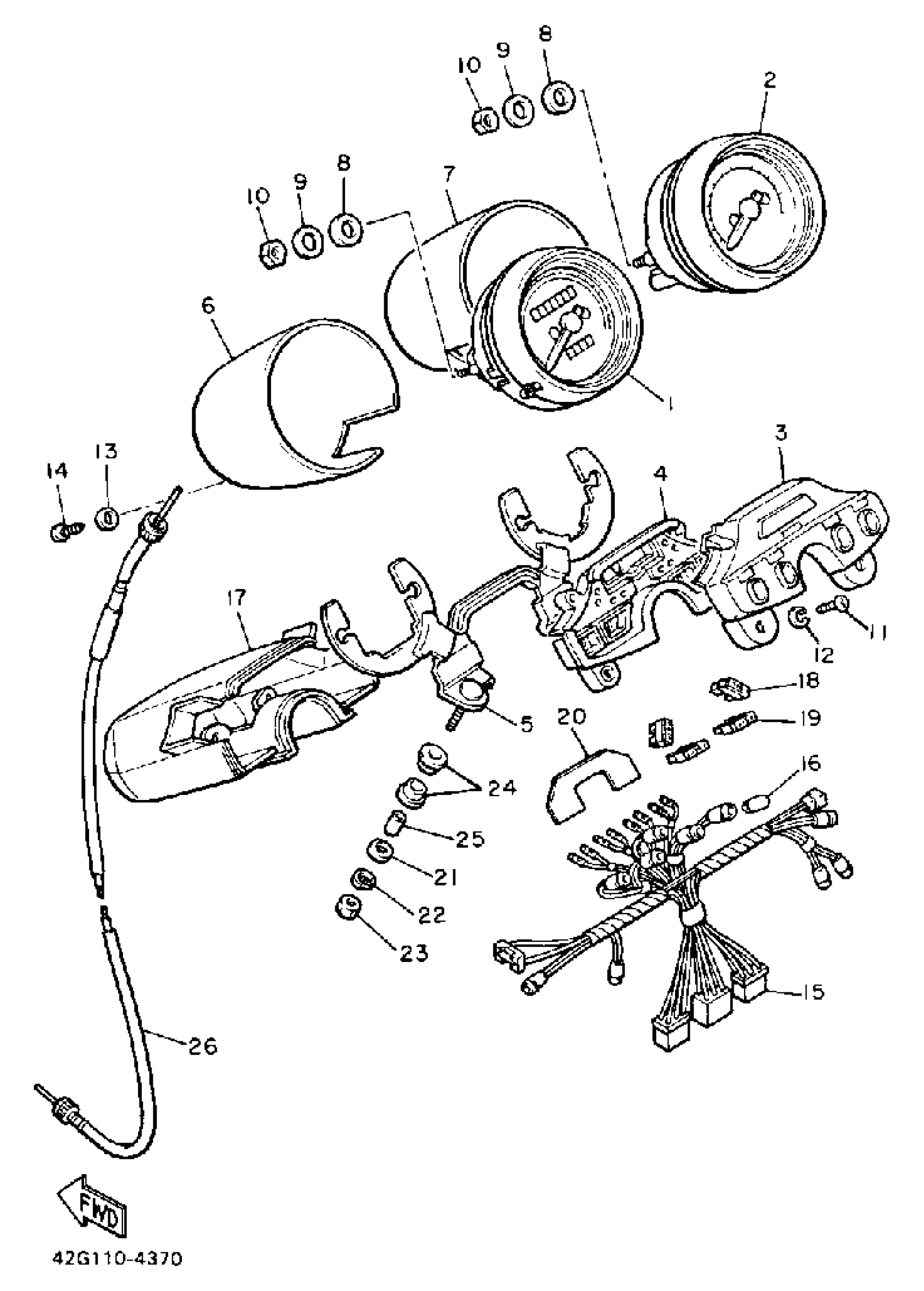

1984 Yamaha Virago 1000 CA (XV1000LC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASY

3LP-83570-00-00

1
Out of stock

2

TACHOMETER ASY

1AT-83540-09-00

1
Out of stock

3

CASE UPPER

42X-8353G-00-00

1
Out of stock

4

CASE, INNER

1AA-8353H-00-00

1
Out of stock

5

BRACKET, METER

42X-83519-00-00

1
Out of stock

6

COVER, SPEEDOMETER

42X-83507-00-00

—
Out of stock

7

COVER, TACHOMETER

42X-83508-00-00

1
Out of stock

8

DAMPER

1FG-83523-00-00

—

$8.82

In stock

9

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

10

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

11

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

12

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

13

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

14

SCREW, TAPPING (10M)

90164-04009-00

1
Out of stock

15

SOCKET CORD ASSEMBLY

42H-83509-00-00

1
Out of stock

16

BULB (T6.5 12V-3W)

42X-83517-00-00

—

$6.48

In stock

17

COVER, METER

42X-83559-00-00

1
Out of stock

18

FUSE (10A)

42X-82151-00-00

—

$2.16

In stock

19

FUSE (12V 15A)

36Y-82151-00-00

—

$4.08

In stock

20

COVER, METER 2

55R-83579-00-00

1
Out of stock

21

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

22

WASHER, SPRING

92907-06100-00

—
Out of stock

23

NUT(6TA)

95317-06600-00

—

$2.69

In stock

24

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

25

COLLAR (877)

90387-06249-00

—
Out of stock

26

SPEEDOMETER CABLE ASSY

3LP-83550-00-00

—
Out of stock
