1984 Yamaha Virago 1000 CA (XV1000LC) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1984 Yamaha Virago 1000 CA (XV1000LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

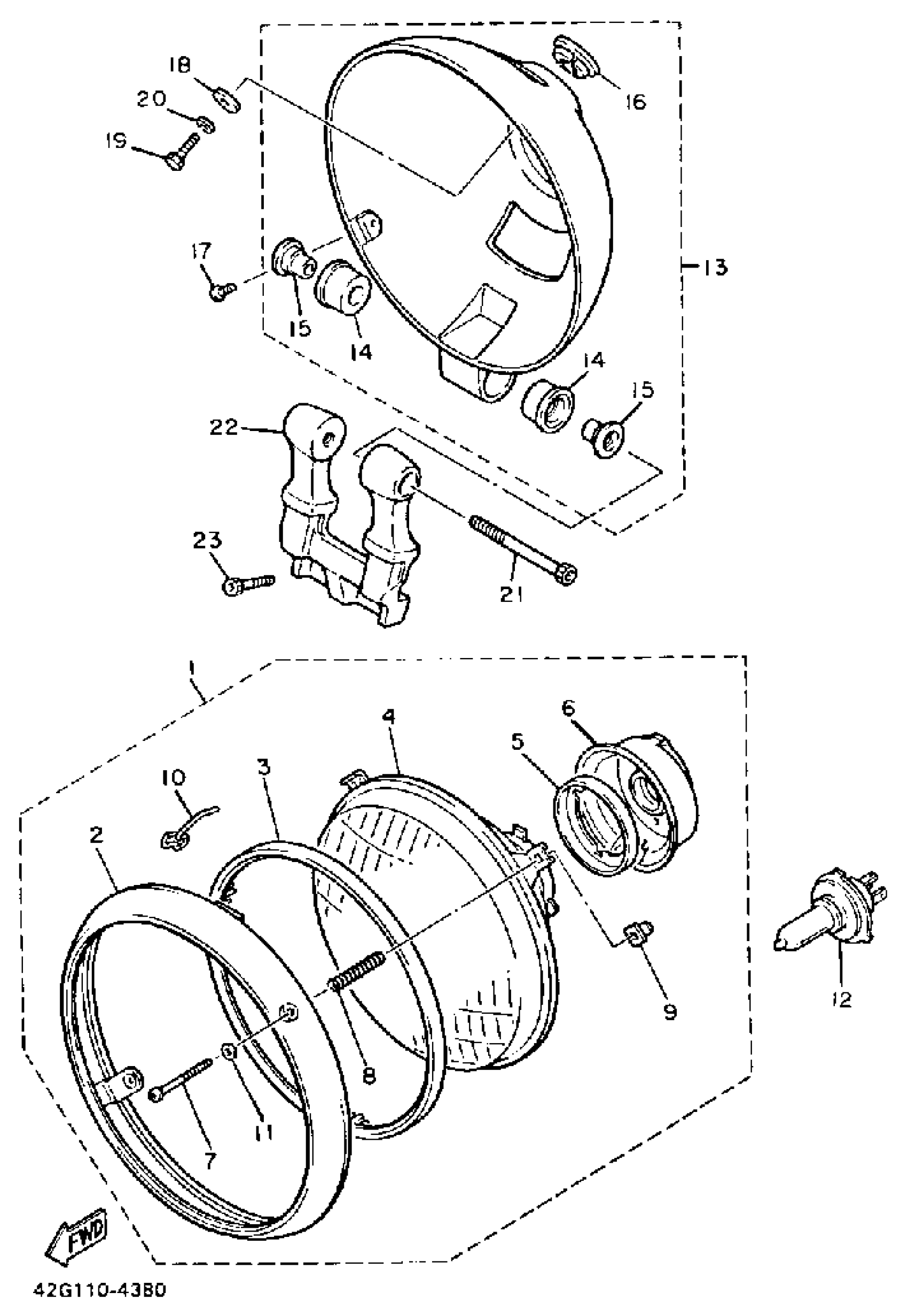

1984 Yamaha Virago 1000 CA (XV1000LC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

3

RING, RETAINING

5Y3-84395-00-00

—

$47.86

In stock

4

LENS, HEADLIGHT

42X-84321-A0-00

1

$116.37

In stock

5

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

6

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

7

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

8

SPRING, COMPRESSION (ITALY)

447-84332-60-00

1

$9.22

In stock

9

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

10

SPRING, REFLECTOR SET

1M1-84124-60-00

1

$7.51

In stock

11

WASHER,SPECIAL

233-84127-60-00

1

$2.78

In stock

12

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

13

BODY SET

42X-W8431-00-00

1
Out of stock

14

DAMPER, HEADLIGHT

42X-84345-00-00

1

$4.98

In stock

15

. COLLAR BODY FITTING

42X-84338-00-00

1
Out of stock

16

DAMPER, HEADLIGHT 1

42X-84366-00-00

1

$18.66

In stock

17

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

18

WASHER, PLATE

90201-06086-00

—
Out of stock

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

BOLT, SOCKET

91317-08055-00

—

$3.62

In stock

22

STAY,HEADLIGHT 1

99999-03057-00

1
Out of stock

23

BOLT,SOCKET HEAD

91314-06020-00

—

$2.05

In stock
