1986 Yamaha XT600 CA (XT600SC) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1986 Yamaha XT600 CA (XT600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

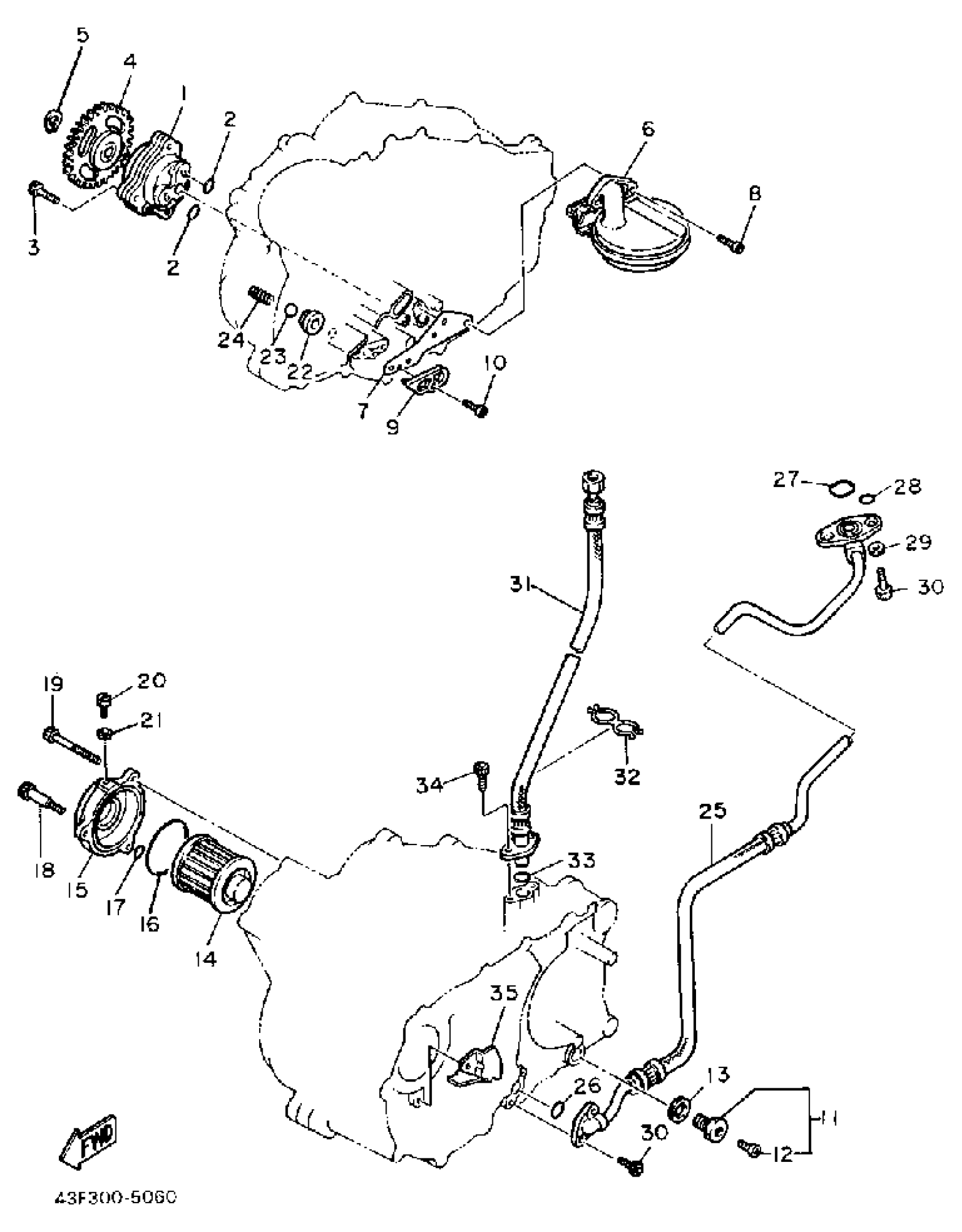

1986 Yamaha XT600 CA (XT600SC) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP KIT (3AJ)

99999-01858-00

1
Out of stock

2

O-RING (2H7)

93210-13361-00

1
Out of stock

3

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

4

OIL PUMP GEAR KIT

99999-01925-00

1
Out of stock

5

CIRCLIP(24H)

99009-11400-00

1

$6.17

In stock

6

STRAINER ASSY.

5Y1-Y134C-00-00

1
Out of stock

7

SEAL, OIL STRAINER

4DW-13415-00-00

—

$9.75

In stock

8

SCREW, PAN

98507-06014-00

1

$6.18

In stock

9

COVER, CAP 2

5Y1-15427-10-00

—
Out of stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

1

$2.65

In stock

12

SCREW, BIND(2TV)

98980-06008-00

1

$0.58

In stock

13

GASKET

214-11198-01-00

1

$2.66

In stock

14

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

1

$12.82

In stock

15

COVER, OIL ELEMENT

583-13447-01-00

1

$24.32

In stock

16

O-RING (583 OIL CLEANER)

93210-64297-00

—
Out of stock

17

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

—
Out of stock

18

BOLT (583 OIL DRAIN)

90109-06419-00

—

$6.17

In stock

19

BOLT,SOCKET

91317-06080-00

—

$3.78

In stock

20

SCREW (583)

90149-05110-00

—

$6.88

In stock

21

GASKET

90430-05126-00

1
Out of stock

22

SEAT, CHECK BALL

583-13113-00-00

—
Out of stock

23

BALL

93503-08007-00

—

$2.35

In stock

24

SPRING (583 OIL CLEANER)

90501-05378-00

—
Out of stock

25

HOSE, OIL 1

2KF-13464-00-00

1
Out of stock

26

O-RING (371)

93210-10197-00

—
Out of stock

27

O-RING

93210-22298-00

—

$6.57

In stock

28

O-RING (1J7)

93210-09350-00

—

$5.82

In stock

29

GASKET (4V2)

90430-06166-00

—

$3.45

In stock

30

BOLT,SOCKET

91317-06016-00

—

$1.16

In stock

31

HOSE, OIL 2

43F-13465-00-00

1
Out of stock

32

CLAMP (34K)

90464-20064-00

—

$3.66

In stock

33

O-RING (341)

93210-15171-00

—
Out of stock

34

BOLT,SOCKET

91317-06016-00

—

$1.16

In stock

35

PLATE

5Y1-13371-00-00

1
Out of stock
