1986 Yamaha XT600 CA (XT600SC) Cylinder Head Diagram

← All diagrams

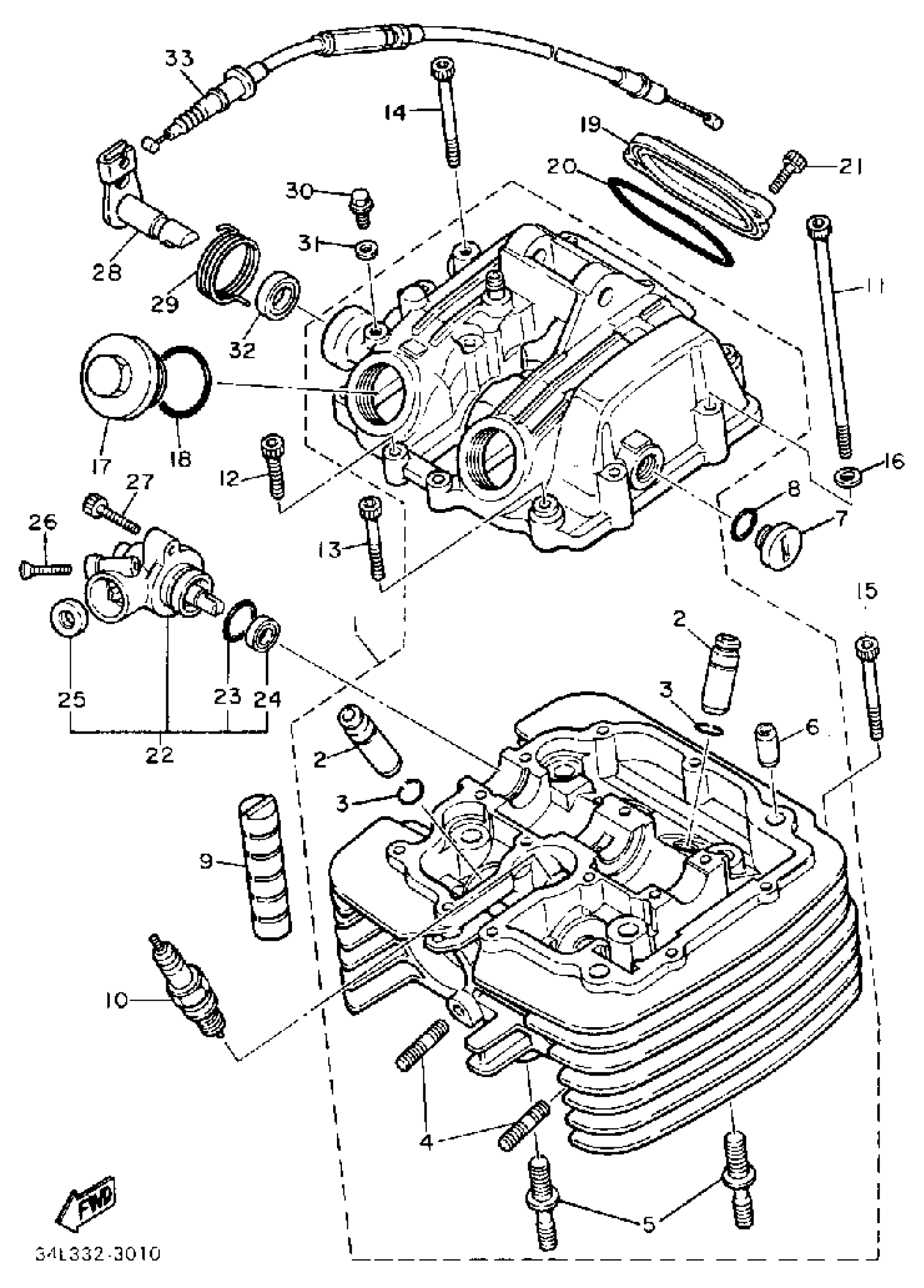

Find the part on the Cylinder Head diagram for your 1986 Yamaha XT600 CA (XT600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha XT600 CA (XT600SC) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSEMBLY

(1WN-11101-00-00)

1
Out of stock

2

GUIDE, INTAKE VALVE

4H7-11133-11-00

1

$65.20

In stock

3

CIRCLIP (1L9)

93440-12052-00

1

$1.75

In stock

4

BOLT, STUD(1JK)

90116-06475-00

1

$6.85

In stock

5

. BOLT, STUD

90116-10378-00

1
Out of stock

6

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

7

—

$16.62

In stock

8

O-RING (2H9)

93210-14369-00

1

$5.80

In stock

9

ABSORBER

583-11127-00-00

1

$6.72

In stock

10

DP8EA9 NGK SPLUG 10PK

DP8-EA900-00-00

1
Out of stock

11

BOLT, SOCKET

91317-06125-00

1

$16.22

In stock

12

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

13

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

14

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

15

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

16

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

17

PLUG, VIEWER

1H2-11186-00-00

—

$37.15

In stock

18

O-RING (341)

93210-32172-00

—

$5.78

In stock

19

COVER, CYLINDER HEAD SIDE 3

5Y1-11187-00-00

—
Out of stock

20

O-RING (4X7)

93210-62446-00

—

$10.23

In stock

21

BOLT,SOCKET

91317-06018-00

—

$6.17

In stock

22

GEAR UNIT ASSY, TACHO. DRIVE

3YF-17800-00-00

1
Out of stock

23

O-RING (5Y1)

93210-19522-00

—

$5.86

In stock

24

OIL SEAL (5Y1)

93102-11262-00

—
Out of stock

25

OIL SEAL (5Y1)

93102-07261-00

—
Out of stock

26

SCREW, FLAT

98707-06030-00

—

$6.08

In stock

27

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

28

CAM, DECOMPRESSION

1JK-12288-00-00

1
Out of stock

29

SPRING, TORSION (5Y1)

90508-18551-00

—
Out of stock

30

BOLT (583 TACHOMETER)

90109-06418-00

—
Out of stock

31

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

32

SEAL, OIL (30X)

93102-12321-00

—

$10.14

In stock

33

CABLE, DECOMPRESSION

2KF-12292-00-00

—
Out of stock
