1986 Yamaha XT600 CA (XT600SC) Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1986 Yamaha XT600 CA (XT600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

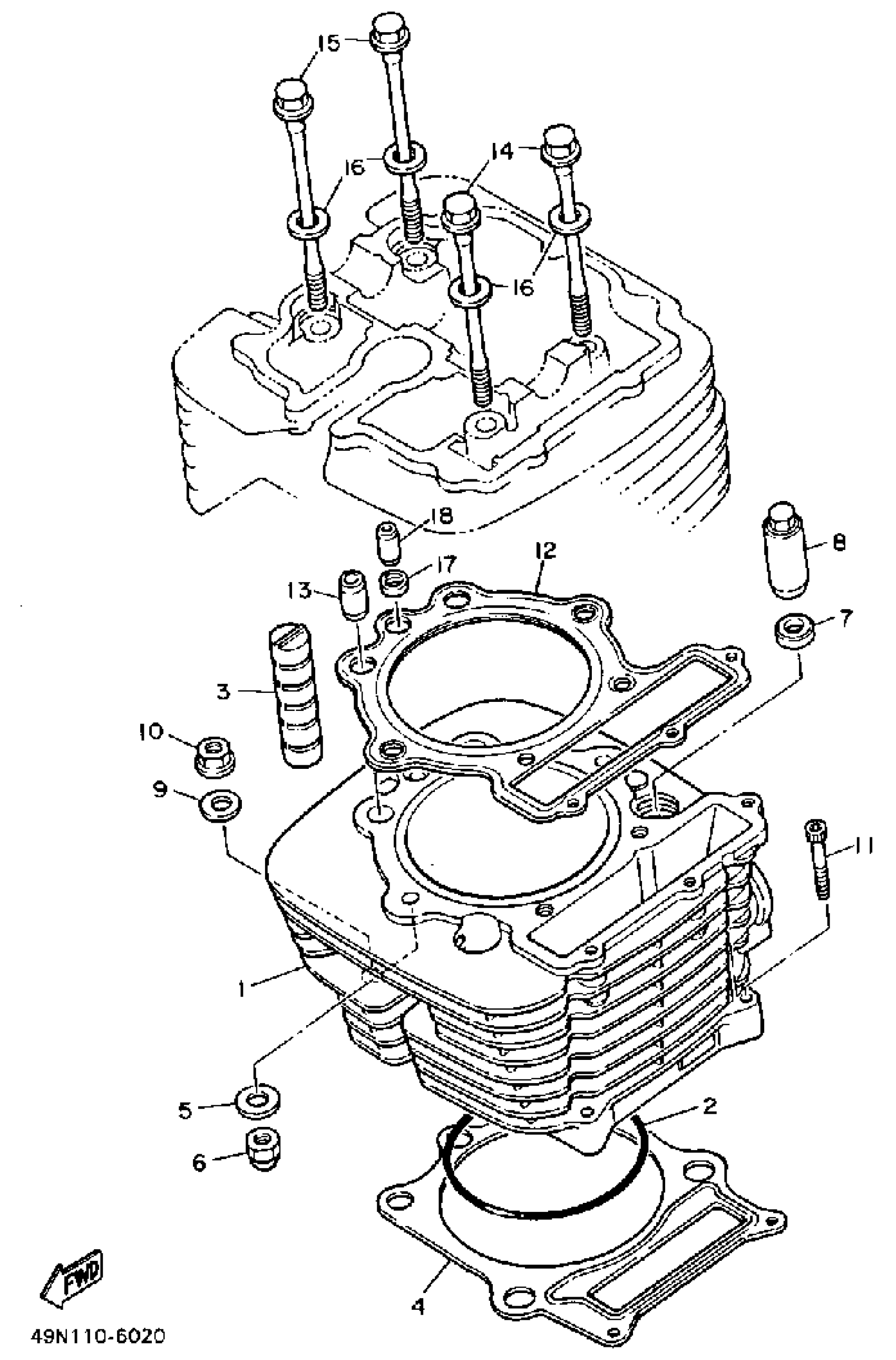

1986 Yamaha XT600 CA (XT600SC) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER.KIT (STUD BOLT)

99999-01824-00

1
Out of stock

2

O-RING (5Y1)

93210-97524-00

1

$14.69

In stock

3

ABSORBER

583-11127-00-00

1

$6.72

In stock

4

GASKET, CYLINDER

1VJ-11351-00-00

—

$24.63

In stock

5

WASHER, PLATE(3LN)

90201-086M0-00

1

$6.86

In stock

6

NUT, CROWN (4G0)

90176-08026-00

1

$11.63

In stock

7

WASHER, PLATE (583)

90201-10590-00

1

$4.95

In stock

8

NUT

90179-10021-00

1

$21.54

In stock

9

WASHER, PLATE 3711117500

90201-10124-00

1

$6.58

In stock

10

NUT (2Y5)

90179-10279-00

1

$6.09

In stock

11

1

$3.82

In stock

12

GASKET, CYLINDER HEAD

1JK-11181-02-00

—

$113.03

In stock

13

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

14

BOLT, WASHER BASED

90105-08464-00

1
Out of stock

15

BOLT,WASHER BASED

90105-08465-00

1
Out of stock

16

WASHER, PLATE

90201-080L7-00

—

$3.42

In stock

17

GASKET (5Y1)

90430-08178-00

—

$4.83

In stock

18

PIN, DOWEL(3XW)

91808-16023-00

—

$5.48

In stock
