1986 Yamaha XT600 CA (XT600SC) Crankshaft - Piston Diagram

← All diagrams

Find the part on the Crankshaft - Piston diagram for your 1986 Yamaha XT600 CA (XT600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

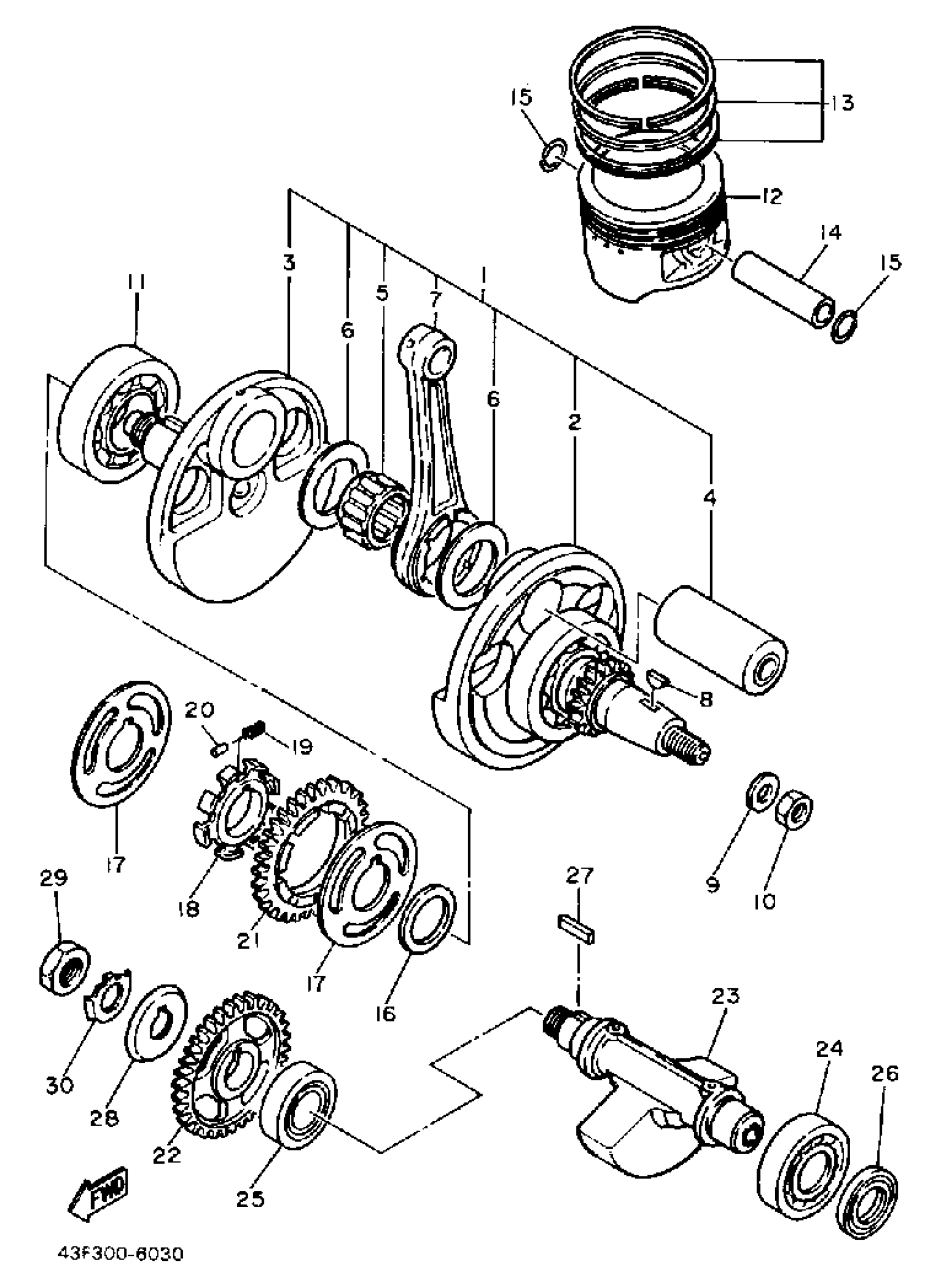

1986 Yamaha XT600 CA (XT600SC) Crankshaft - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

34K-11400-00-00

1
Out of stock

2

. CRANK 1

34K-W1141-00-00

1
Out of stock

3

. CRANK 2

34K-11422-00-00

1
Out of stock

4

. PIN, CRANK 1

34K-11681-00-00

1
Out of stock

5

BEARING

93310-6340F-00

1
Out of stock

6

WASHER(24V)

90209-34254-00

1
Out of stock

7

ROD, CONNECTING

34K-11651-00-00

—
Out of stock

8

KEY, WOODRUFF

90280-05001-00

1

$10.68

In stock

9

WASHER, PLATE

90201-140A6-00

1
Out of stock

10

NUT

90179-14317-00

1

$18.28

In stock

11

BEARING (3GV)

93306-30702-00

1

$69.32

In stock

12

PISTON (STD)

34L-11631-02-Y0

1
Out of stock

12

PISTON (2ND O/S)

34L-11636-02-00

1
Out of stock

12

PISTON 4 O/S 1.00

34L-11638-02-00

1
Out of stock

13

PISTON RING SET

34L-11610-00-00

1

$60.79

In stock

13

—

$58.60

In stock

13

PISTON RING SET

34L-11610-40-00

—

$36.43

In stock

14

PIN, PISTON

1JK-11633-01-00

—

$63.80

In stock

15

CIRCLIP 256116340000

93450-24028-00

—

$4.07

In stock

16

WASHER, PLATE (5Y1)

90201-301F4-00

—
Out of stock

17

WASHER, BEARING COVER

34K-11565-02-00

1
Out of stock

18

BOSS, BUFFER

5Y1-11496-01-00

1
Out of stock

19

SPRING, COMPRESSION (5Y1)

90501-22721-00

—

$8.02

In stock

20

PIN, DOWEL

93605-10090-00

—

$5.41

In stock

21

GEAR, DRIVE

2JT-11536-00-00

1
Out of stock

22

GEAR, BALANCE WT 44T

5Y1-11531-00-00

1
Out of stock

23

WEIGHT 1

34K-11454-00-00

1
Out of stock

24

BEARING

93306-20509-00

1

$27.45

In stock

25

BEARING(3RR)

93306-30560-00

—

$71.07

In stock

26

OIL SEAL (5Y1)

93101-25106-00

—
Out of stock

27

KEY, STRAIGHT(34K)

90282-05065-00

—

$8.80

In stock

28

PLATE, BREATHER 2

34K-11145-00-00

1
Out of stock

29

NUT(24V)

90170-16343-00

—

$13.22

In stock

30

WASHER, LOCK(24V)

90215-16242-00

—

$6.45

In stock
