1990 Yamaha XT600E CA (XT600EAC) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

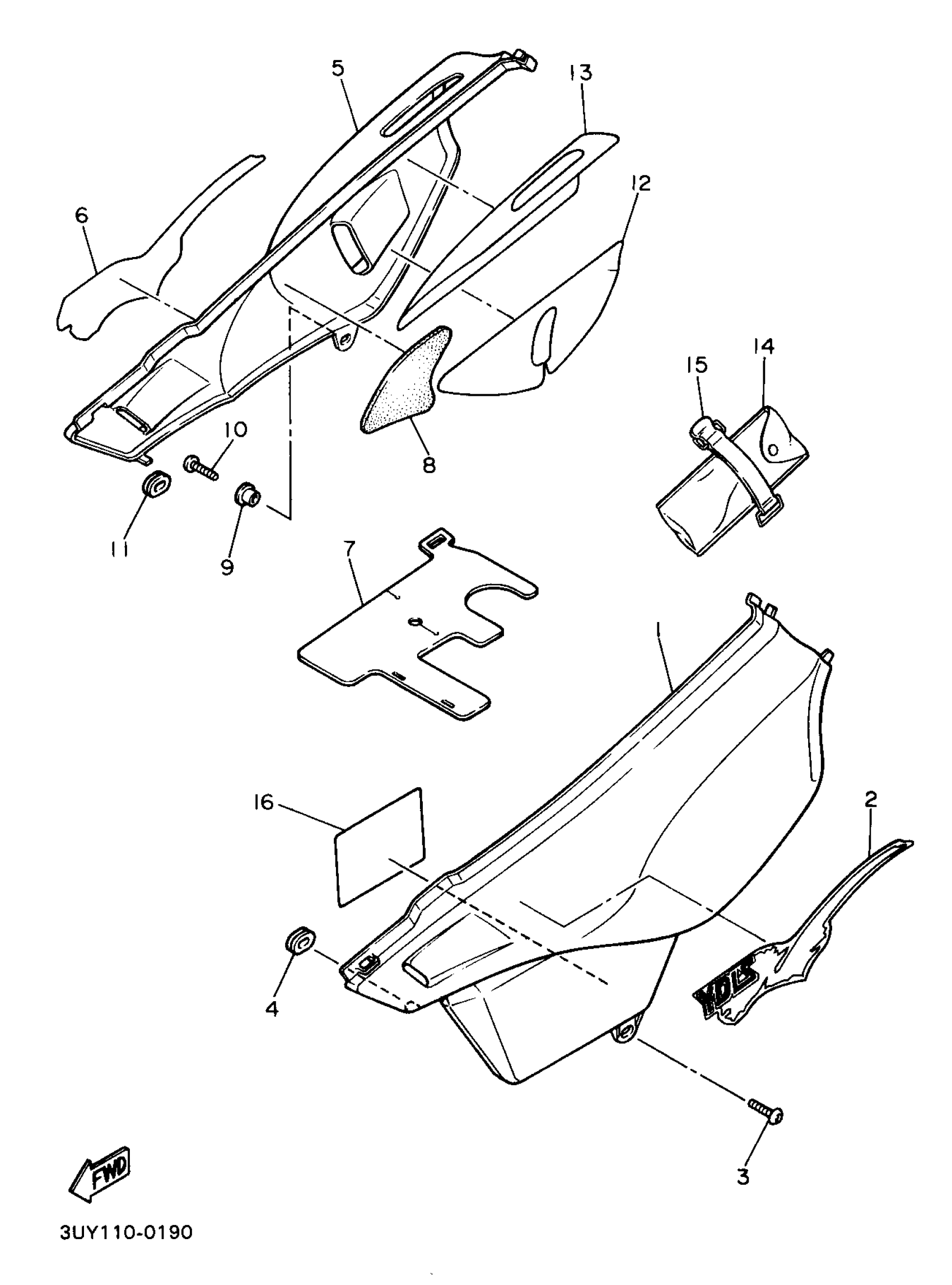

1990 Yamaha XT600E CA (XT600EAC) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3TB-21711-00-00

1
Out of stock

2

GRAPHIC 1 (STRONG BLUE)

3TB-2173E-00-00

1
Out of stock

3

SCREW(1KH)

90149-06223-00

1

$7.22

In stock

4

GROMMET (583 SIDE COVER)

90480-01176-00

1

$9.15

In stock

5

COVER, SIDE 2

3TB-21721-00-00

1
Out of stock

6

GRAPHIC 2 (STRONG BLUE)

3TB-2173F-00-00

1
Out of stock

7

COVER

3TB-2177F-00-00

1
Out of stock

8

DAMPER 2

3TB-21542-00-00

1
Out of stock

9

COLLAR(3FC)

90387-061V4-00

1

$6.28

In stock

10

SCREW(1KH)

90149-06223-00

1

$7.22

In stock

11

GROMMET (583 SIDE COVER)

90480-01176-00

1

$9.15

In stock

12

INSULATOR, SIDE COVER

3TB-2174A-00-00

1
Out of stock

13

INSULATOR, SIDE COVER

3TB-2174A-10-00

1
Out of stock

14

TOOL KIT

1LN-W2810-01-00

1
Out of stock

15

BAND, TOOL

46X-21376-00-00

—
Out of stock

16

PLATE, EPA CAL2

3UY-2179R-01-00

1
Out of stock

16

PLATE EPA U49

3UY-2179V-01-00

1
Out of stock
