1990 Yamaha XT600E CA (XT600EAC) Cowling 1 Diagram

← All diagrams

Find the part on the Cowling 1 diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

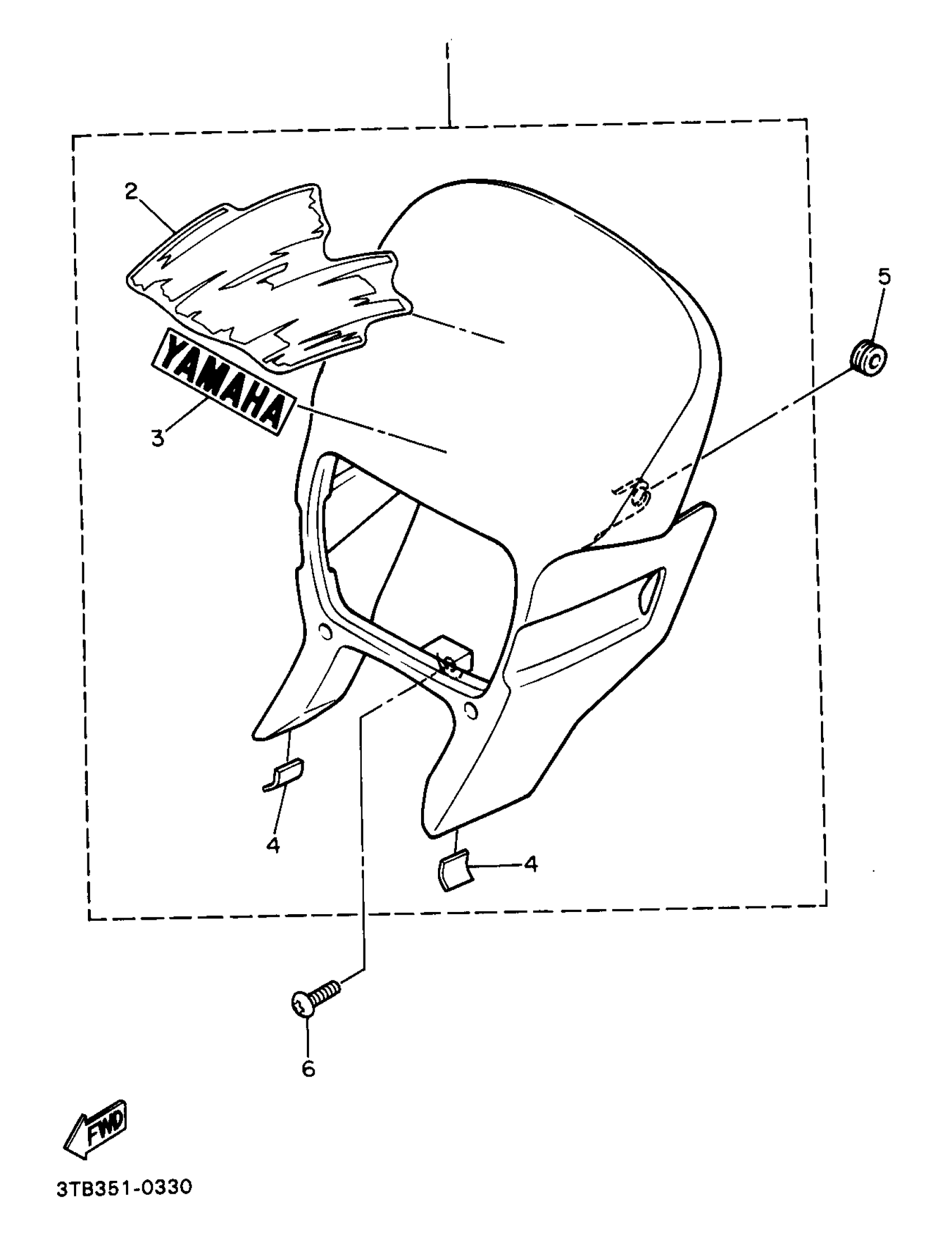

1990 Yamaha XT600E CA (XT600EAC) Cowling 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, COWLING (HEADLIGHT)

3TB-W2834-00-00

1
Out of stock

2

. GRAPHIC 1 (STRONG BLUE)

3TB-28391-00-00

1
Out of stock

3

EMBLEM, YAMAHA

99246-00100-00

1

$15.42

In stock

4

DAMPER 1

3TB-28217-00-00

1

$3.95

In stock

5

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

6

SCREW(2XF)

90149-06263-00

1
Out of stock
