1990 Yamaha XT600E CA (XT600EAC) Frame Diagram

← All diagrams

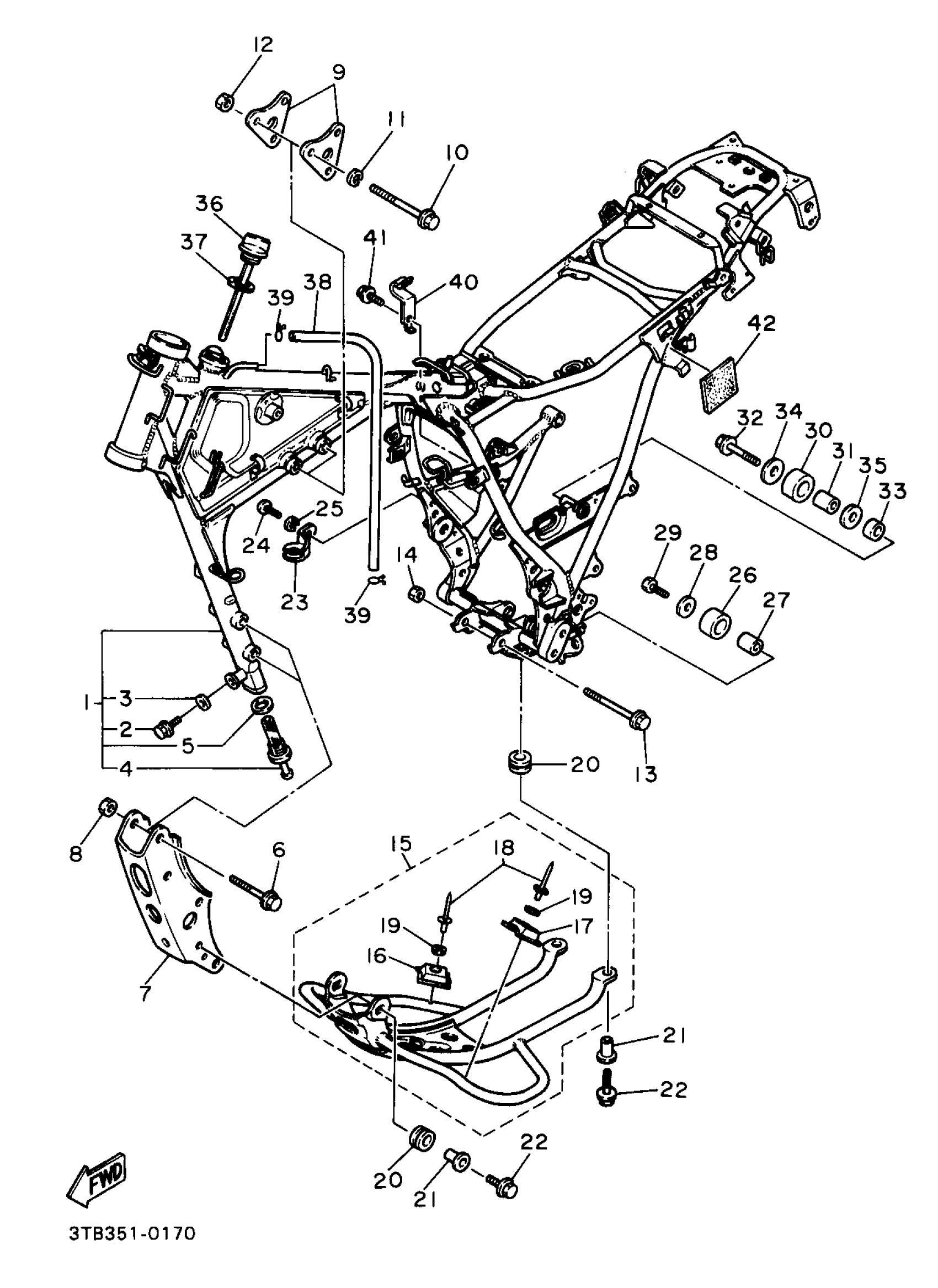

Find the part on the Frame diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XT600E CA (XT600EAC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP

3TB-21110-00-WL

1
Out of stock

2

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

3

WASHER, PLATE 3411117500

90201-08087-00

1

$3.13

In stock

4

NET, FILTER

3TB-21756-00-00

—

$55.55

In stock

5

GASKET (583 OIL TANK)

90430-22123-00

1

$8.06

In stock

6

BOLT, WASHER BASED (39E)

90105-10286-00

1

$6.03

In stock

7

STAY, ENGINE 3

3TB-21316-00-WL

—

$49.98

In stock

8

NUT, SELF-LOCKING

90185-10157-00

1
Out of stock

9

STAY, ENGINE 2

34L-21315-00-00

1
Out of stock

10

BOLT, WASHER BASED(65J)

90105-10M75-00

1

$6.14

In stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

NUT, SELF-LOCKING

90185-10157-00

1
Out of stock

13

BOLT, FLANGE(4MY)

95817-10100-00

1
Out of stock

14

NUT, SELF-LOCKING

90185-10157-00

1
Out of stock

15

PROTECTOR, ENGINE

3TB-W2147-00-WL

1
Out of stock

16

DAMPER, RUBBER 1

34K-21485-00-00

1
Out of stock

17

DAMPER 2

34K-21486-00-00

1
Out of stock

18

RIVET,BLIND

90267-40080-00

1
Out of stock

19

WASHER, PLATE(26H)

90201-044H9-00

—

$6.68

In stock

20

GROMMET (29L)

90480-15363-00

—

$6.17

In stock

21

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

22

BOLT, FLANGE

95822-06025-00

—

$1.46

In stock

23

BRACKET, STOP SWITCH

5Y1-21441-00-00

1
Out of stock

24

SCREW, PAN

98517-06012-00

—

$3.14

In stock

25

WASHER, SPRING

92907-06100-00

—
Out of stock

26

TENSIONER

3TB-22178-00-00

—

$22.17

In stock

27

BUSH

4V4-22184-00-00

—

$3.57

In stock

28

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

29

BOLT, FLANGE (3JPE)

95024-08016-00

—
Out of stock

30

TENSIONER

30X-22178-00-00

—
Out of stock

31

BUSH

4V4-22184-00-00

—

$3.57

In stock

32

BOLT (23X)

90109-08705-00

—

$12.78

In stock

33

WASHER, PLATE(3RR)

90201-133P2-00

—

$6.85

In stock

34

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

35

COLLAR (7R4)

90387-085E1-00

—

$5.37

In stock

36

BODY, CAP

3TB-21771-00-00

—

$28.28

In stock

37

GASKET (583 OIL TANK CAP)

90430-27124-00

—
Out of stock

38

HOSE

90445-115G3-00

1
Out of stock

39

CLIP

90467-100A1-00

—
Out of stock

40

CLAMP

3TB-21338-00-00

1
Out of stock

41

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock

42

DAMPER 1

3TB-28415-01-00

1
Out of stock
