1990 Yamaha XT600E CA (XT600EAC) Rear Wheel Diagram

← All diagrams

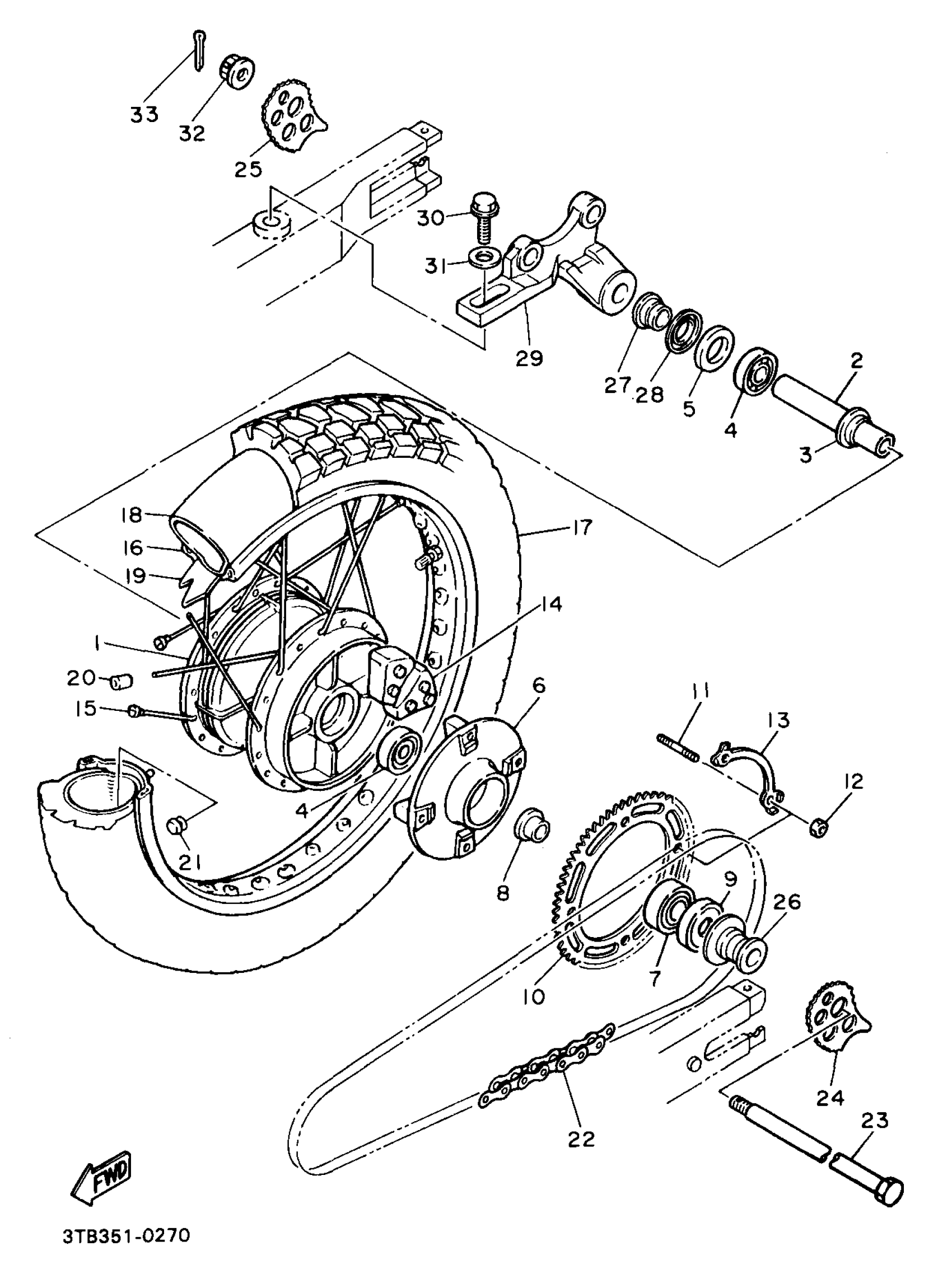

Find the part on the Rear Wheel diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XT600E CA (XT600EAC) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

2KF-25311-00-98

1
Out of stock

2

COLLAR(1FN)

90387-173M5-00

—
Out of stock

3

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

4

1

$31.64

In stock

5

OIL SEAL(36R)

93102-25311-00

—

$11.75

In stock

6

CLUTCH, HUB

1VJ-25366-01-98

1
Out of stock

7

BEARING(3BC)

93306-30437-00

1

$55.54

In stock

8

COLLAR, WHEEL

1VJ-25377-00-00

1
Out of stock

9

OIL SEAL(3BC)

93106-30029-00

1

$12.66

In stock

10

SPROCKET, DRIVEN (45T)

4DN-25445-30-00

—

$40.14

In stock

11

BOLT, STUD (4G0)

90116-10348-00

1
Out of stock

12

NUT

90170-10011-00

1

$6.29

In stock

13

WASHER

5Y1-25412-00-00

—
Out of stock

14

DAMPER

5Y1-25364-00-00

1

$23.69

In stock

15

SPOKE SET, REAR

3TB-25304-00-00

—

$89.15

In stock

16

RIM (2.50-17)

94425-17491-00

1
Out of stock

17

TIRE (MCS 120/90-17 64S TW42B)

94112-173X2-00

1
Out of stock

18

TUBE (MCS 120/90-17 TR-4)

94212-17264-00

1
Out of stock

19

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

—
Out of stock

20

BALANCER, WHEEL

3HT-25398-00-00

—

$6.89

In stock

21

PLUG (10V)

90338-09130-00

—

$5.62

In stock

22

CHAIN

9Y581-08105-00

—

$195.46

In stock

23

AXLE, WHEEL

3AJ-25381-00-00

1
Out of stock

24

PULLER, CHAIN 1

3Y1-25388-01-00

—

$22.83

In stock

25

PULLER, CHAIN 2

3Y1-25389-00-00

—

$24.14

In stock

26

COLLAR, WHEEL

1VJ-25383-00-00

1
Out of stock

27

COLLAR (5X4)

90387-174F0-00

—

$11.06

In stock

28

COVER, HUB DUST

36R-25367-00-00

—

$8.31

In stock

29

BRACKET, CALIPER

2KF-25819-00-00

1
Out of stock

30

BOLT, FLANGE

95817-10030-00

—

$6.17

In stock

31

WASHER, PLATE(3BM)

90201-105R9-00

—
Out of stock

32

NUT, CASTLE (2H6)

90171-16024-00

—

$21.74

In stock

33

PIN, COTTER

91490-30030-00

—

$7.15

In stock
