1990 Yamaha XT600E CA (XT600EAC) Front Fork Diagram

← All diagrams

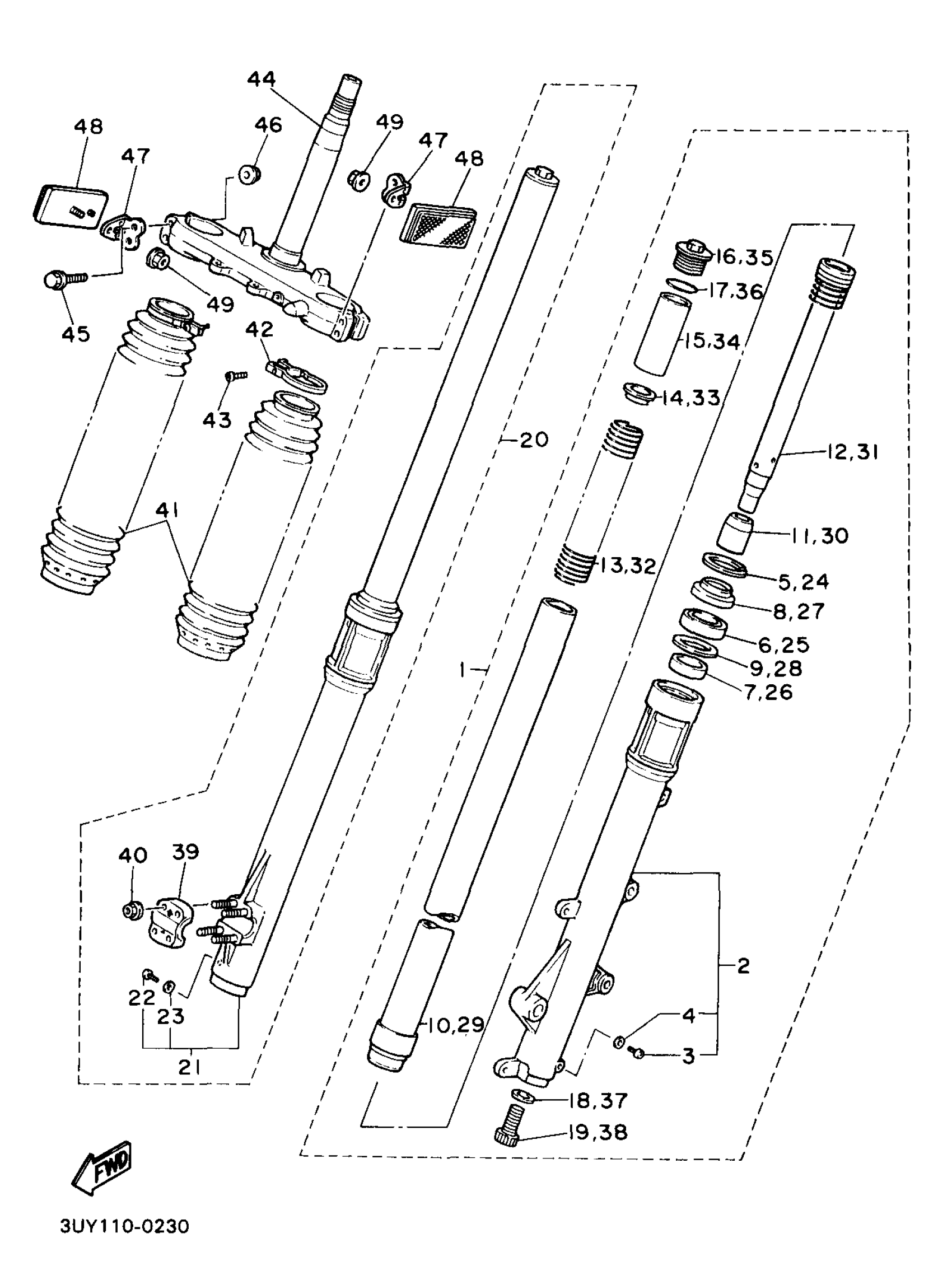

Find the part on the Front Fork diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XT600E CA (XT600EAC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY (L.H)

3TB-23102-00-00

1
Out of stock

2

. TUBE, OUTER 1

3TB-23126-00-00

1
Out of stock

3

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

4

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

5

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

6

OIL SEAL

43F-23145-10-00

1

$27.57

In stock

7

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

8

SEAL, DUST

43F-23144-10-00

1

$21.22

In stock

9

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

10

. INNER TUBE COMP 1

3TB-23110-00-00

1
Out of stock

11

SPINDLE, TAPER

3GM-23173-00-00

—
Out of stock

12

. CYLINDER COMP, FRONT FORK

3TB-23170-00-00

1
Out of stock

13

. SPRING, FRONT FORK

3TB-23141-00-00

1
Out of stock

14

. SEAT, SPRING UPPER

43F-23142-10-00

1
Out of stock

15

SPACER

3FW-23118-00-00

1

$18.18

In stock

16

BOLT, CAP

1D0-23111-00-00

—

$43.83

In stock

17

O-RING

43F-23188-10-00

—

$6.43

In stock

18

GASKET

4V4-23158-L0-00

—
Out of stock

19

BOLT

4V4-23181-L0-00

—
Out of stock

20

FRONT FORK ASSEMBLY (R.H)

3TB-23103-00-00

1
Out of stock

21

. TUBE, OUTER 2

3TB-23136-00-00

1
Out of stock

22

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

23

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

24

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

25

OIL SEAL

43F-23145-10-00

1

$27.57

In stock

26

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

27

SEAL, DUST

43F-23144-10-00

1

$21.22

In stock

28

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

29

. INNER TUBE COMP 1

3TB-23110-00-00

1
Out of stock

30

SPINDLE, TAPER

3GM-23173-00-00

—
Out of stock

31

. CYLINDER COMP, FRONT FORK

3TB-23170-00-00

1
Out of stock

32

. SPRING, FRONT FORK

3TB-23141-00-00

1
Out of stock

33

. SEAT, SPRING UPPER

43F-23142-10-00

1
Out of stock

34

SPACER

3FW-23118-00-00

1

$18.18

In stock

35

BOLT, CAP

1D0-23111-00-00

—

$43.83

In stock

36

O-RING

43F-23188-10-00

—

$6.43

In stock

37

GASKET

4V4-23158-L0-00

—
Out of stock

38

BOLT

4V4-23181-L0-00

—
Out of stock

39

HOLDER, AXLE

4V2-23167-L0-00

—
Out of stock

40

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

41

BOOT,FRONT FORK

2KF-23191-11-00

1
Out of stock

42

BAND

43M-23192-L0-00

—
Out of stock

43

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

44

UNDER BRACKET COMP.

3TB-23340-00-00

1
Out of stock

45

BOLT, FLANGE

95817-08055-00

—

$2.82

In stock

46

NUT, FLANGE

95704-08500-00

—
Out of stock

47

BRACKET, REFLECTOR 1

49R-85112-00-00

—

$19.26

In stock

48

FRONT REFLECTOR ASSY

23V-85110-00-00

—

$21.52

In stock

49

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock
